SOFTWARE CONFIGURATION
3. Now save them, overwriting the cloned application job
.

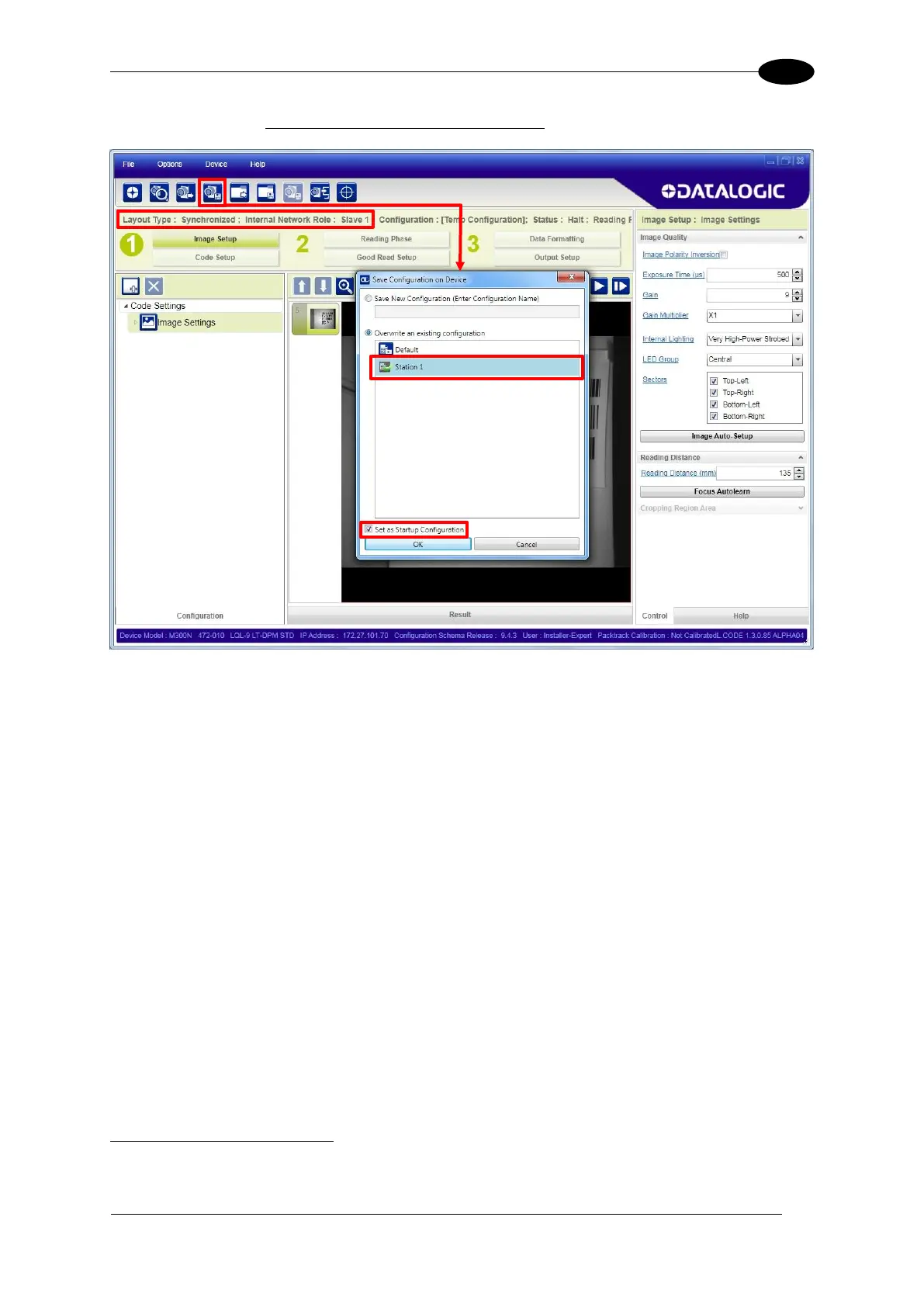

Figure 85 – Saving Synchronized Phase Mode Configuration to Slave
Repeat this procedure for each Slave device until the entire network is configured.
See par. 5.6 for an example Synchronized ID-NET configuration.
An application job with the same name as the Master’s has been cloned to the Slaves. Each Slave can have its own Image
Setup parameters saved in its own copy of the application job. Common parameters managed by the Master such as Operating
Mode cannot be modified in the Slave jobs and are shown in grey.
