RAPID CONFIGURATION
Starting from DL.CODE 1.4.0, serial port communication is supported for device discovery
and configuration. This allows dedicated Matrix 210N USB communication models to be
configured through DL.CODE.
This feature is not enabled by default, so the first thing to do is to enable it through the UI
Settings window.

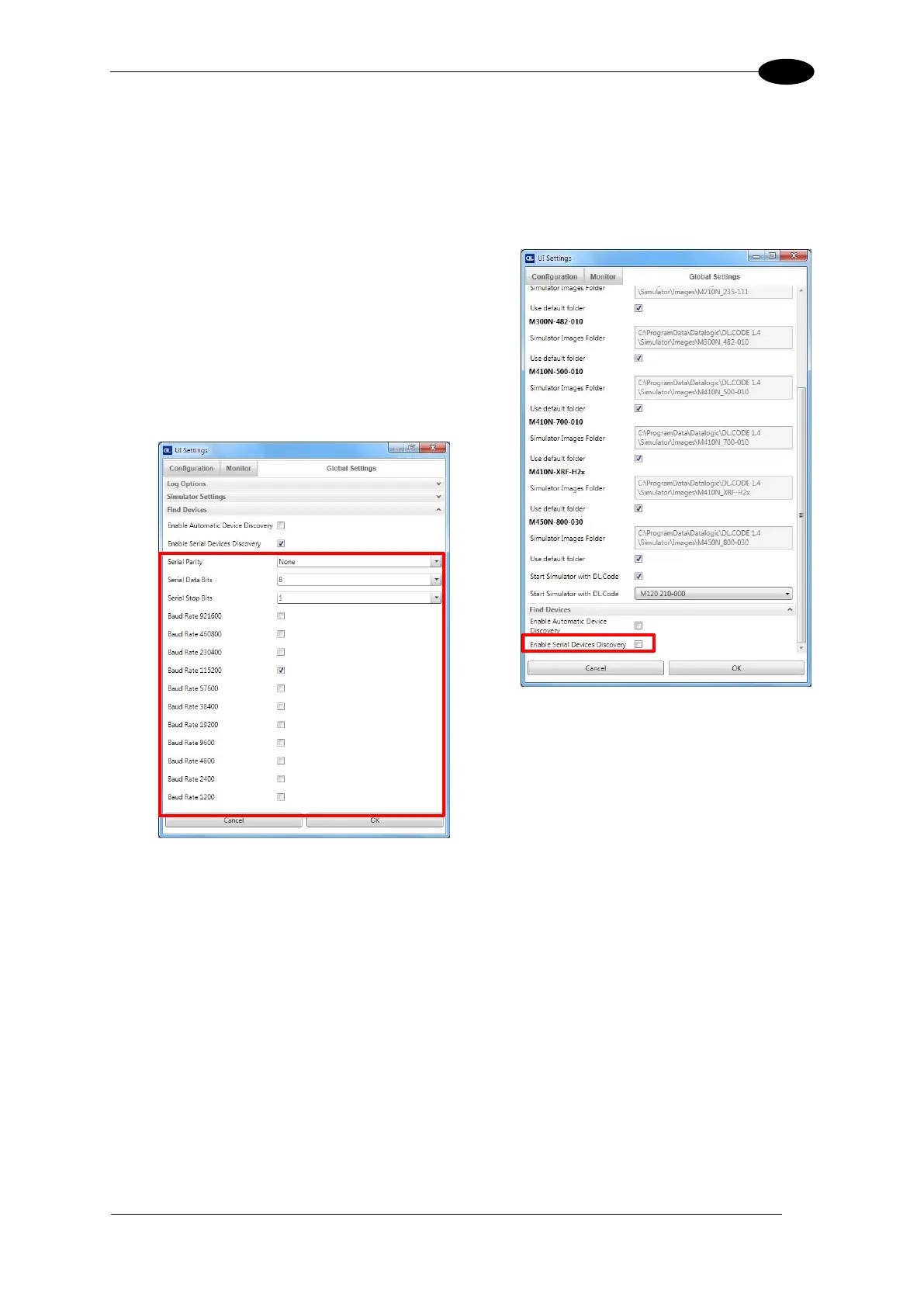

1. From the main menu open the Options>UI
Settings window.
2. Click on the Global Settings menu and scroll
down to the Find Devices tab.
3. Check the Enable Serial Device Discovery
box. Scroll down to see the following selections.
4. For Matrix 210N USB models the baud rate is
fixed at 115200. Select 115200.
5. Click OK to return to DL.CODE and click on the Getting Started icon.
