RAPID CONFIGURATION
Image Setup for Fixed Focus Models
NOTE: For Software Adjustable Focus models go to page 21 then continue
with Code Setup on page 30.
To begin configuration, the reader must be correctly mounted at the correct reading distance
for your application so that its Field of View covers the application reading area.

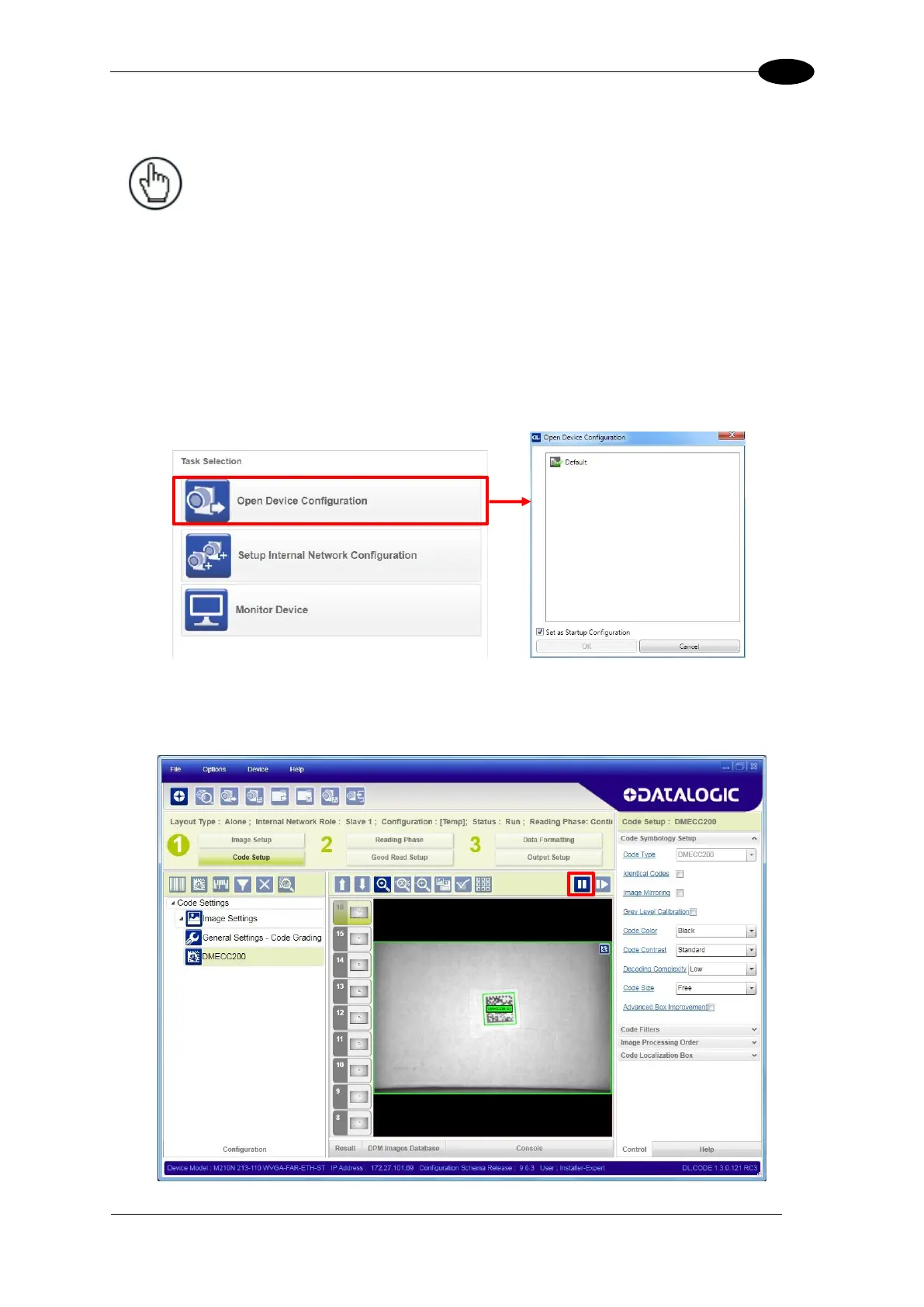

1. From the Task Area select Open Device Configuration.
2. The Open Device Configuration window opens showing the list of currently saved
configurations (jobs) saved on the device. For new devices, the only saved job is the
Default configuration. Click OK. The device enters run mode and begins acquiring
images.
3. Place an application specific code in the reading area. Once positioned, stop image
acquisition by clicking on the Pause button. If a Data Matrix code is placed in front of the
reader you may also see the green good decoding box imposed on the display image.
