CBX ELECTRICAL CONNECTIONS
69
4
EXTERNAL TRIGGER INPUT CONNECTIONS USING MATRIX 210N POWER
CAUTION: Power from the Vdc/GND spring clamps is available directly to
the Input Device on the +V/-V spring clamps, and does not pass through the
Power Switch (ON/OFF) inside the CBX. Disconnect the power supply when
working inside the CBX.

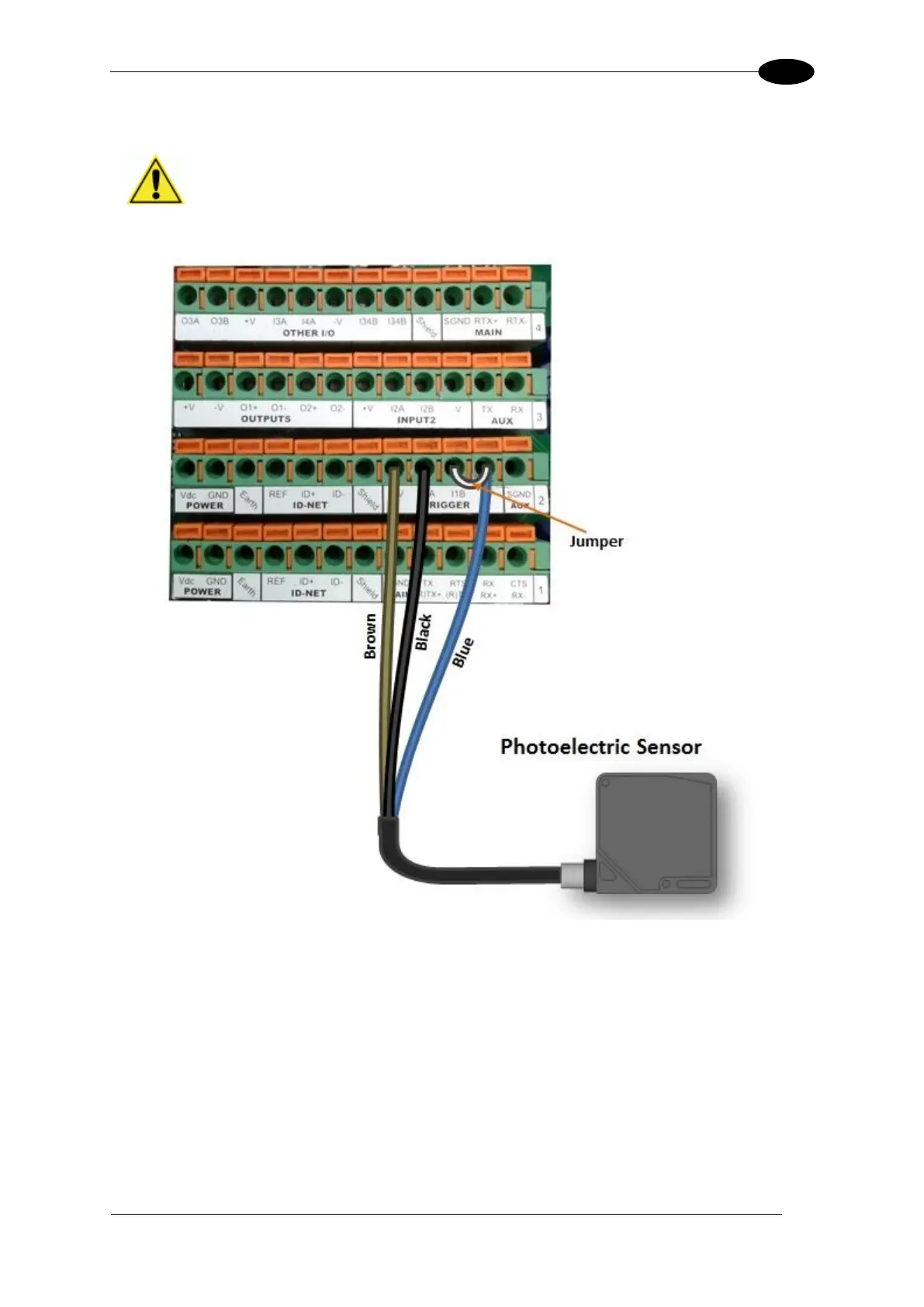

Figure 51 – PNP External Trigger Using Matrix 210N Power
PNP
