OUTPUT CONNECTIONS USING MATRIX 210N POWER
CAUTION: Power from the Vdc/GND spring clamps is available directly to
the Output Device on the +V/-V spring clamps, and does not pass through
the Power Switch (ON/OFF) inside the CBX. Disconnect the power supply
when working inside the CBX.

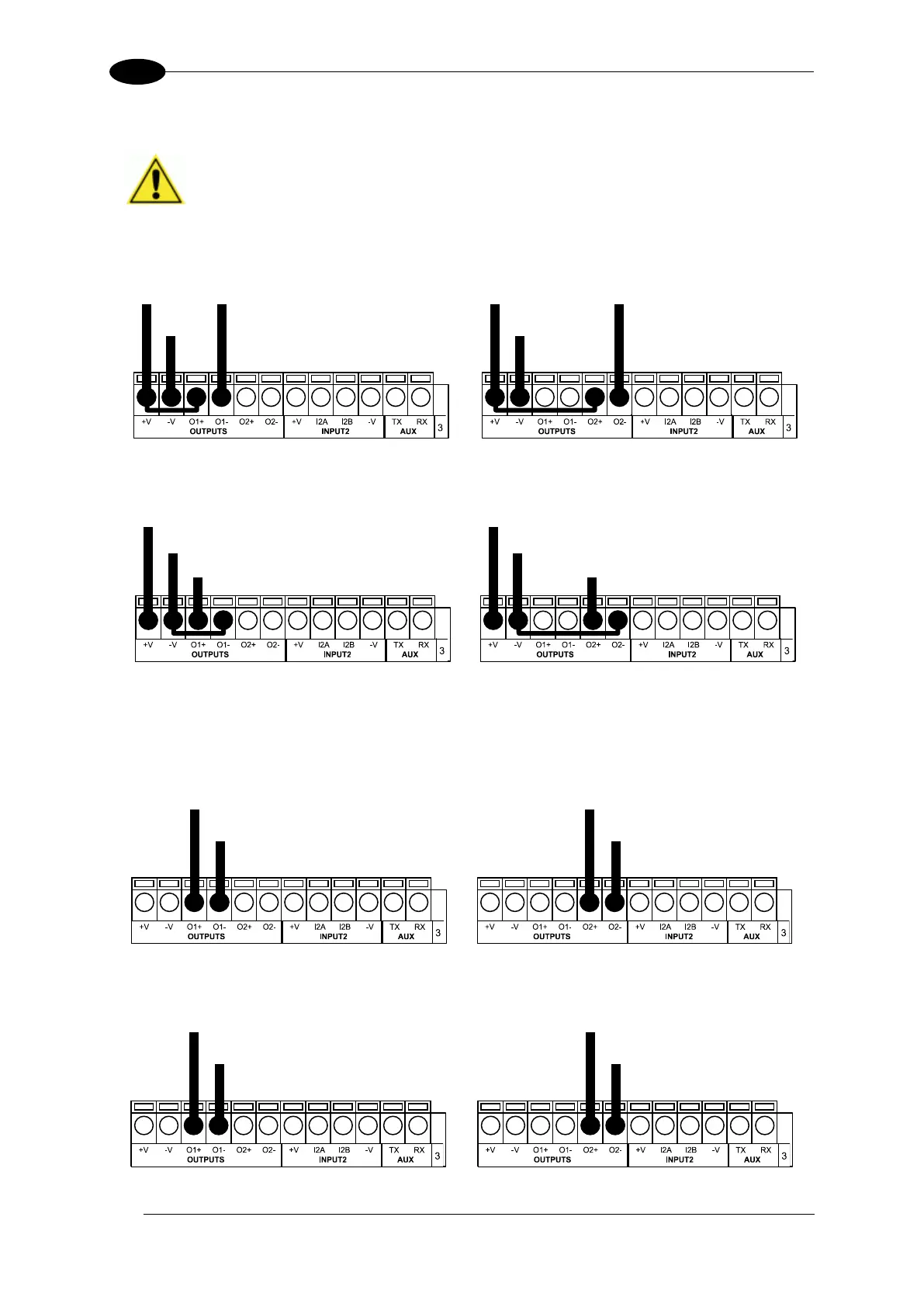

Figure 57 - Open Emitter Output Using Matrix 210N Power
Figure 58 - Open Collector Output Using Matrix 210N Power
OUTPUT CONNECTIONS USING EXTERNAL POWER
Figure 59 - Output Open Emitter Using External Power
Figure 60 - Output Open Collector Using External Power
Power to Output
Output device Signal
Output device
Reference
Output 1 Device
Power to Output
Output device Signal
Output device
Reference
Output 2 Device
Power to
Output device
Output device
Reference
Output 1 Device
Output
Signal
Power to
Output device
Output device
Reference
Output 2 Device
Output
Signal
Pulled up to External
Output Device Power
Output
Signal
Output 1 Device
Pulled up to External
Output Device Power
Output
Signal
Output 2 Device
Pulled down to External
Output Device Reference
Output
Signal
Output 1 Device
Pulled down to External
Output Device Reference
Output
Signal
Output 2 Device
