Introduction
4 PowerScan™ PD9530/PBT9500/PM9500
The BC9xx0™ Base Station/Charger
The BC9xx0 base station, when paired with one or more PowerScan™ 9500
readers, builds a Cordless Reading System for the collection, decoding and
transmission of bar code data. It can be connected to a Host PC via RS-232,
USB, or KBD Wedge, and is suited for single-cradle layouts. The BC91x0
models also provide a spare battery charger slot.

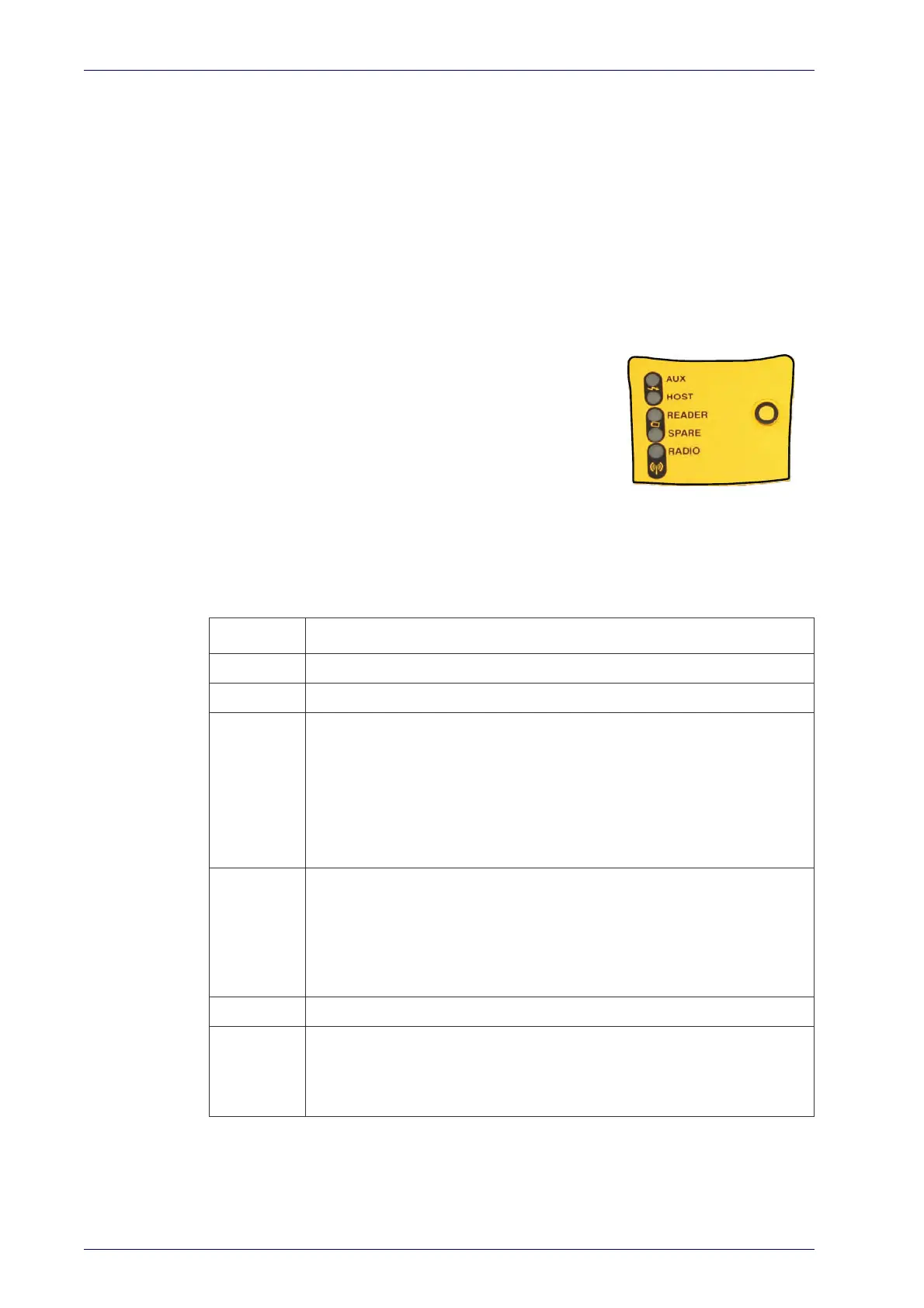

The label on the cradle contains LED indicators and a multi-function button.
Whe
n
the button is pressed for less than 5 seconds, the cradle will transmit a
"broadcast" message." When the broadcast is sent, all properly configured
scanners (Radio RX Timeout set to keep the radio "awake") that are linked to
that base and within radio range coverage will emit a beep and blink within 5
seconds. This functionality is useful to:
• verify which scanners are linked to a certain
b
a
se station
• detect a scanner forgotten somewhere
When the button is pressed for longer than 5
seco
nds, all paired scanners will be unpaired.
The LEDs signal the BC9xx0-BT status, as shown in Table 1 on page 4.
Table 1. LED Status
LED STATUS
Aux Yellow On = BC9xx0 is powered through an external power supply.
Host Yellow On = BC9xx0 is powered by the Host.
Reader
Green On = the reader battery is completely charged.
Red On = the reader battery is charging.
Orange Blinking = reader battery fault - replace battery.
Red / Green Alternatively Blinki
ng =
charging error - see " Error Codes"
on page 320
.
Off = reader not in the cradle or not properly inserted.
Spare
(BC91x0
models
only)
Green On = the spare battery is completely charged.
Orange Blinking = spare battery fault - replace spare battery.
Red/Green Alternatively Blinking = charging error - see "
Error Codes" on
page 320 .
Off = no spare battery in the housing or battery not fully inserted.
Radio Yellow Blinking = radio activity.
Ethernet
(Ethernet
models
only)
Green Blinking = Ethernet activity.
See "Base Station Indications (Cordless Models ONLY)" on page 320 for more
specific details on the LEDs.

Datalogic PowerScan PD9530 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Linear (1D) barcodes supported	-
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Product color	Black, Yellow
International Protection (IP) code	IP65
Input voltage	5 V
Power consumption	350 mA
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	No

Weight and Dimensions

Depth	110 mm
Width	74 mm
Height	212 mm
Weight	330 g
