Deep Sea Electronics Plc DSE6120 MKII

Installation
Page 33 of 94 057-236 ISSUE: 1

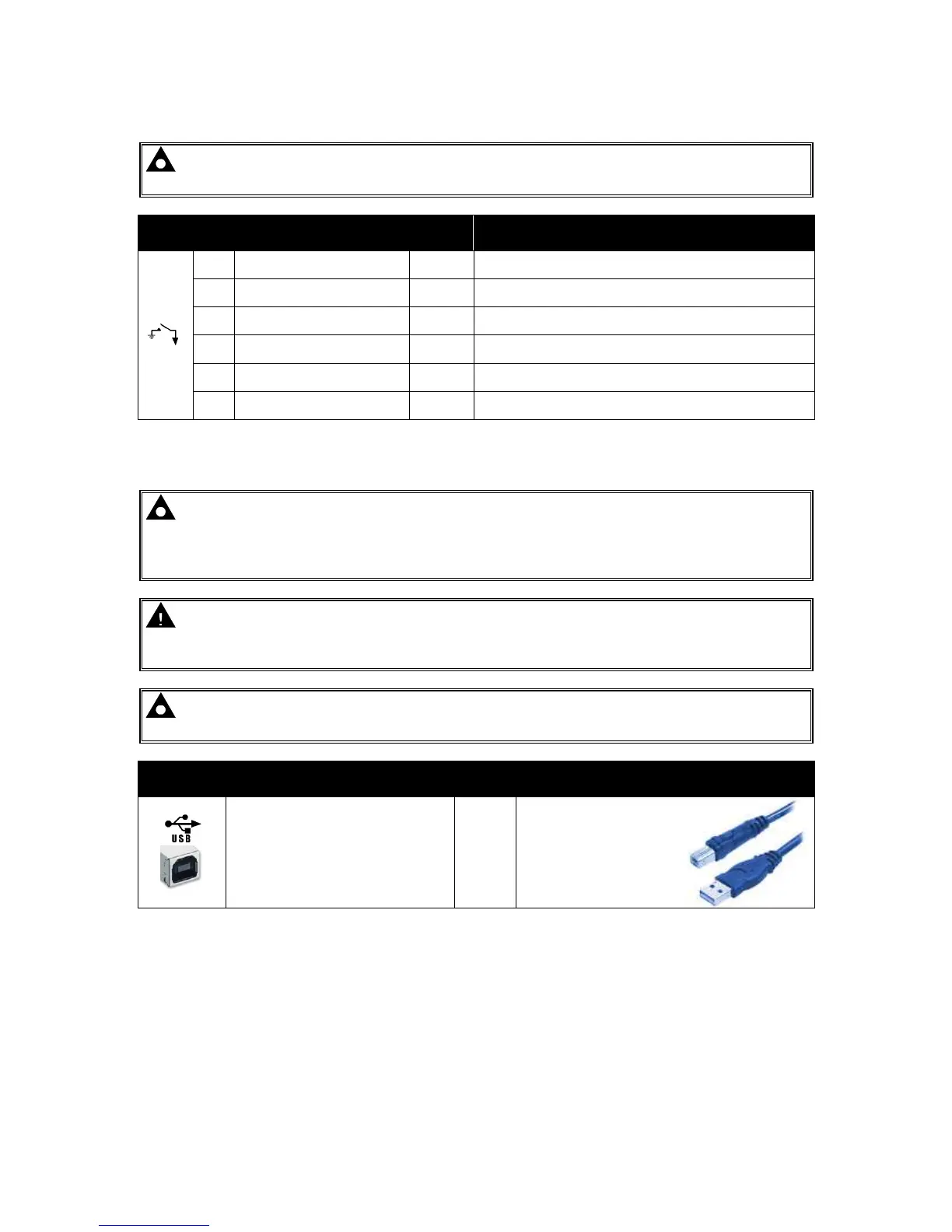

3.1.6 CONFIGURABLE DIGITAL INPUTS
NOTE: For further details of module configuration, refer to DSE Publication: 057-224
DSE6110 MKII & 6120 MKII Configuration Software Manual.
Pin
No
Description
Cable
Size
Notes
38 Configurable Digital Input A
0.5 mm²
AWG 20
Switch To Negative
39 Configurable Digital Input B
0.5 mm²
AWG 20
Switch To Negative
40 Configurable Digital Input C
0.5 mm²
AWG 20
Switch To Negative
41 Configurable Digital Input D
0.5 mm²
AWG 20
Switch To Negative
42 Configurable Digital Input E
0.5 mm²
AWG 20
Switch To Negative
43 Configurable Digital Input F
0.5 mm²
AWG 20
Switch To Negative
3.1.7 PC CONFIGURATION INTERFACE CONNECTOR
NOTE: The USB connection cable between the PC and the module must not be extended
beyond 5 m (yards). For distances over 5 m, it is possible to use a third party USB extender.
Typically, they extend USB up to 50 m. The supply and support of this type of equipment is
outside the scope of Deep Sea Electronics PLC.
CAUTION!: Care must be taken not to overload the PCs USB system by connecting more
than the recommended number of USB devices to the PC. For further information, consult
your PC supplier.
NOTE: For further details of module configuration, refer to DSE Publication: 057-224
DSE6110 MKII & 6120 MKII Configuration Software Manual.
Description
Cable
Size
Notes
Socket for connection to PC
with DSE Configuration Suite
Software
0.5 mm²
AWG 20
This is a standard
USB type A to type B
connector.
