4.4 VIEWING THE INSTRUMENT PAGES
NOTE: Depending upon the module’s configuration, some display screens may be
disabled. For further details of module configuration, refer to DSE Publication: 057-224
DSE6110 MKII & DSE6120 MKII Configuration Software Manual.
It is possible to scroll to display the different pages of information by pressing and holding either of
the Menu Navigation
buttons for two seconds to move to the next or previous page.
Example
Status
Press
&
Hold
Generator
Press
&
Hold
Mains
And so on until the desired page is reached.
A further presses and holds of the Scroll Up
button returns the Status page.
The complete order and contents of each information page are given in the following sections
Once selected, the page remains on the LCD display until the user selects a different page, or after
an extended period of inactivity (LCD Page Timer), the module reverts to the status display.
If no buttons are pressed upon entering an instrumentation page, the instruments displayed are
automatically subject to the setting of the LCD Scroll Timer.
The LCD Page and LCD Scroll timers are configurable using the DSE Configuration Suite Software
or by using the Front Panel Editor.

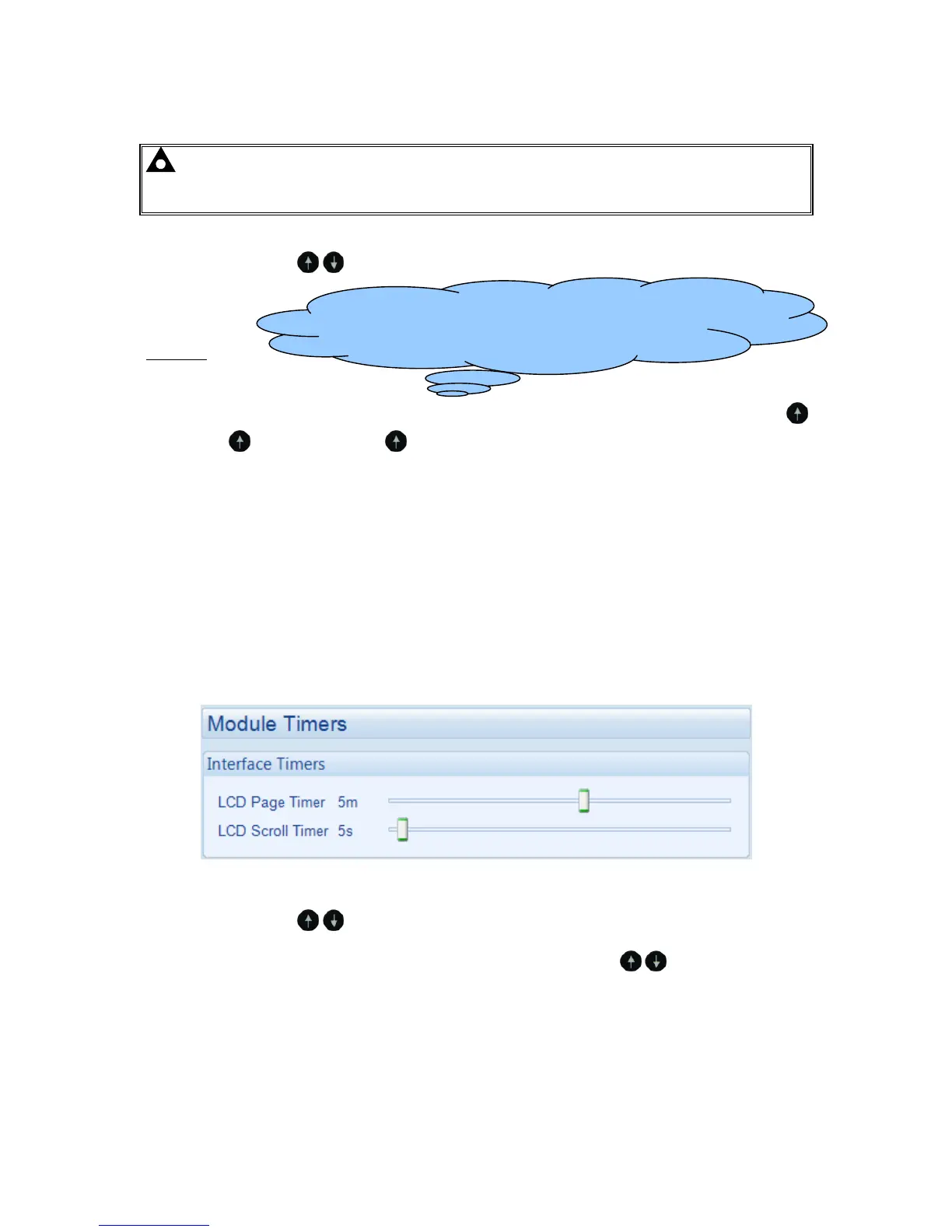

The screenshot below shows the factory settings for the timers, taken from the DSE Configuration
Suite PC Software.
Alternatively, to scroll manually through all instruments on the currently selected page, press either of
the Menu Navigation
buttons. The ‘auto scroll’ is disabled.
To re-enable ‘auto scroll’ press and hold either of the Menu Navigation
buttons to scroll to
the ‘title’ of the instrumentation page (ie Engine). A short time later (the duration of the LCD Scroll
Timer), the instrumentation display begins to auto scroll.
When scrolling manually, the display automatically returns to the Status page if no buttons are
pressed for the duration of the configurable LCD Page Timer.
If an alarm becomes active while viewing the status page, the display shows the Alarms page to draw
the operator’s attention to the alarm condition.
If you want to view one of the instrument pages
towards the end of the list, it may be quicker to scroll
down through the pages rather than right!
