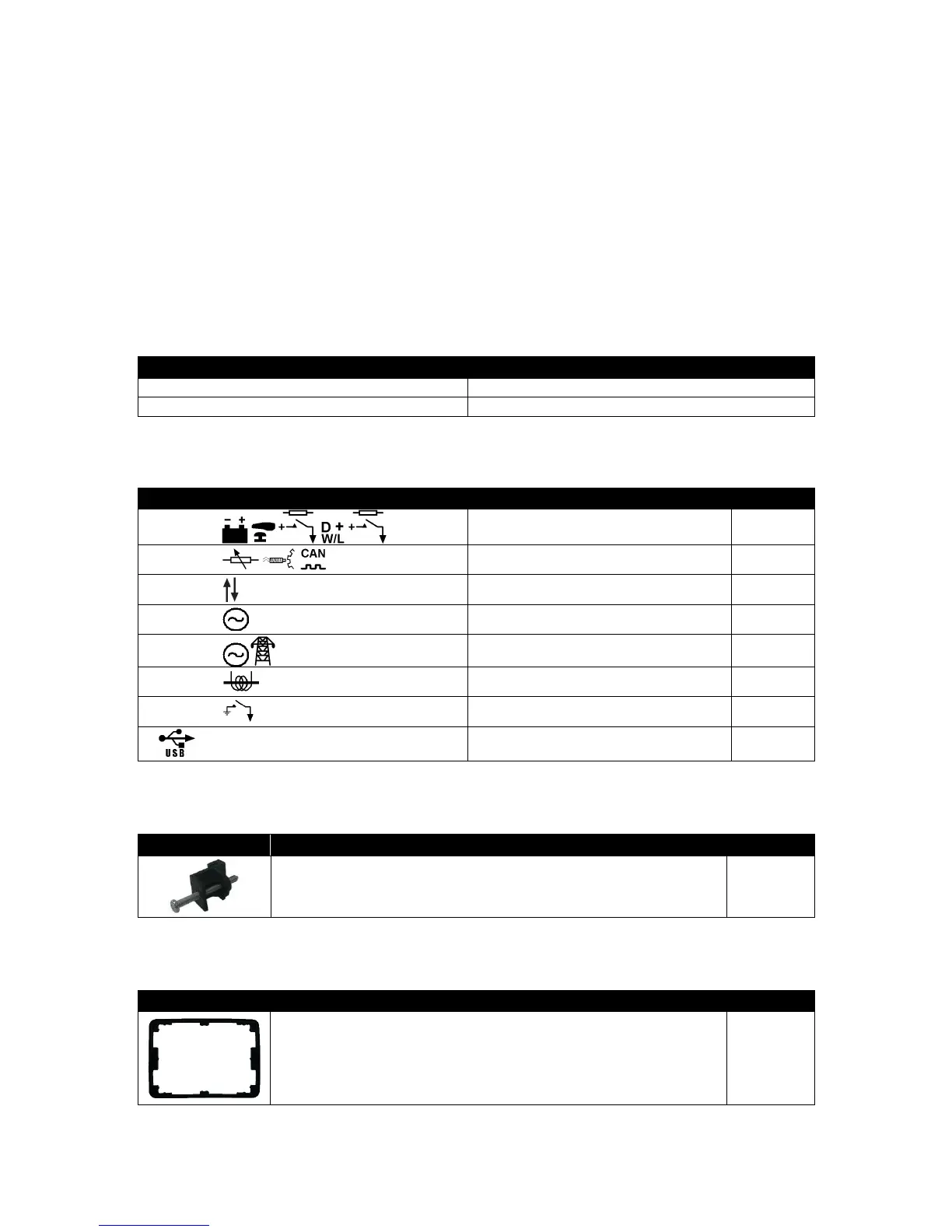

10 MAINTENANCE, SPARES, REPAIR AND SERVICING
The controller is Fit and Forget. As such, there are no user serviceable parts within the controller.
In the case of malfunction, you should contact your original equipment manufacturer (OEM).
10.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE
If you require additional plugs from DSE, please contact our Sales department using the part
numbers below.
10.1.1 PACK OF PLUGS
Module Type Plug Pack Part Number
DSE6110 MKII 007-869
DSE6120 MKII 007-870
10.1.2 INDIVIDUAL PLUGS
Module Terminal Designation Plug Description Part No.
1-10
10 way 5.08 mm 007-450
11-21
11 way 5.08 mm 007-451
22-24
3 way 5.08 mm 007-174
25-28
DSE6110 MKII Only
4 way 7.62 mm 007-171
25-32
DSE6120 MKII Only
8 way 7.62 mm 007-454
33-37
5 way 5.08 mm 007-445
38-43
6 way 5.08 mm 007-446
PC Configuration interface lead
(USB type A – USB type B)
016-125
10.2 PURCHASING ADDITIONAL FIXING CLIPS FROM DSE
Item Description Part No.
Module Fixing Clips (Packet Of 2) 020-406
10.3 PURCHASING ADDITIONAL SEALING GASKET FROM DSE
Item Description Part No.
Module Silicon Sealing Gasket 020-521
