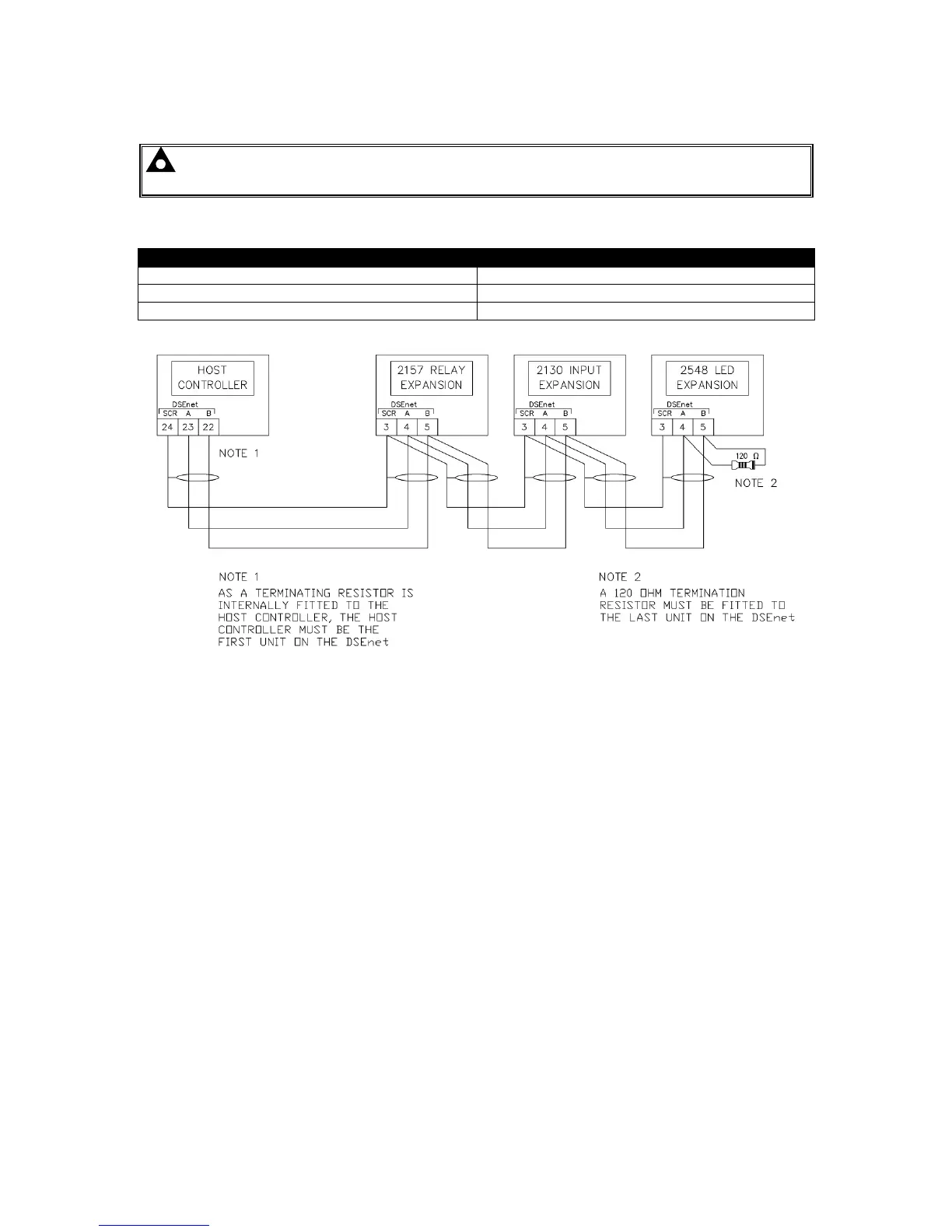

3.5 TYPICAL ARRANGEMENT OF DSENET®
NOTE: For further details of module configuration, refer to DSE Publication: 057-224
DSE6110 MKII & DSE6120 MKII Configuration Software Manual.
Six (6) devices can be connected to the DSENet®, made up of the following devices :
Device Maximum Number Supported
DSE2130 Input Expansion 2
DSE2157 Relay Output Expansion 2
DSE2548 LED Expansion 2
