4.4.1 STATUS
This is the ‘home’ page, the page that is displayed when no other page has been selected, and the
page that is automatically displayed after a period of inactivity (LCD Page Timer) of the module
control buttons.
This page changes with the action of the controller, when the engine is running, that target speed is
be displayed.

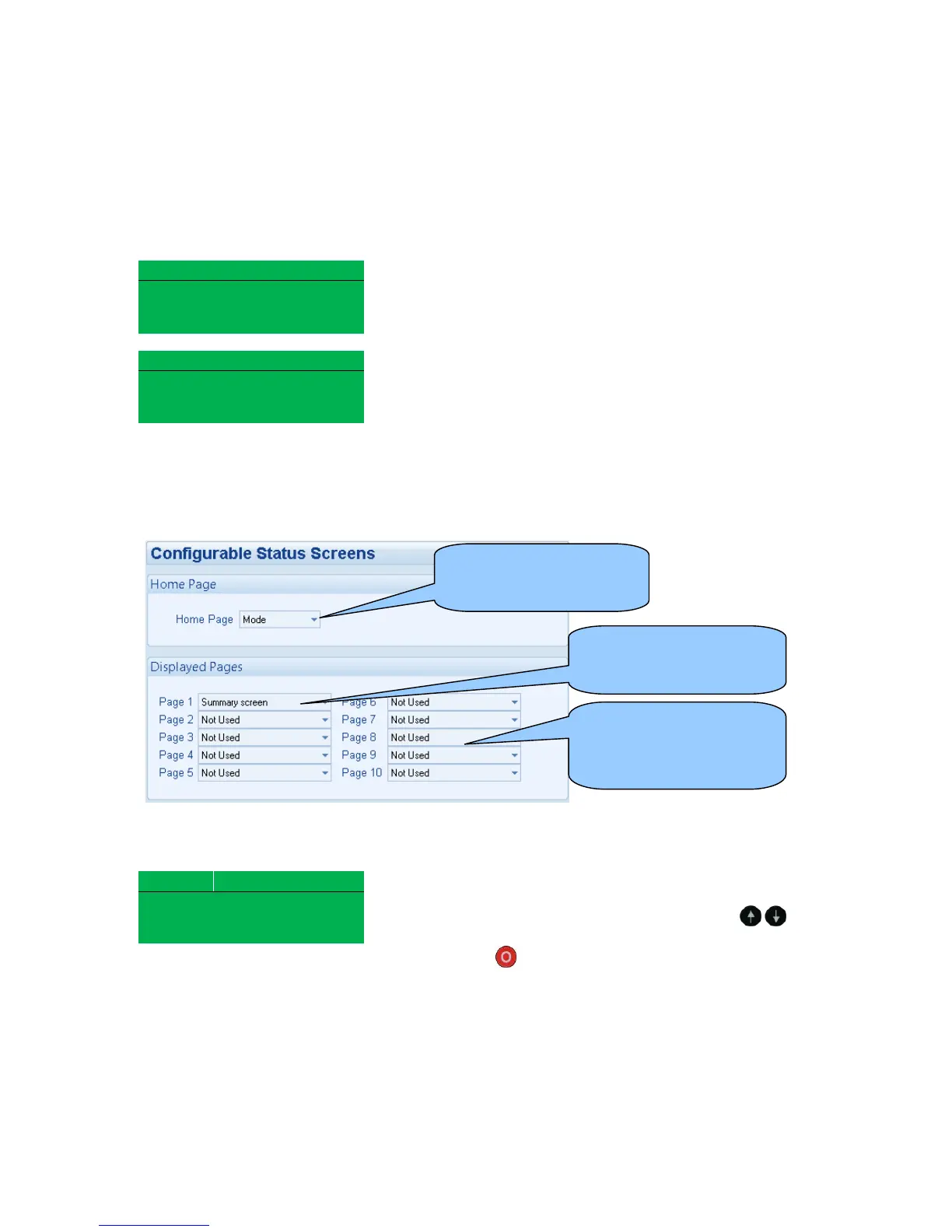

Status 22:31
Factory setting of Status screen showing engine stopped...
Engine at Rest
Stop Mode
Status 22:31
...and engine running
Generator Available
The contents of this display vary depending upon configuration by the engine manufacturer or
supplier.
The display above is achieved with the factory settings, shown below in the DSE Configuration suite
software:
4.4.1.1 GENERATOR LOCKED OUT
Status 22:31
Generator Locked Out indicates that the Generator cannot be
started due to an active Shutdown or Electrical Trip Alarm on the
module. Press and hold either of the Menu Navigation
buttons to scroll to the alarms page to investigate. Press the
Stop/Reset Mode button to clear the alarm, if the alarm does
not clear the fault is still active.
Generator Locked Out
‘Stop Mode’ and generator
status is displayed on the
Home Page
With a summary of the
instrumentation shown
when the engine is running.
Other pages can be
configured to be shown,
automatically scrolling
when the set is running.
