6.2 INDICATIONS
Indications are non-critical and often status conditions. They do not appear on the LCD display of the
module as a text message in the Status, Event Log or Alarms pages. However, an output or LCD
indicator is configured to draw the operator’s attention to the event.

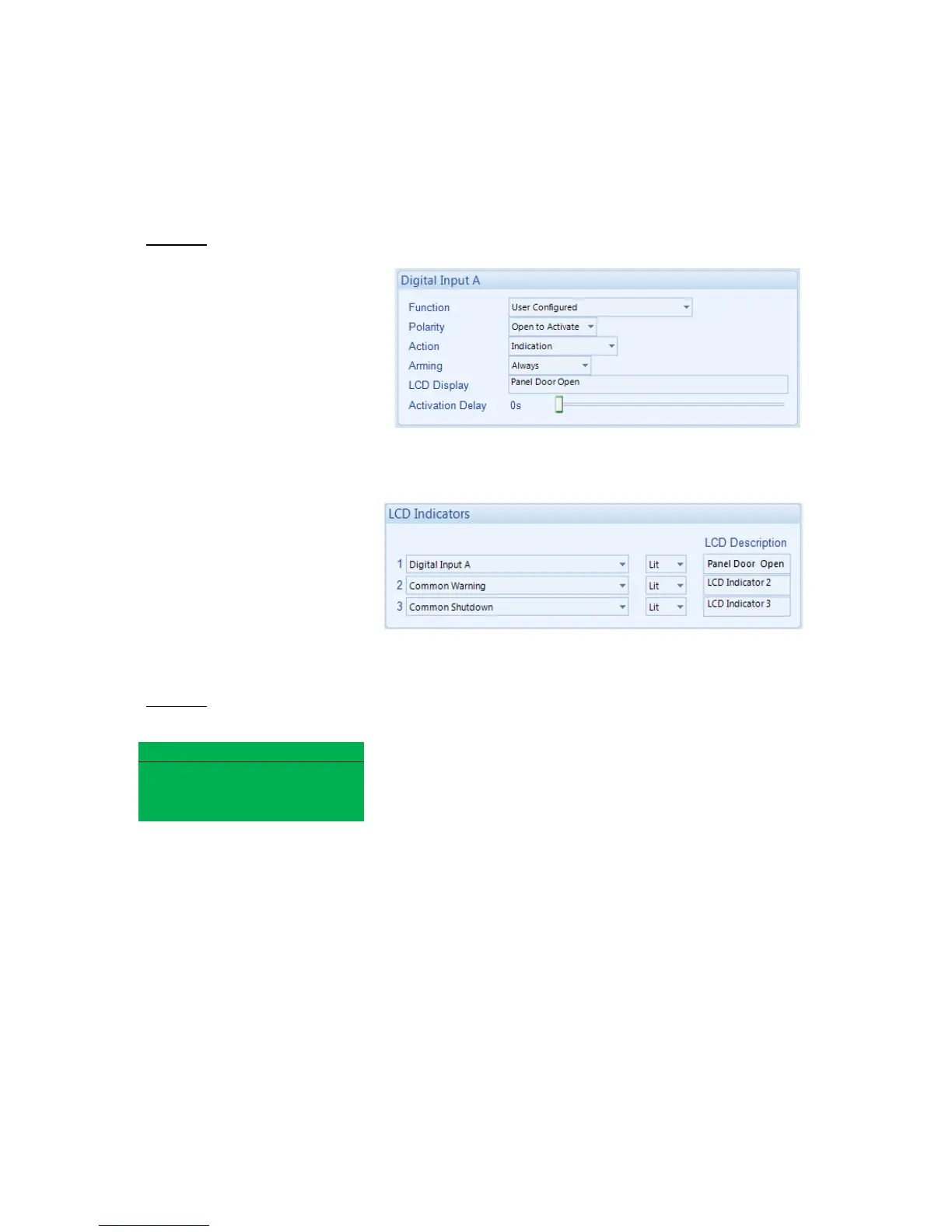

Example
• Input configured for
indication.
• The LCD text does not
appear on the module
display but can be added
in the configuration to
remind the system
designer what the input is
used for.
• As the input is configured
to Indication there is no
alarm generated.
• LCD Indicator 1
‘illuminates’ when Digital
Input A is active.
• The LCD Description
allows the system
designer to detail the
LCD Indicator function.
Example
The LCD Indicators on the module display show the status of the configured indicator.
