GC-1F Installation Instructions and Reference Handbook
DEIF A/S Page 11 of 123
4. Installation instructions
This chapter includes the information needed to perform correct installation of the unit, for
example mounting instructions, terminals, wiring, inputs, etc.
Mounting
The unit is designed for flush mounting by means of 4 fixing clamps (IP52), which are included
at delivery. To have the IP65 (12 fixing clamps), the unit must be ordered with option L. The two
fixing clamps on each side are mounted on the top and bottom of the GC-1F box.
Mounting of the unit
The unit is designed for mounting in the panel front.
In order to ensure optimum mounting, the panel door must be cut out according to the following
measurements:
H × W = 151.00 × 211.00 + 1.00 mm
H × W = 5.94" × 8.31" + 0.04"

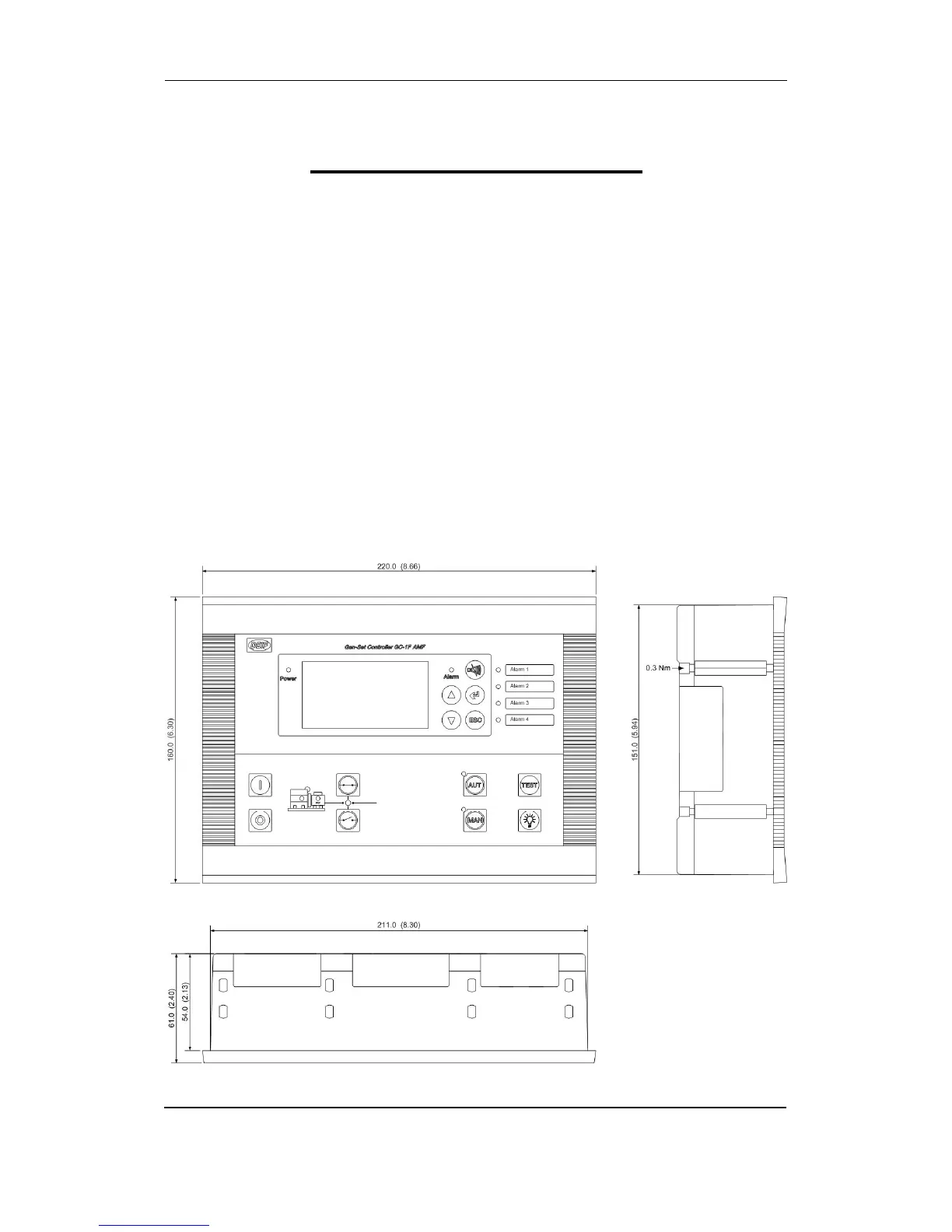

Unit dimensions
