GC-1F Installation Instructions and Reference Handbook
DEIF A/S Page 52 of 123

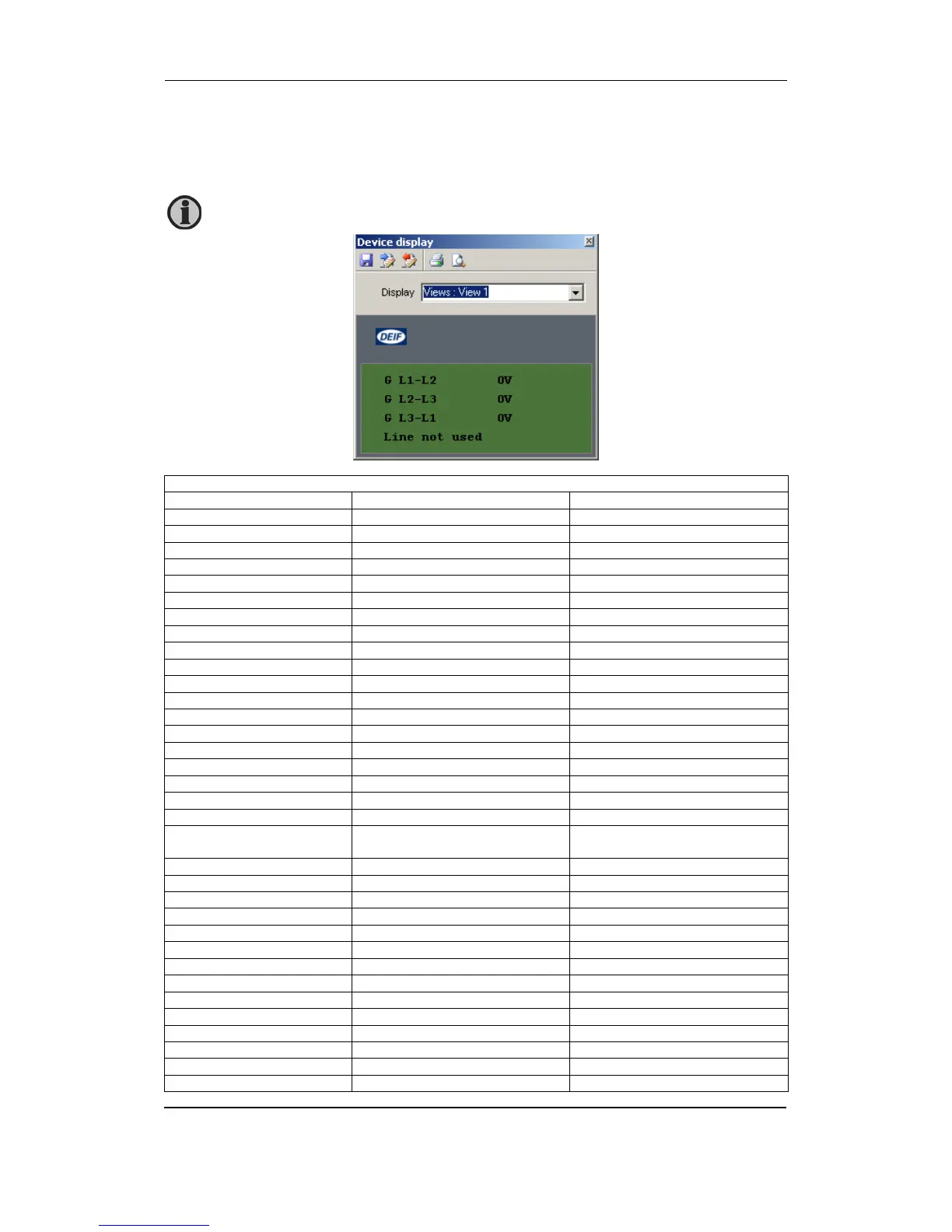

Configurable views in the display
The views in the display are configurable, this gives the customers the opportunity to make their
own views. There are up to 15 configurable views, which can all be set to 3 or 4 line views.
Possible views
Text in USW View in display Comment
G L1-L2 G L1-L2 XXX V
G L2-L3 G L2-L3 XXX V
G L3-L1 G L3-L1 XXX V
G L1-N G L1-N XXX V
G L2-N G L2-N XXX V
G L3-N G L3-N XXX V
G I L1 G I L1 XXX A
G I L2 G I L2 XXX A
G I L3 G I L3 XXX A
G P L1 G P L1 XXX kW
G P L2 G P L2 XXX kW
G P L3 G P L3 XXX kW
G f L1 G f L1 XX.X Hz
G L1 L2 L3 G L1 L2 L3 Only in 4 line view
G UL1 UL2 UL3 XXXX XXXX XXXX Vpn Only in 4 line view
G UL12 UL23 UL32 XXXX XXXX XXXX Vpp Only in 4 line view
G IL1 IL2 IL3 XXXX XXXX XXXX A Only in 4 line view
G PL1 PL2 PL3 XXXX XXXX XXXX kW Only in 4 line view
PF PF X.XX The unit can be either I or C for
Inductive or Capacitive
P P XXX kW
Q Q XXX kvar
S S XXX kVA
E E XXX kWh
M L1-L2 M L1-L2 XXX V
M L2-L3 M L2-L3 XXX V
M L3-L1 M L3-L1 XXX V
M L1-N M L1-N XXX V
M L2-N M L2-N XXX V
M L3-N M L3-N XXX V
M L1 L2 L3 M L1 L2 L3 Only in 4 line view
M UL1 UL2 UL3 XXXX XXXX XXXX Vpn Only in 4 line view
M UL12 UL23 UL32 XXXX XXXX XXXX Vpp Only in 4 line view
3 line views can show a value of max. 9999.
