GC-1F Installation Instructions and Reference Handbook
DEIF A/S Page 46 of 123

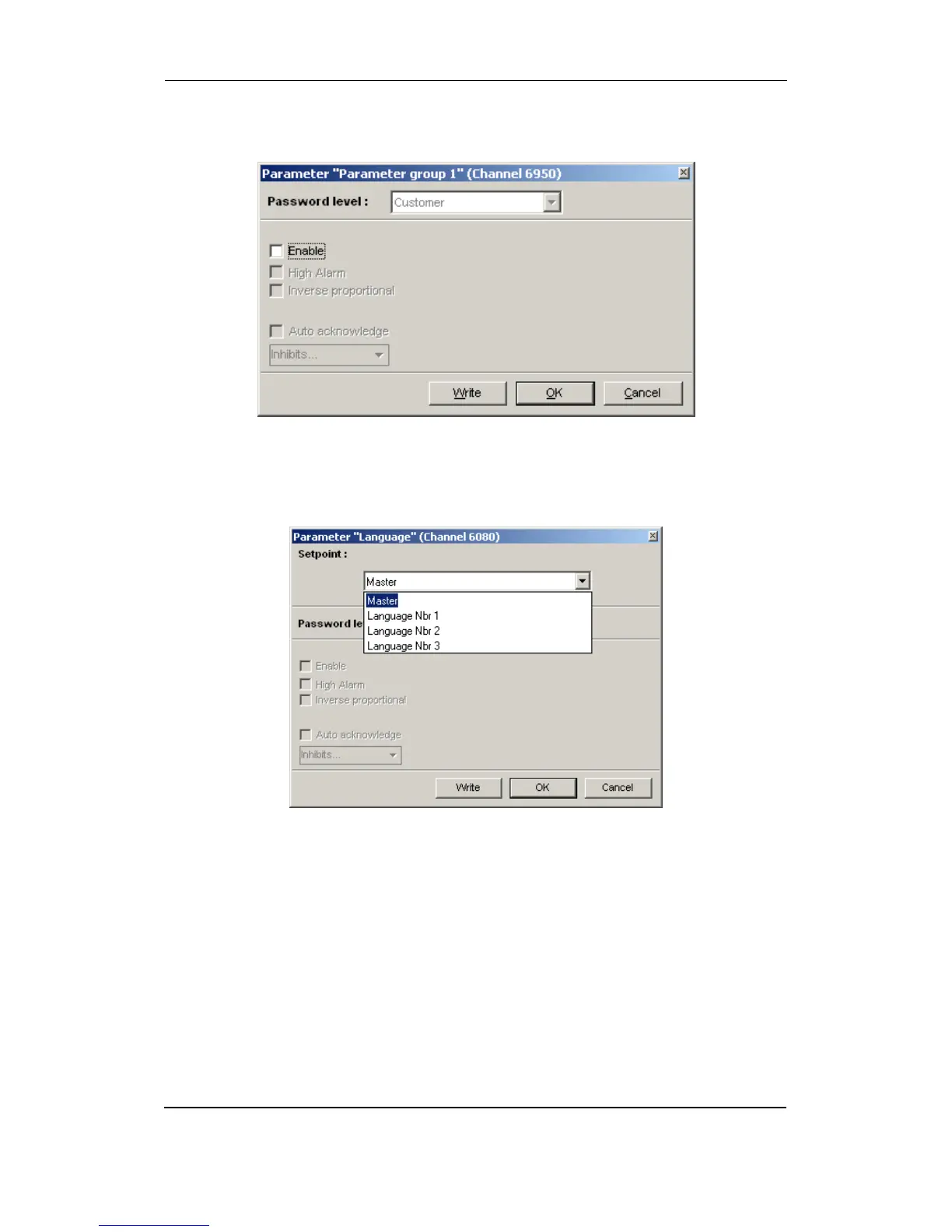

Parameter groups
Parameters shown in the display are split up in a default parameter list and the rest into three
groups. It is possible to select one or two of the groups or to select them all.
Language selection
The unit has the possibility to display different languages. It is delivered with one master
language which is English, furthermore three languages which are selected by the customer on
the order specification. Furthermore, eight translations can be made by the customer, so a total
of 11 languages can be saved in the unit by using the PC utility software. The used language
can be changed when connected to the PC utility software. It is not possible to make language
configuration from the display, but the already configured languages can be selected.
