Deif GC-1F - Push-Buttons, Leds and Display; Unit

GC-1F Installation Instructions and Reference Handbook
DEIF A/S Page 31 of 123
5. Push-buttons, LEDs and display
This chapter deals with the display including the push-button and LED functions.
Unit
Front dimensions H × W
160 × 220 mm (6.30” × 8.66”)
Unit depth
54 mm (2.13 “)

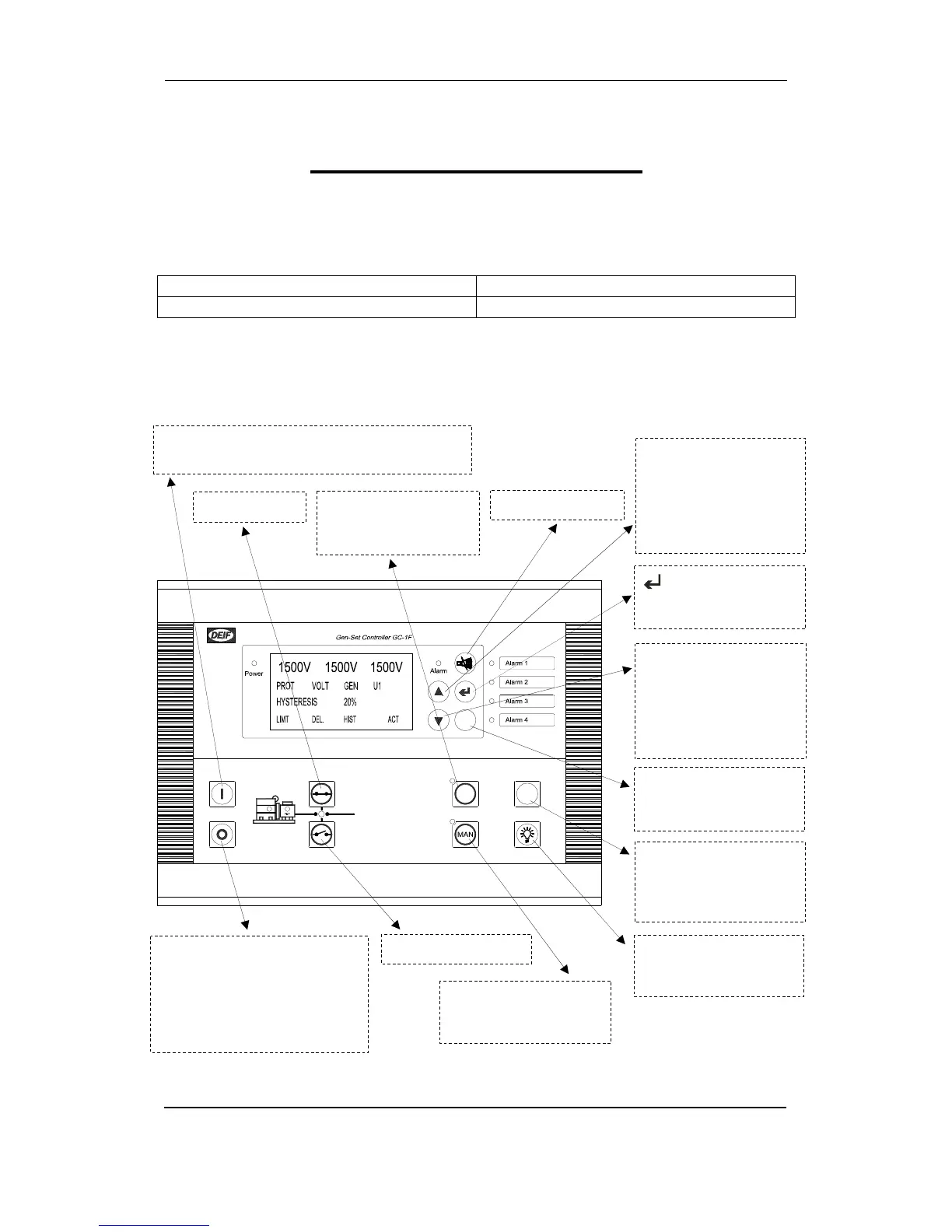

Push-button functions
The push-buttons on the unit have the following functions:
I:
Start engine (local (not auto)) running mode.
O:
Stops the engine immediately.
If the unit is in AUTO mode,
the mode will change to MAN
and the engine will stop.
Breaker OFF.
Breaker ON.
AUT:
AUTO running mode
selector.
:
Enters value or ack-
nowled
g
es alarm.
MAN:
Manual running mode
selector.
Reset horn relay.
▲:
Normal display: Scrolls
the display up once.
Programming:
Increases the set point
value.
▼:
Normal display: Scrolls
the display down once.
Programming:
Decreases the set
p
oint value.
ESC:
Jumps from parameter
settings to display.
TEST:
Activates the selected
test in the entered
time.
Lamp test:
Activates all LEDs for
3 seconds.
AUT TEST
ESC
