GC-1F Installation Instructions and Reference Handbook
DEIF A/S Page 65 of 123
+VDC
Output
0 VDC
+12/24VDC
-12/24VDC
17
18
GC-1F
R
+VDC
Output
0 VDC
+12/24VDC
-12/24VDC
17
18
GC-1F
R

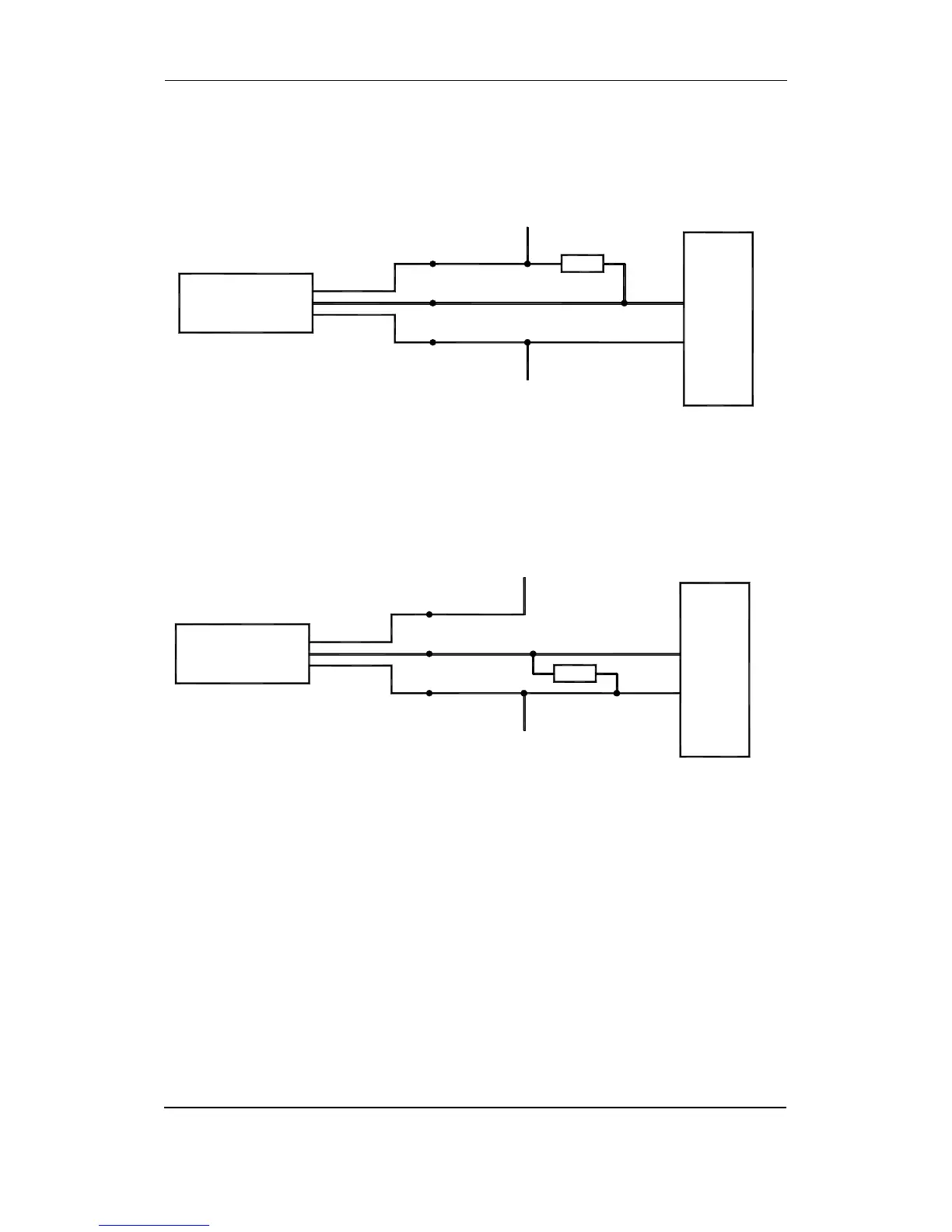

NPN transistor output pickup
Since the NPN output is a frequency modulated DC pulse signal, a few external components are
needed in order to eliminate the DC component.
R = 1200  (24
V DC), 600  (12 V DC)
PNP transistor output pickup
Since the PNP output is a frequency modulated DC pulse signal, a few external components are
needed in order to eliminate the DC component.
R = 1200  (24
V DC), 600  (12 V DC)
Senso
Senso
