Finger width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FW
The width of the backgauge finger.
7.o

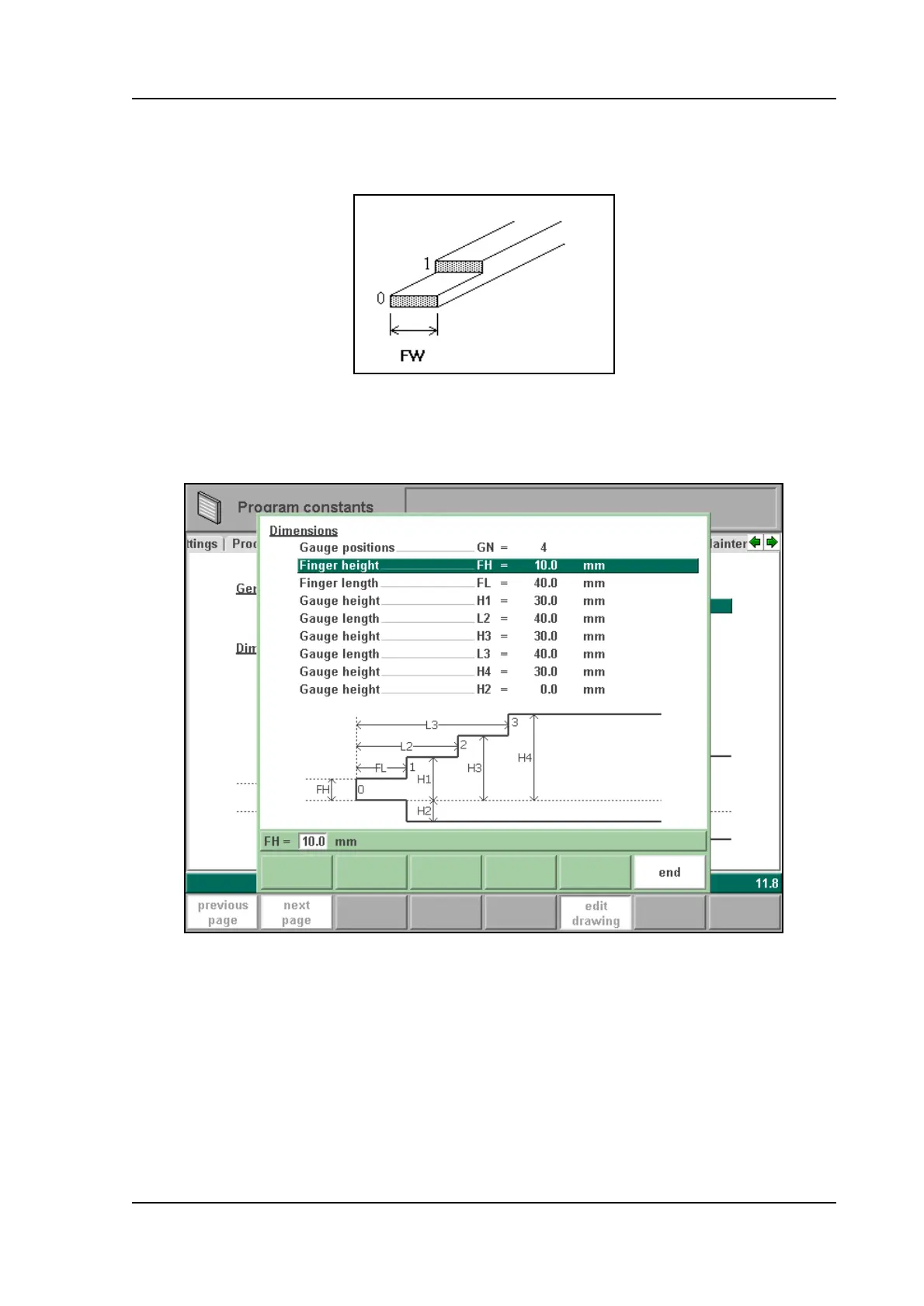

When the function key ‘edit drawing’ has been pressed, a new window appears wherein the
dimensions of the backgauge finger can be programmed.
7.p
The following parameters describe the dimensions of the backgauge and the lay-on positions.
The number of parameters that has to be programmed depends on the number of gauge
positions. If more gauge positions are programmed, more parameters are offered. The
illustration at the bottom of the screen will change according to the number of gauge positions.
Finger height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FH
The height (or thickness) of the first backgauge finger tip.
