V0505, 5.10

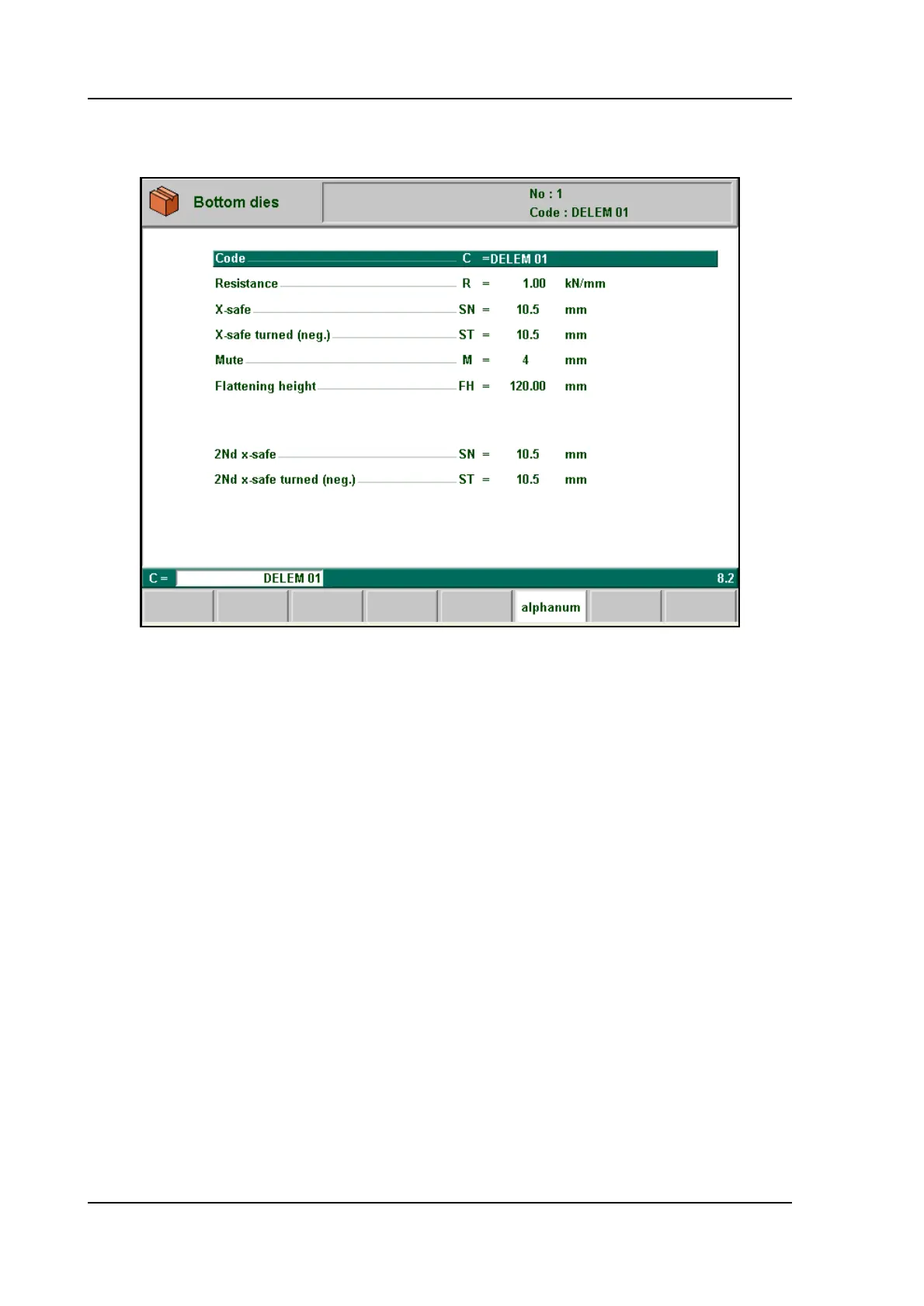

5.3.2. Specific die data
5.k
Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C
Alphanumeric tool name with a maximum 20 characters.
Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R
Maximum allowable force on the die in kN/mm.
X-safe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SN
Calculated safety zone (minimum X-axis value), which will be used in the case a R-axis
is mounted. This to prevent finger to die collision. The indicated minimum value is com-
puted automatically from the die dimensions as follows:
X-SAFE = FS + ½ V in which:
FS = flat section on the right hand side of the V-grove
V = opening value
In this formula also an extra small safety value has been added.
X-safe turned (negative) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ST
This second safety value will be active if the die is used in the turned position. This can
be achieved by programming the die in the bendsequence computation with a negative
number. For instance: Program for die number 2: "-2" if you want to use it in the turned
position. In this situation parameter ST will be used as safety zone for the backgauge.
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .M
Muting distance. Distance above the plate at which the speed change takes place.
