V0505, 5.4
• Drawing orientation of the punch on the screen
The right hand side of the tool is the backgauge side.
The bottom point of the punch will be placed on the center line of the press brake shape.

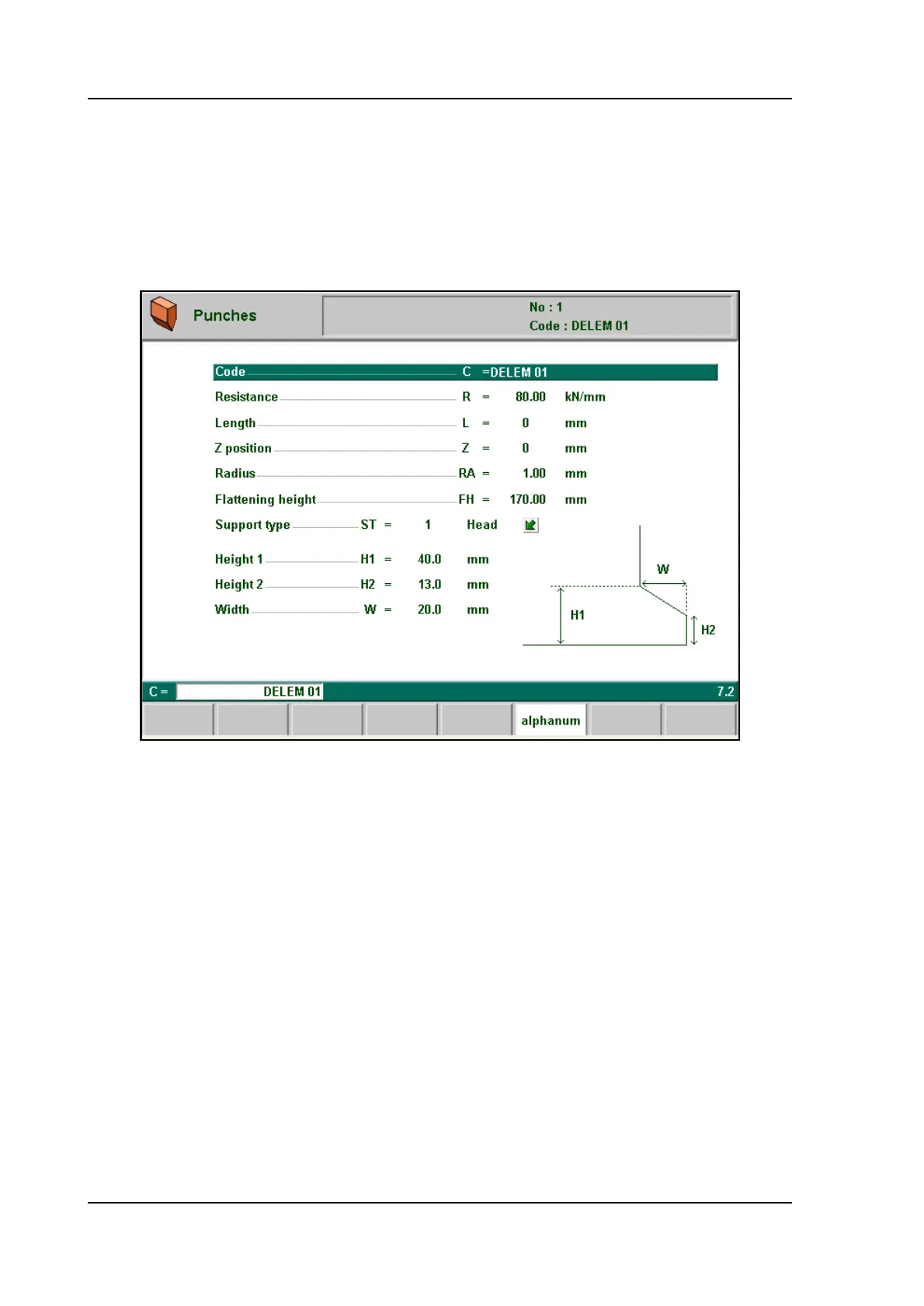

5.2.2. Specific Punch Data
5.c
Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C
Alphanumeric tool name with a maximum of 20 characters
Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R
Maximum allowable force on punch in kN/mm
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .L
Length of the punch to be used
Z-position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Z
Offset position of the middle position of the punch in relation to the middle of the press
brake.
(Default value is 00 mm)
In case automatic Z-axis are used the Z-axis value is computed from the: plate length, Z-
distance (menu ‘Program constants’) and Z-position.
Top vie w
