Delem
V0505, 5.5
5.d
Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RA
The radius of the punch.
This parameter has to be used as selection criterium, the value will not be used in compu-
tation formulas.

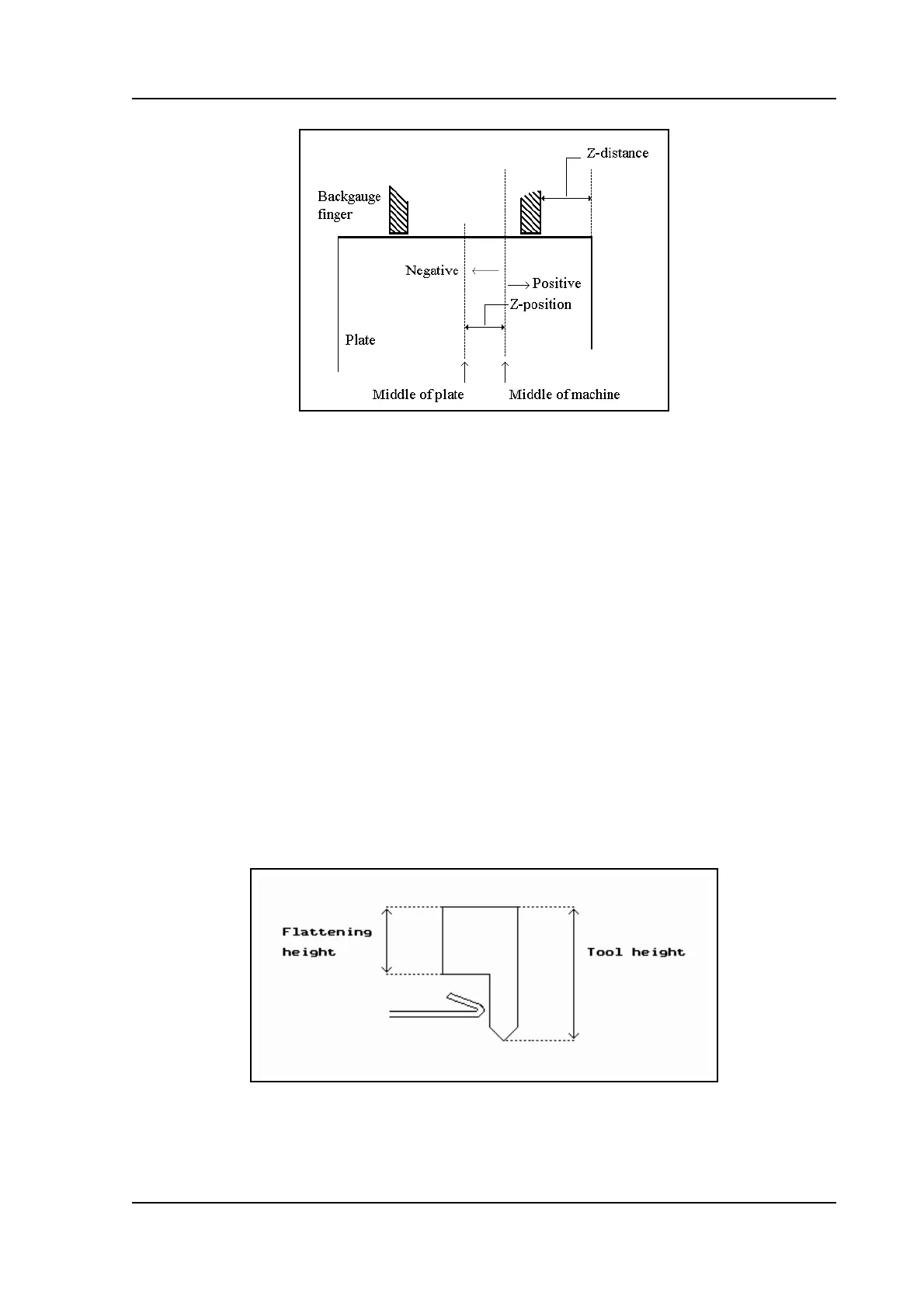

Flattening height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FH
The flattening height need to be programmed when you make use of a special flattening
punch to flatten your product.
The programmable height is used to calculate the Y-axis value in case of "flattening". The
default-value for this parameter is the standard tool height, which is already programmed.
Every time that this standard height is changed, the flattening height will be made equal to this
tool height (due to safety reasons). See figure 6.g.
The total toolheight will be used to calculate the speed change point mute and the flattening
height will be used to calculate the end position of the Y-axis beam to flatten the product. The
calculation will take 2x sheet thickness into account. Also you can program a flattening offset
in the menu ‘Program constants’. This value will be added to the value of 2x sheet thickness.
5.e
Support type shoulder/head 0/1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ST
Switch parameter, to account for differently mounted punches. Such punches could
