Delem
V0505, 5.13

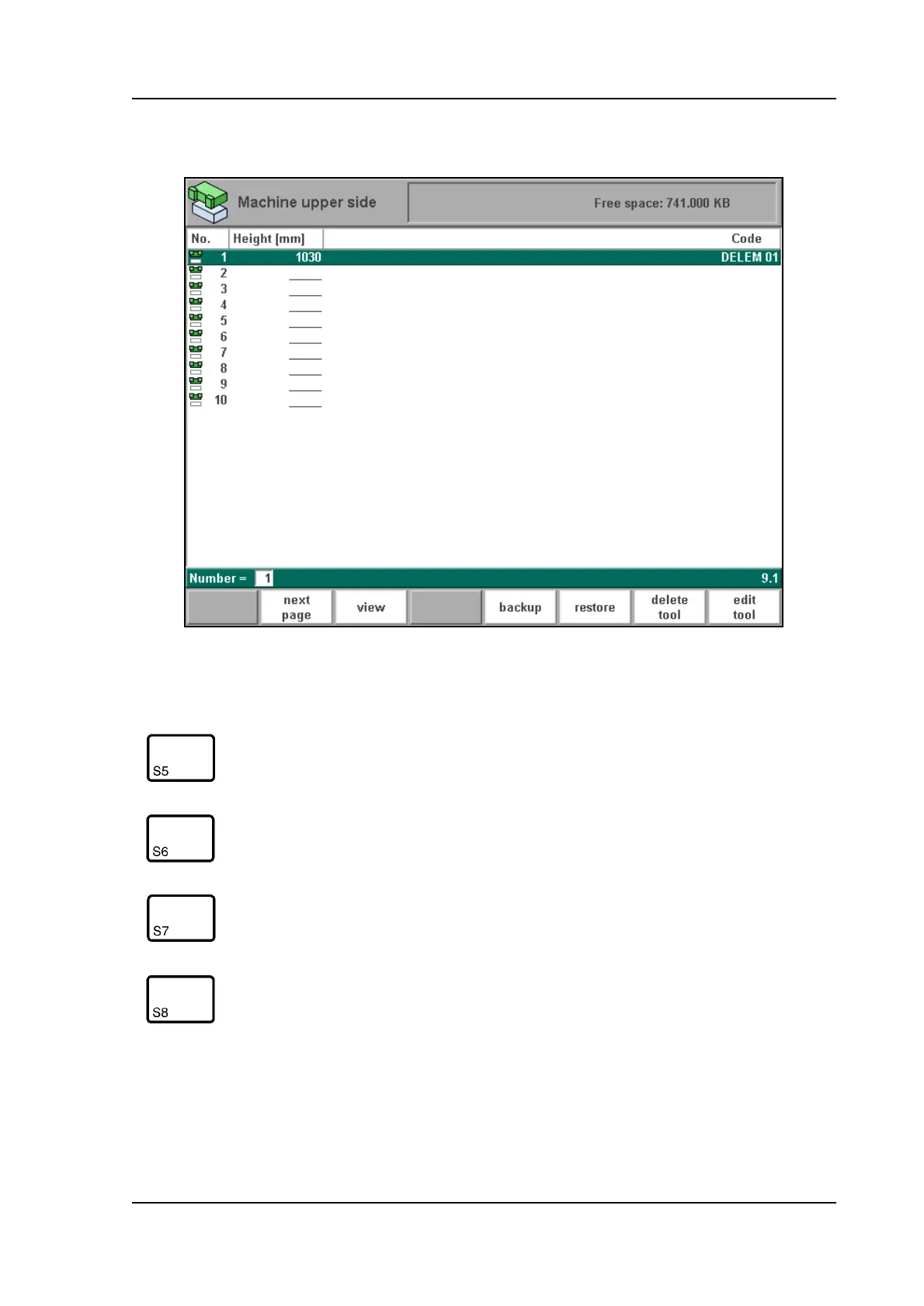

5.4. Machine upper side and lower side
5.o
The shapes of your machine are drawn in the same way as for the punches and dies. Like with
the tools the right hand side of the drawing is the backgauge position of the machine.
Before starting drawing the machine shape upper or lower side you must enter the press-beam
height of the upper part when the moving part of the upper side is in its mechanical top dead
Function keys:
backup Save tools from library to disk.
restore Load tools from disk into the control.
delete tool Remove tool from library.
edit tool To edit the machine shape drawing or check the dimen-
sions.
