V0505, 5.6

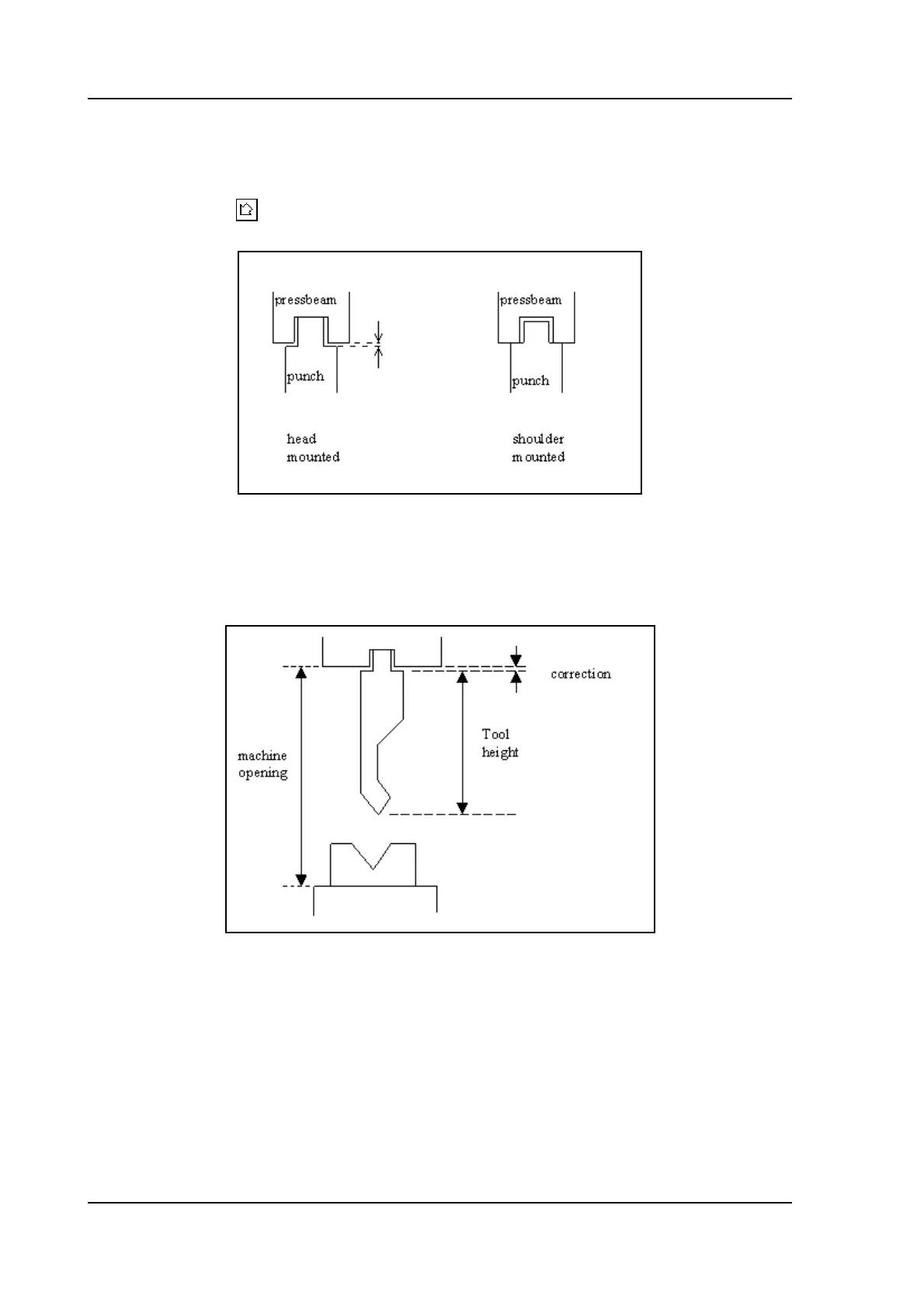

cause inaccuracies in the tool height and the resulting Y-axis position. The control makes
a distinction between two settings, 'head mounted' and 'shoulder mounted'.
0 = shoulder mounted (default setting)
1 = head mounted
Press the key to select the required setting.
5.f
If 'shoulder mounted' is chosen, the Y-axis position is calculated from the standard tool height.
This is the default setting.
If 'head mounted' is chosen, a correction is made for Y-axis computation.
5.g
