V0505, 5.9
The width V is the distance between the touching lines crossing.

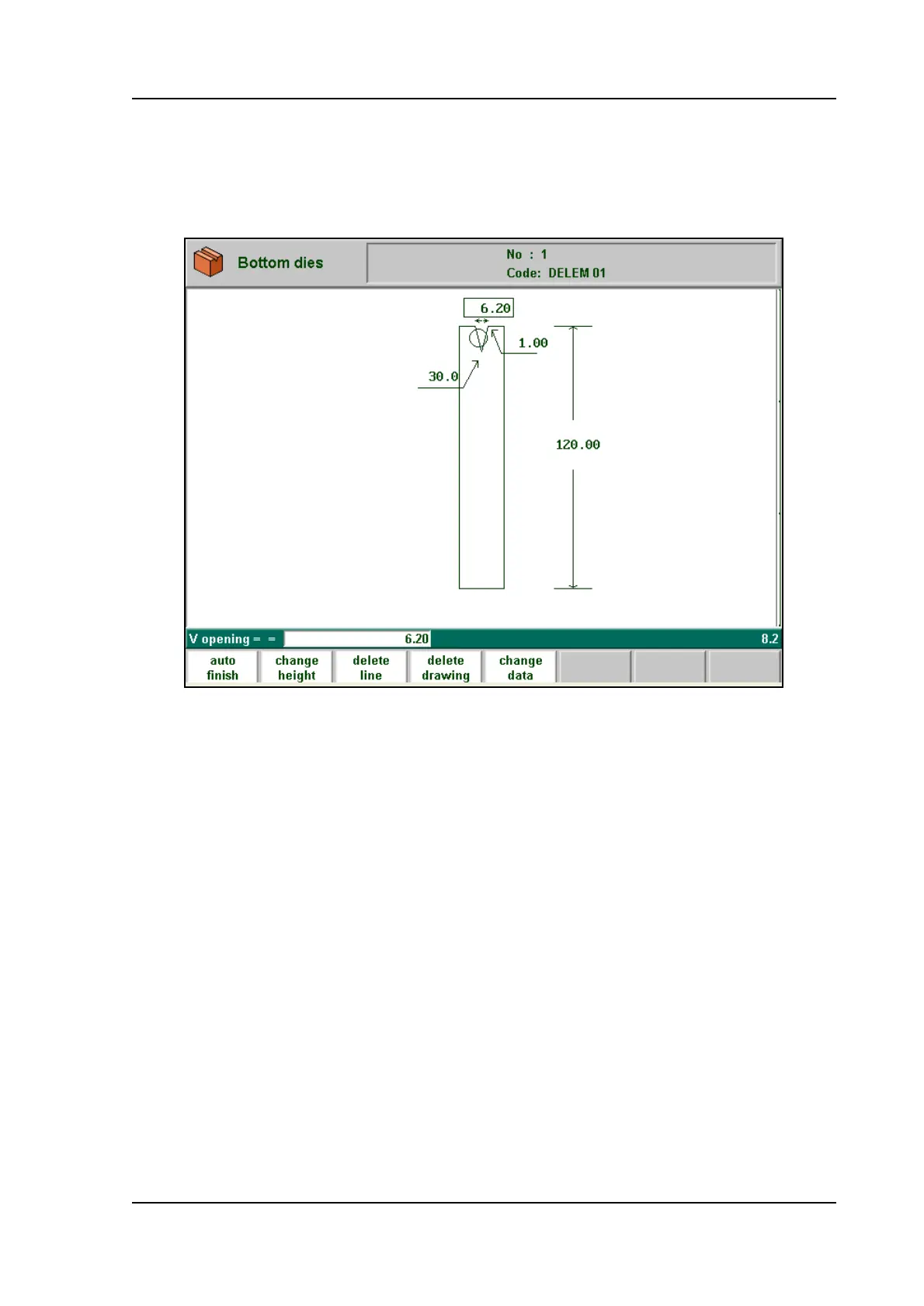

After entering these parameters you are ready to draw the important outer dimensions of your
die. The right side of the die is the backgauge position. The mid-position of the V-opening will
be placed on the centre line of the press brake shape.
5.j
The length of the flat section on the right hand side of the V-grove will be used in order to cal-
culate the minimum X-axis position for the R-axis collision detection with die (X-safe).
Function keys:
The softkey functions are exactly the same as for punch programming.
To Next Page
