V0505, 5.8
When starting the die drawing, the display prompts the main dimensions of the die:
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .H
The typical tool height of the die.
V-opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .W
The V-opening of the die.
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .α
The angle of the die.
Radius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RA
The radius of the edges of the V-opening.

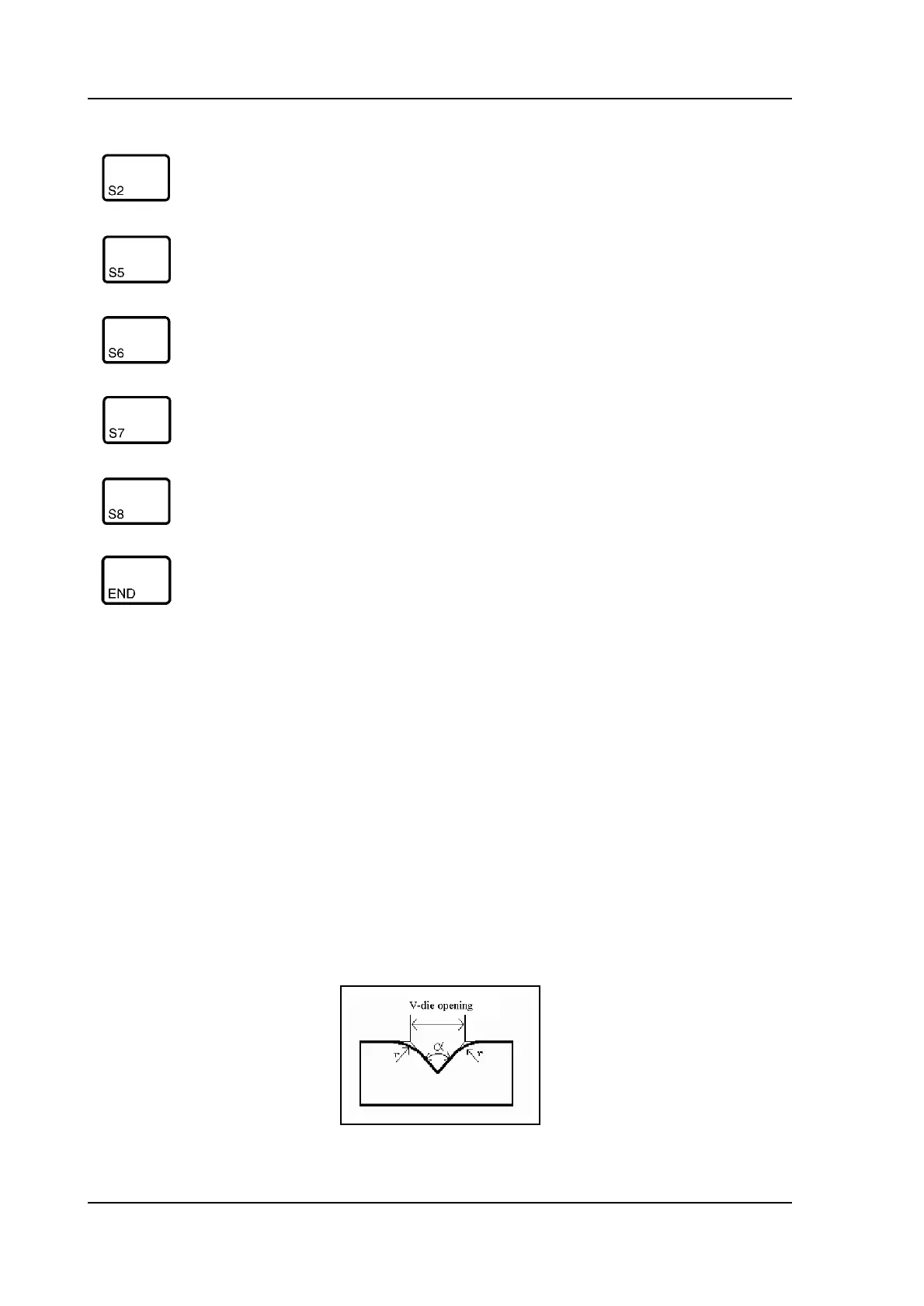

V-die opening:
5.i
next page To select the next page within the several pages of the die
library.
backup Save tools from library to disk.
restore Load tools from disk into the control.
delete tool Remove tool from library.
edit tool To edit the tool drawing or check the die data.
To return to the program menu.
Function keys:
