Delem
V0505, 5.11
5.l

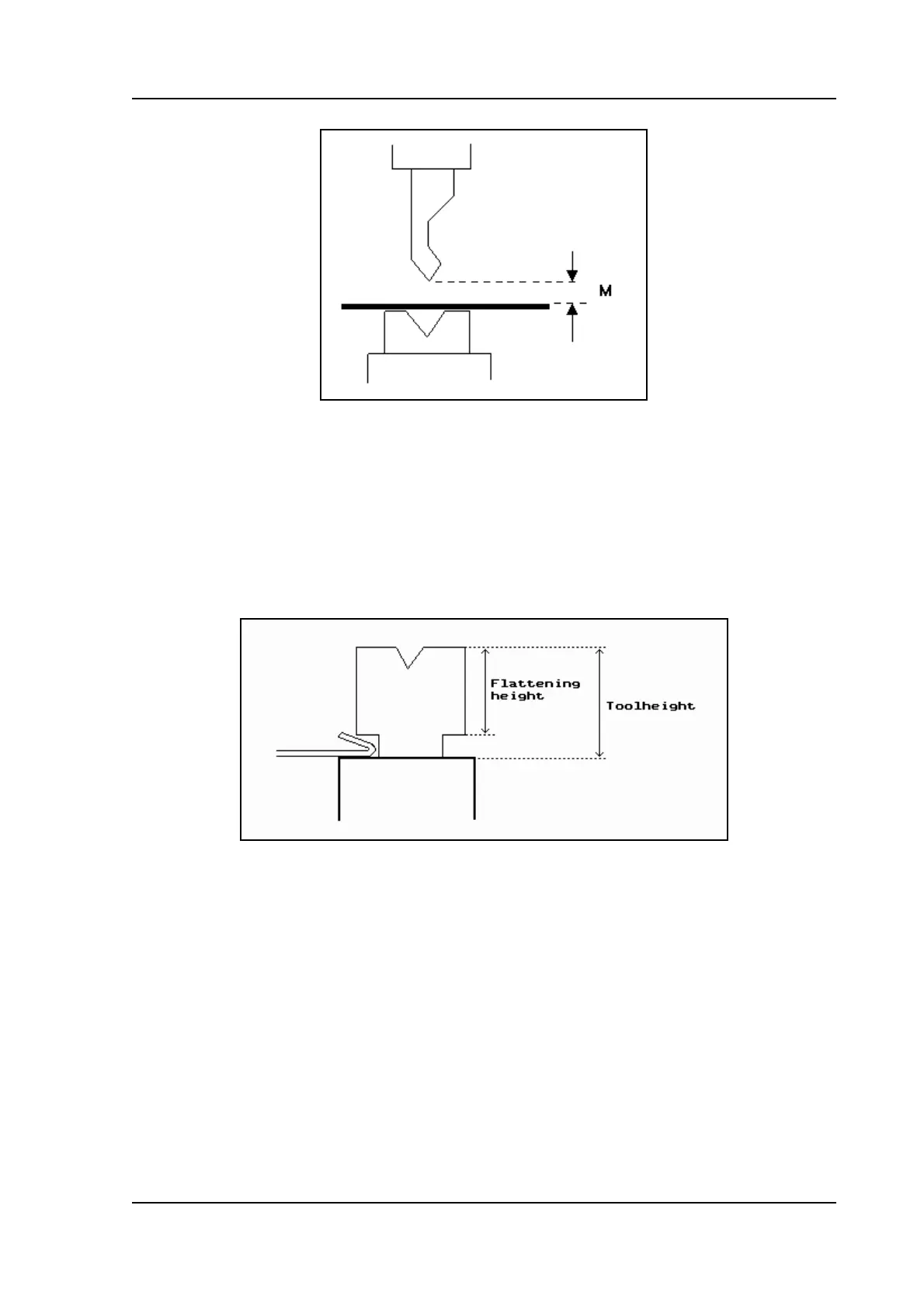

Flattening height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FH
The flattening height need to be programmed when you make use of a special flattening
die to flatten your product.
The programmable height is used to calculate the Y-axis value in case of "flattening".
The default-value for this parameter is the standard tool height, which is already pro-
grammed. Every time that this standard height is changed, the flattening height will be
made equal to this tool height (due to safety reasons). See figure 6.r.
5.m
The total height will be used to calculate the speed change point mute and the flattening
height will be used to calculate the end position of the Y-axis beam to flatten the product.
The calculation will take 2x sheet thickness into account. Also you can program a flat-
tening offset in the menu ‘Program constants’. This value will be added to the value of
2x sheet thickness.
2nd X-safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SN=
2nd X-safe turned (negative) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ST=
Second automatically calculated safety zone (minimum X-axis value) to be used in the
case a R-axis is mounted. The value is the distance from the middle of the V-opening to
the most outside point of the drawing of the die (on the right side). Also an extra safety
tolerance of 1mm is added. The situation for the die in turned position the distance to the
