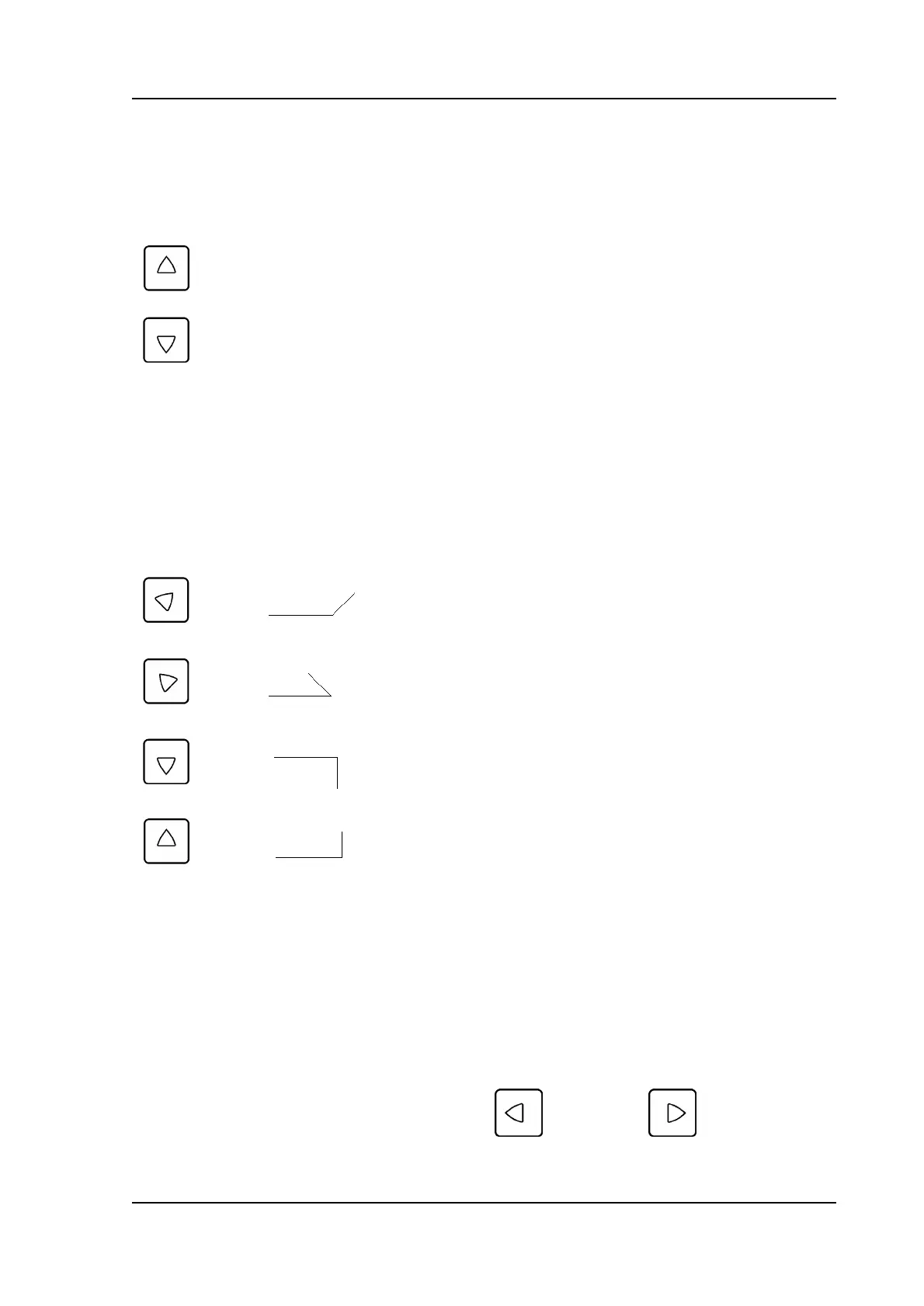

- Zoom function:
At bendsimulation overview in case of 2D-products (bendsequence menu and automatic
mode):
- Drawing cursor control for 2D-products
In case you are drawing the profile of your product or tools the cursor keys can be used to give
directly multiples 45 degree angles. e.g.:
- Horizontal or vertical projections for 2D-products
After you entered the length of the line interval you can specify if this line interval is either the
nominal length, horizontal or vertical projection. The given length dimension in the enter field
is the line length L if the drawing cursor is in the concerning line.
Enlargement
Reducement
a = 135°
a = 45°
a = -90°
a = 90°
Horizontal projection with or key
