V0505, 2.6

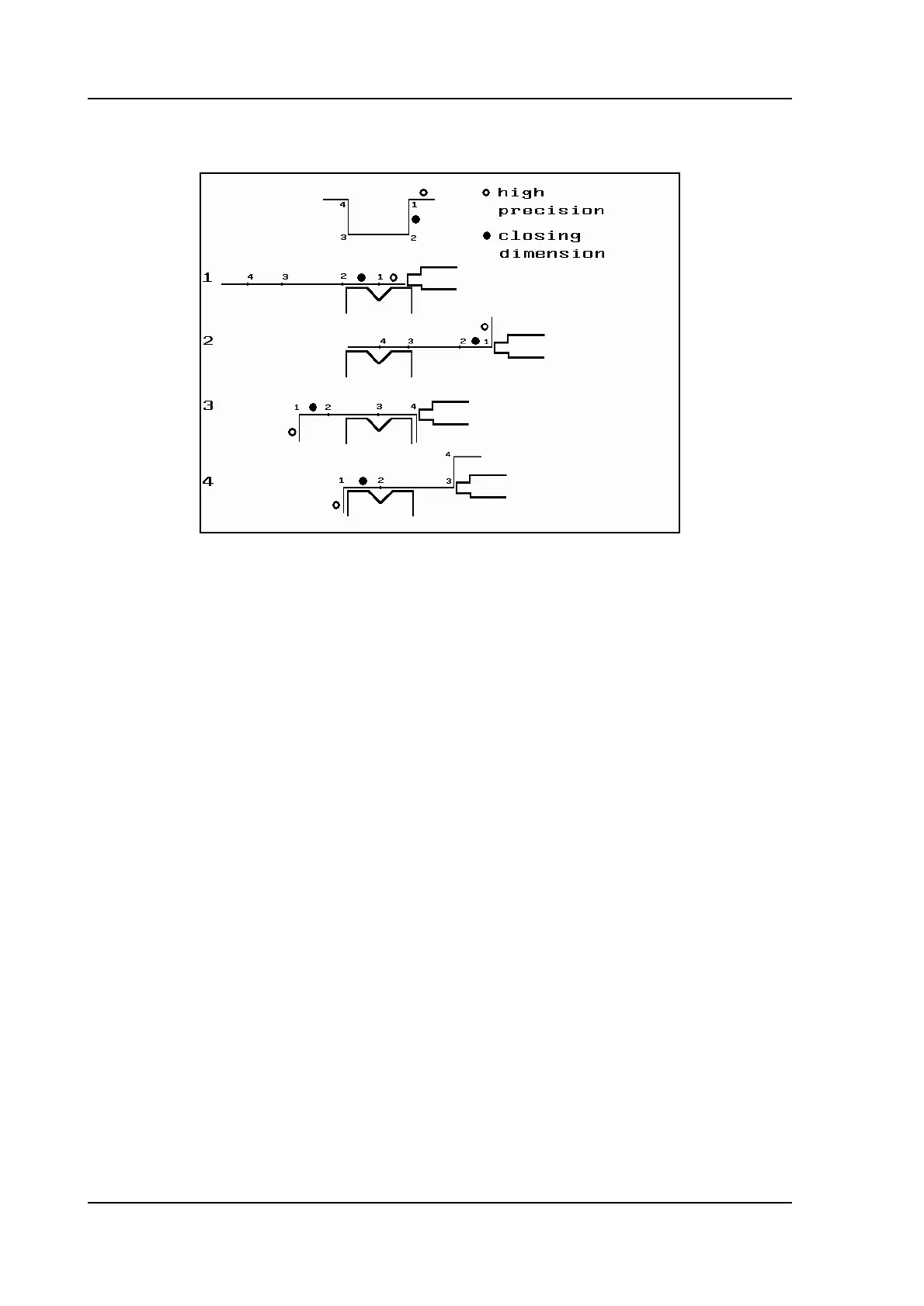

Example:
2.f
Line interval marked with the open circle should be, if possible, directly placed between back
stop and the centre of the die.
Notes:
Specifying line intervals with high precision and closing dimensions may result in longer pro-
duction time.
Also it will have priority over the "front extend ratio", if that is set to "comply if possible". See
section 2.5.
