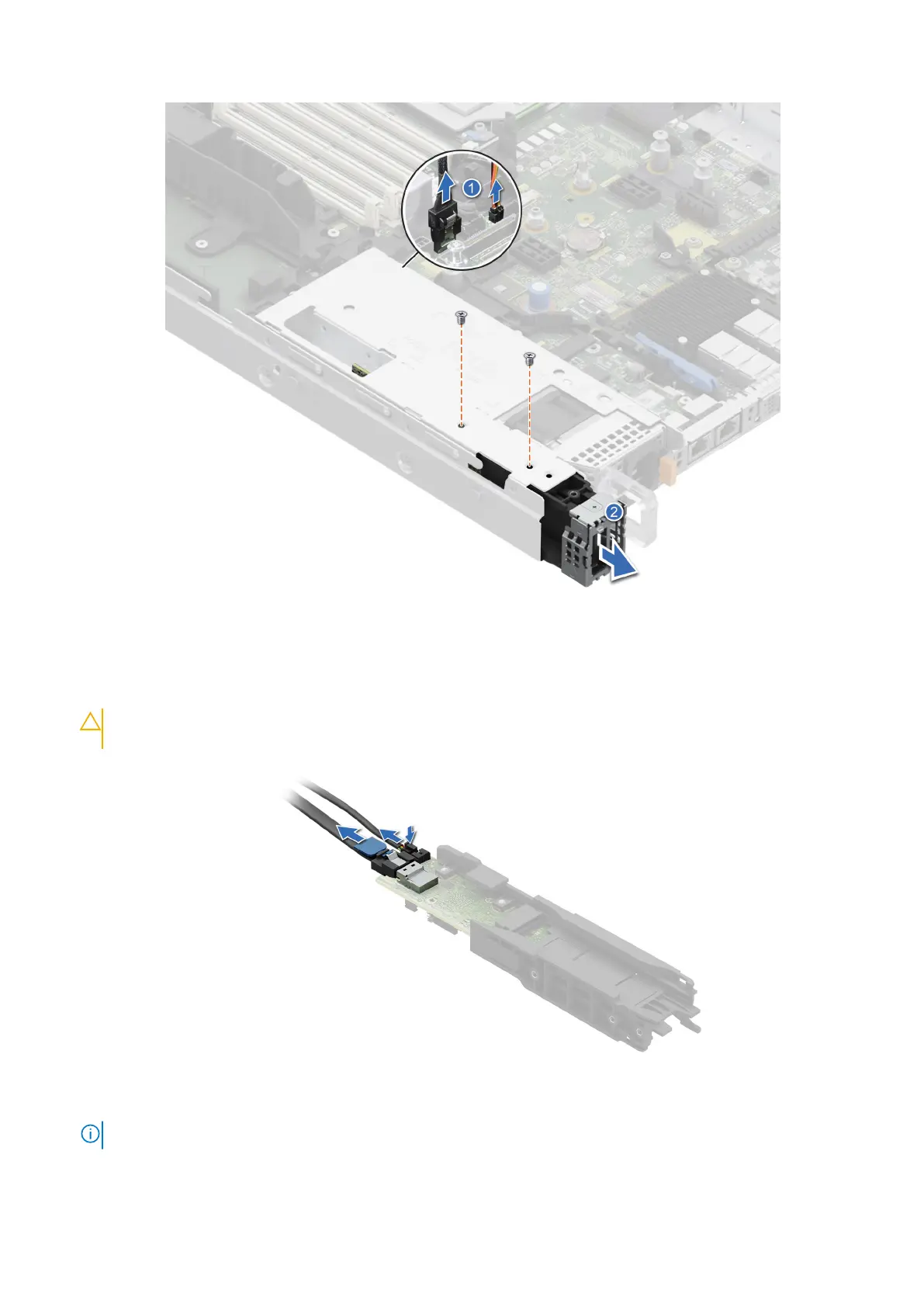

Figure 145. Removing the BOSS-N1 module
8. Pull the blue tag to remove the BOSS-N1 signal cable from the BOSS-N1 module.
9. Remove the BOSS-N1 power cable from the BOSS-N1 module.
CAUTION:
To avoid damaging the power cable connector, press the latch on the BOSS-N1 power cable before
disconnecting.
Figure 146. Removing the BOSS-N1 power and signal cable from the BOSS-N1 module
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 173
