System diagnostics and indicator codes
The diagnostic indicators on the system front panel display system status during system startup.
Topics:
• Power button LED
• Status LED indicators
• System health and system ID indicator codes
• iDRAC Quick Sync 2 indicator codes
• iDRAC Direct LED indicator codes
• LCD panel
• NIC indicator codes
• Power supply unit indicator codes
• Drive indicator codes
• EDSFF E3 drive led codes
• Using system diagnostics
Power button LED
The power button LED is located on the front panel of your system.

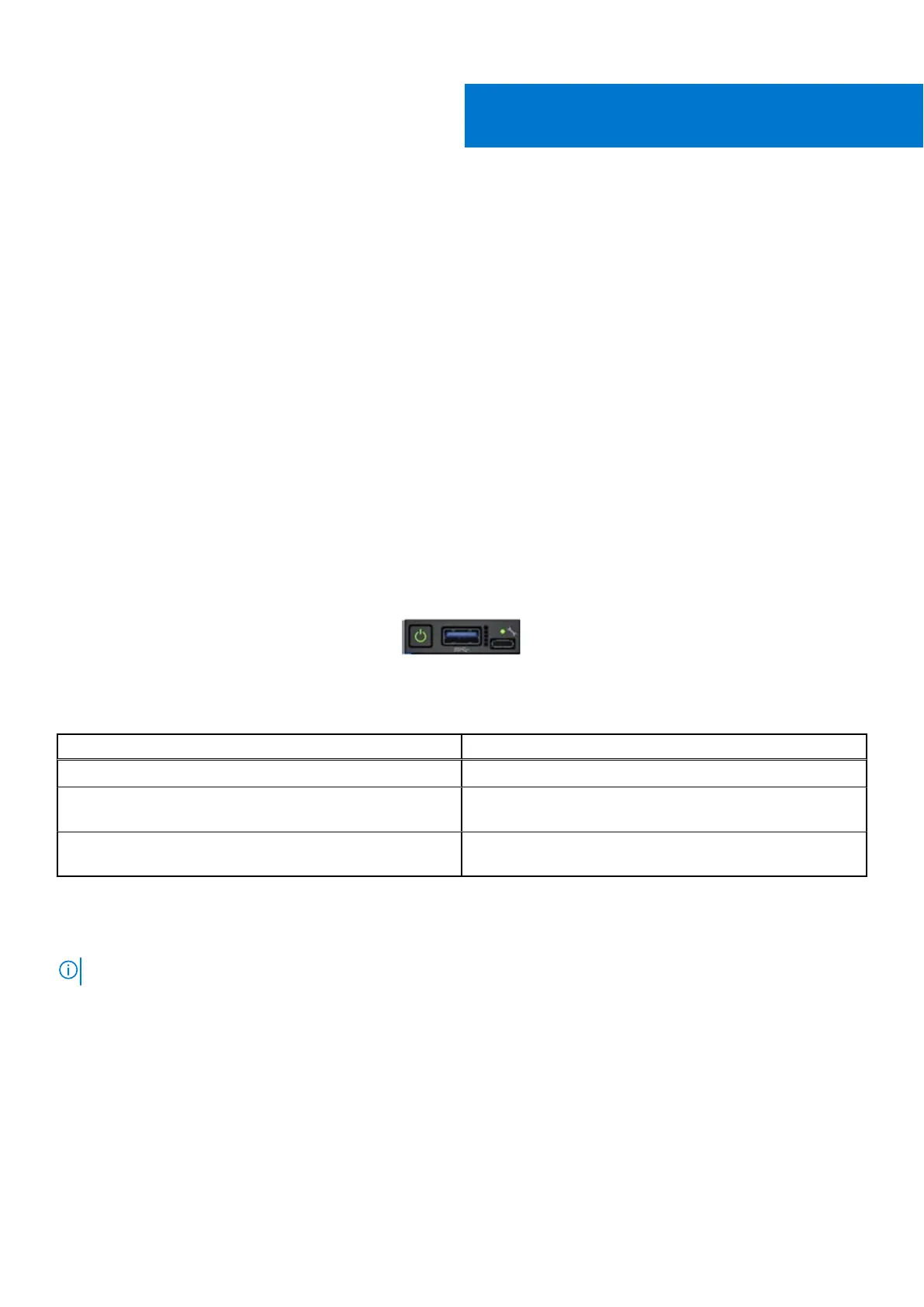

Figure 179. Power button LED
Table 106. Power button LED
Power button LED indicator code Condition
Off System is not operating, regardless of power supply available.
On System is operating, one or more of the non-standby power
supply units are active.
Slowly blinking System is performing powering on sequence and iDRAC is still
booting.
Status LED indicators
NOTE: The indicators display solid amber if any error occurs.
