Dell PowerEdge R6615 9JNDF - Installing the 14 x E3.S drive backplane

NOTE: To avoid damaging the backplane, ensure that you move the control panel cables from the cable routing clips
before removing the backplane.

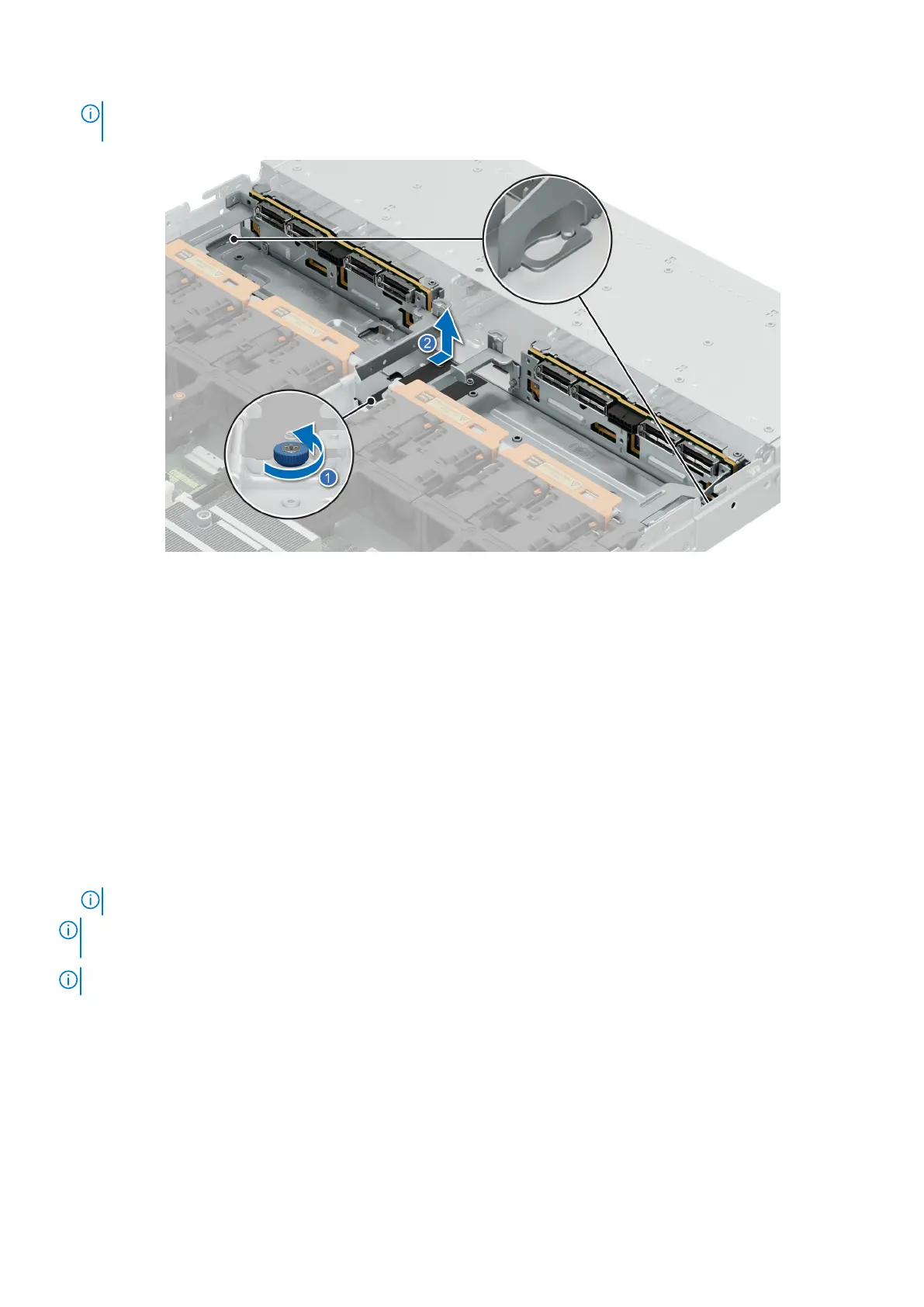

Figure 60. Removing the 14 x E3.S drive backplane
Next steps
1. Replace the 14 x E3.S drive backplane.
Installing the 14 x E3.S drive backplane
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the backplane cover.
4. If installed, remove the air shroud.
5. Remove the drives.
6. Observe and disconnect the drive backplane cables from the connector on the system board and backplane.
NOTE: Refer cable routing topic for more information.
NOTE: To avoid damaging the backplane, ensure to move the control panel cables from the cable routing clips before
removing the backplane.
NOTE: Route the cable properly when you replace it to prevent the cable from being pinched or crimped.
Steps
1. Align the slots on the drive backplane with the guides on the system.
2. Slide the drive backplane into the guides and lower the backplane until the blue release tab clicks into place.
3. Using a Phillips #1 screwdriver, tighten the captive screws on the backplane module.
