3 If necessary, disconnect any cables connected to the card.
4 Grasp the card by its top corners, and ease it out of its connector.
5 If you are removing the card permanently, install a filler bracket in the empty card-slot
opening.
If you need a filler bracket, contact Dell.
NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC
certification of the computer. The brackets also keep dust and dirt out of your computer.
6
Lower the retention arm and press it into place, securing the card(s) in the computer.

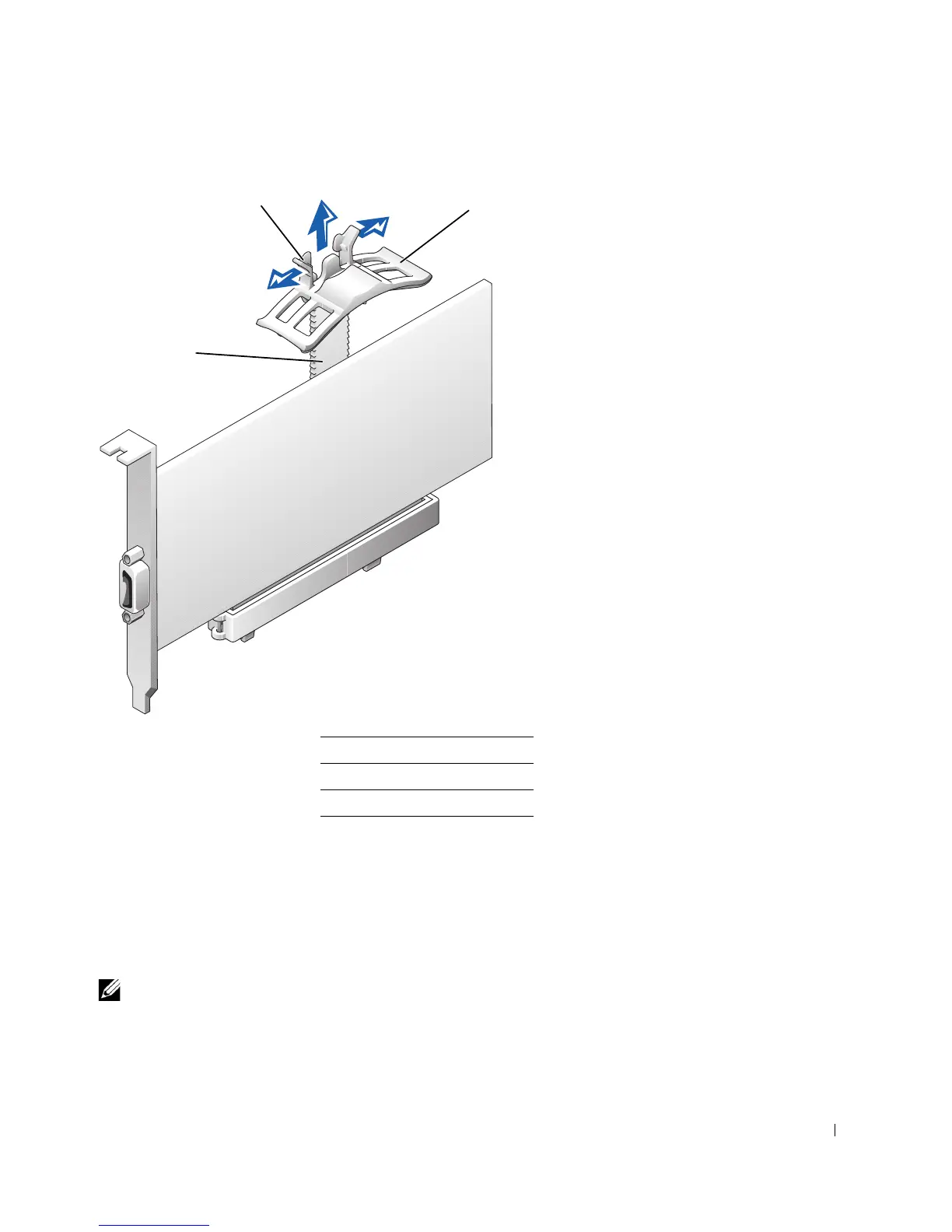

1 base
2 release tabs (2)
3 AGP retention spring
