Clearing Jams
279
9

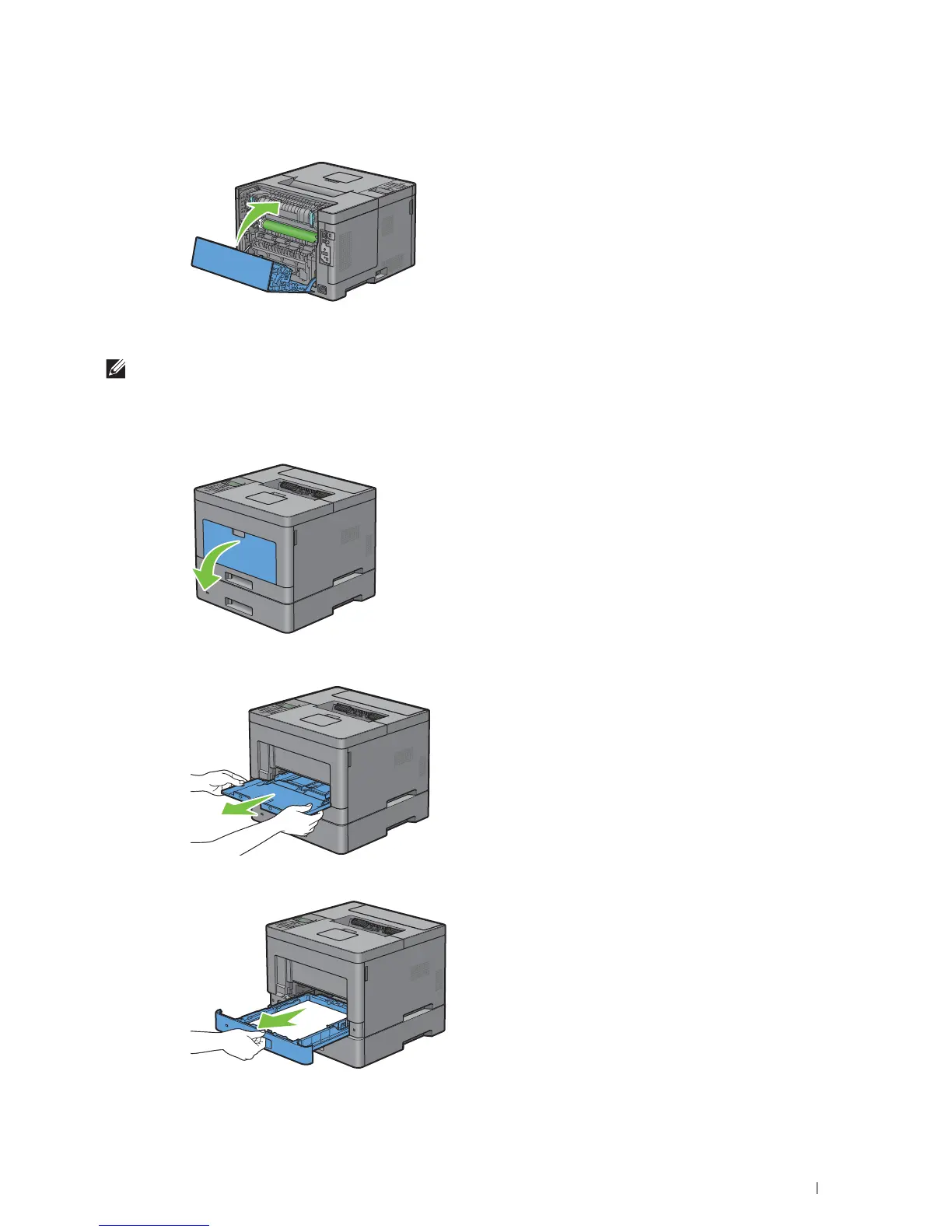

Close the rear cover.
Clearing Paper Jams From the Optional 550-Sheet Feeder
NOTE:
To resolve the error displayed on the LCD panel, you must clear all print media from the print media path.
If status code: 050-132 appears:
1
Open the MPF, or remove the remaining documents from the MPF.
2
Grasp both sides of the MPF, and then pull the MPF from the printer.
3
Pull tray1 from the printer about 200 mm.
To Next Page
