DVP15MC11T Operation Manual
11
1
 Mode 3

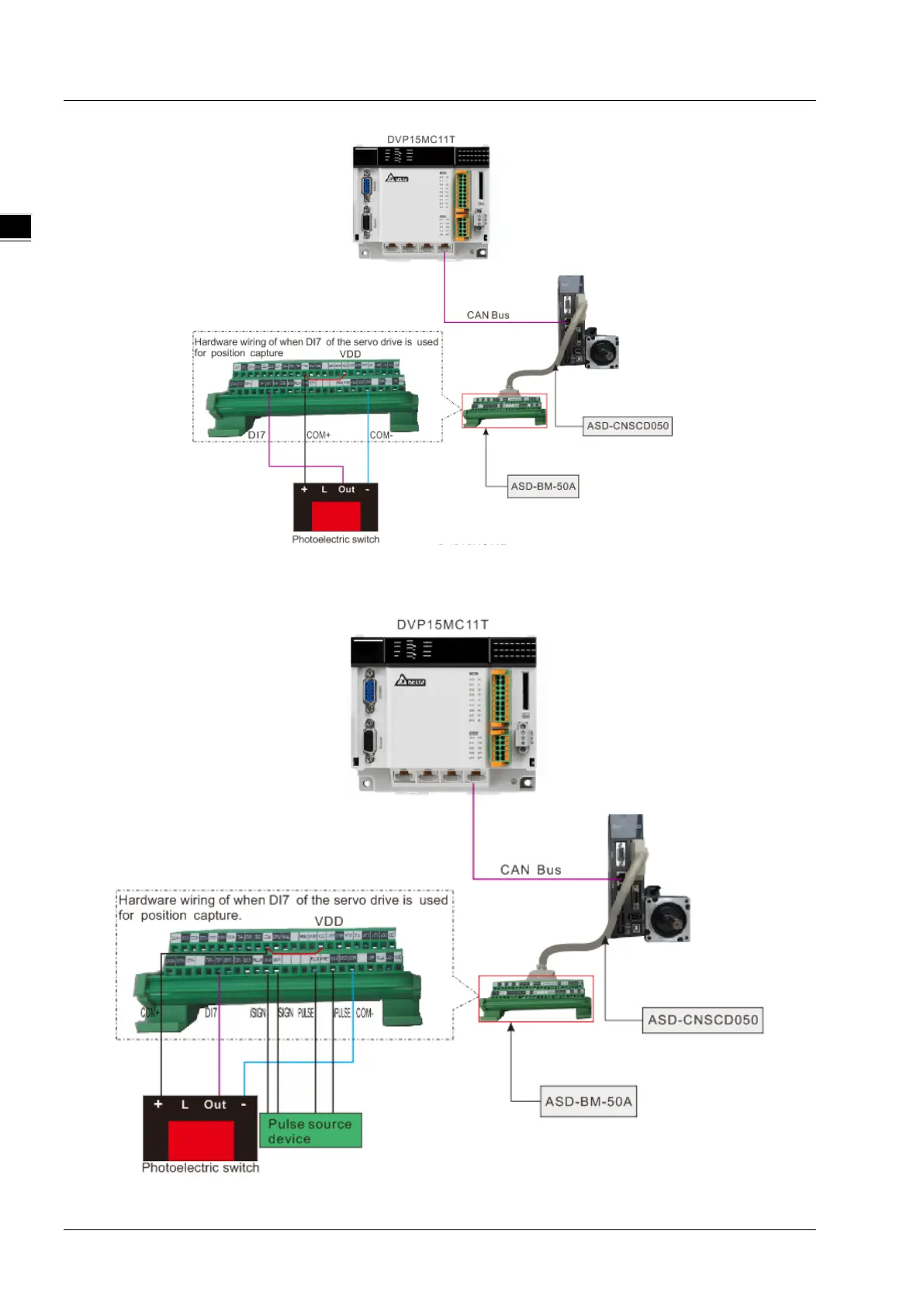

The external signal triggers the high-speed input point: DI7 of the servo drive. The captured position is
converted from the number of pulses CN1 port of the servo drive receives through axis parameters.
