Chapter 3 Wiring ASDA-A2
3-64 Revision February, 2017
3.11 CN8 Connector of Battery Box
CN8 connector on servo drive is the power supply for absolute battery box. Please refer to Chapter
12 for further information.

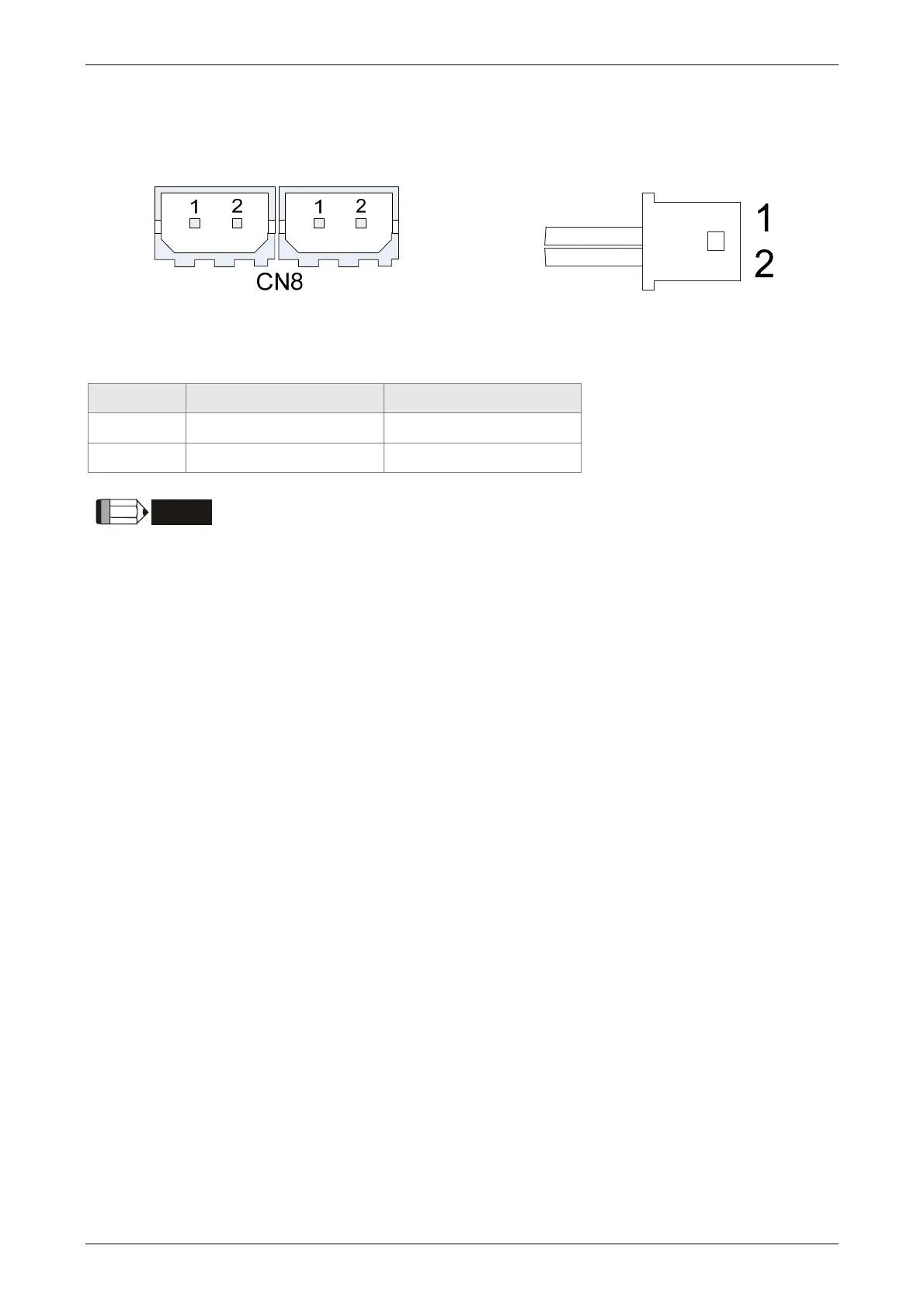

CN8 Connector of Battery Box
Connector
Pin Definition:
Pin No Connector1 Connector2
1 BAT+ BAT+
2 BAT- BAT-
NOTE
Due to the different design of servo drive model, CN8 might have one or two
connectors, which however has the same pin definition.
