Chapter 11 Specifications ASDA-A2
Revision February, 2017 11-31

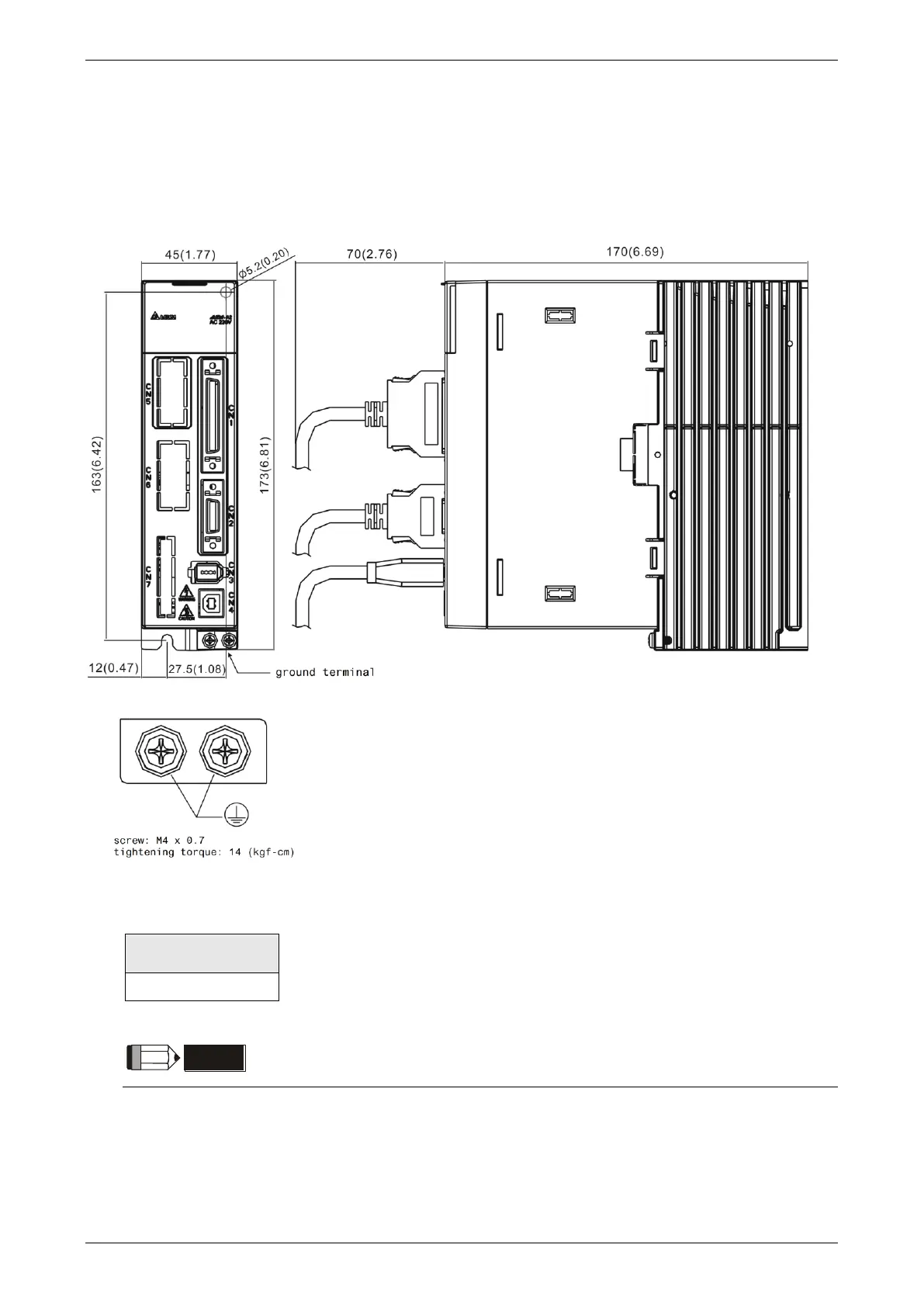

11.5 Dimensions of Servo Drive
11.5.1 220 V Series
ASD-A2-0121; ASD-A2-0221; ASD-A2-0421 (100 W ~ 400 W)
Weight
1.5 (3.3)
NOTE
1) Dimensions are in millimeters (inches); Weights are in kilograms (kg) and (pounds (lbs)).
2) Dimensions and weights of the servo drive may be revised without prior notice.
