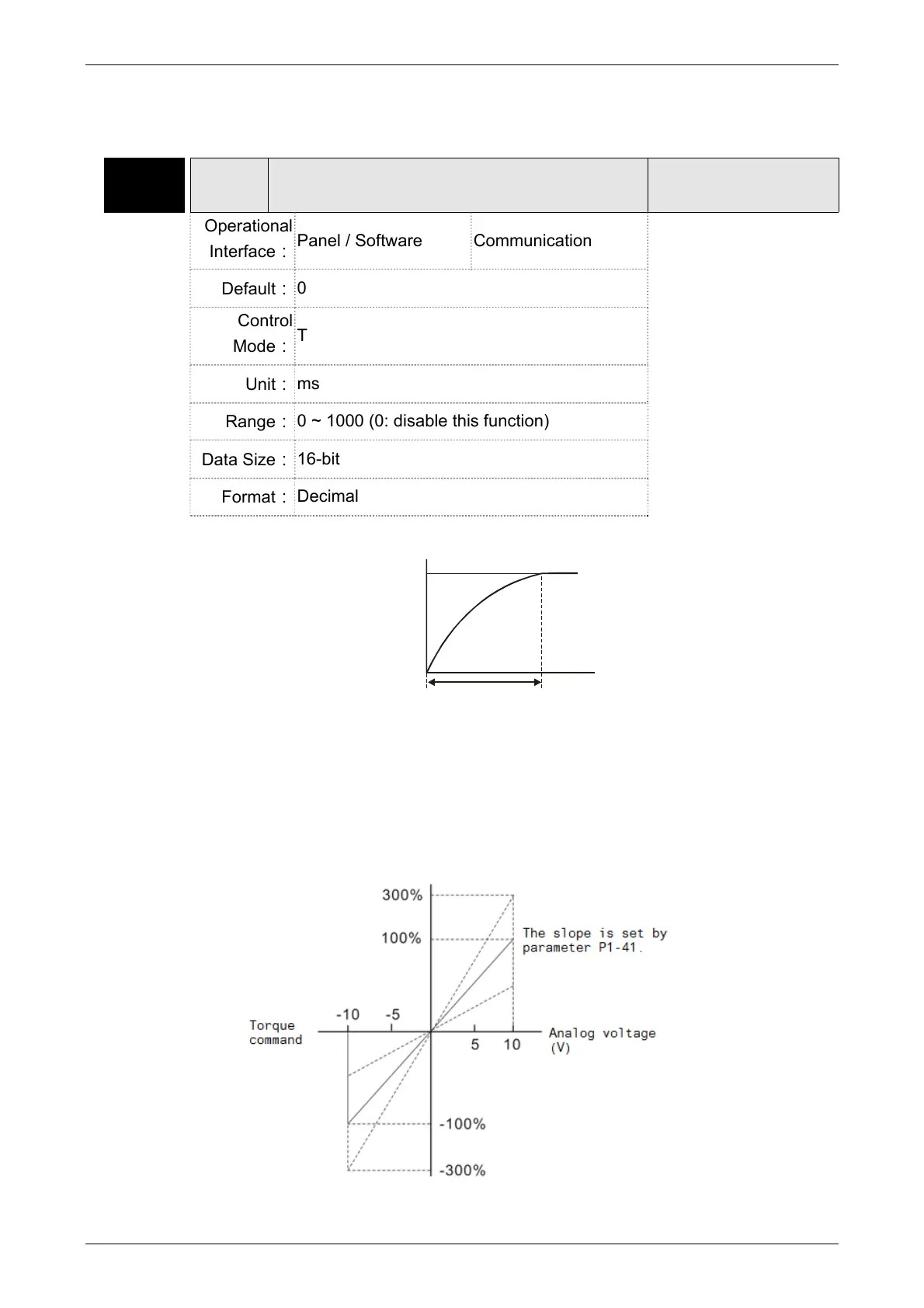

6.4.3 Smooth Torque Command
Related parameters:
P1-07 TFLT Analog Torque Command (Low-pass Filter)
Address: 010EH
010FH
Operational
Interface：
Panel / Software Communication
Related Section:
6.4.3
Default：
0
Control
Mode：
T
Unit：
ms
Range：
0 ~ 1000 (0: disable this function)
Data Size：
16-bit
Format：
Decimal
Settings：
0: Disabled
TFLT
Ta r g e t S p ee d
6.4.4 The Scaling of Analog Command
The motor torque command is controlled by the analog voltage deviation between T_REF and
GND and goes with parameter P1-41 to adjust the torque slope and its range.
