Chapter 4 Panel Display and Operation ASDA-A2
Revision February, 2017 4-5

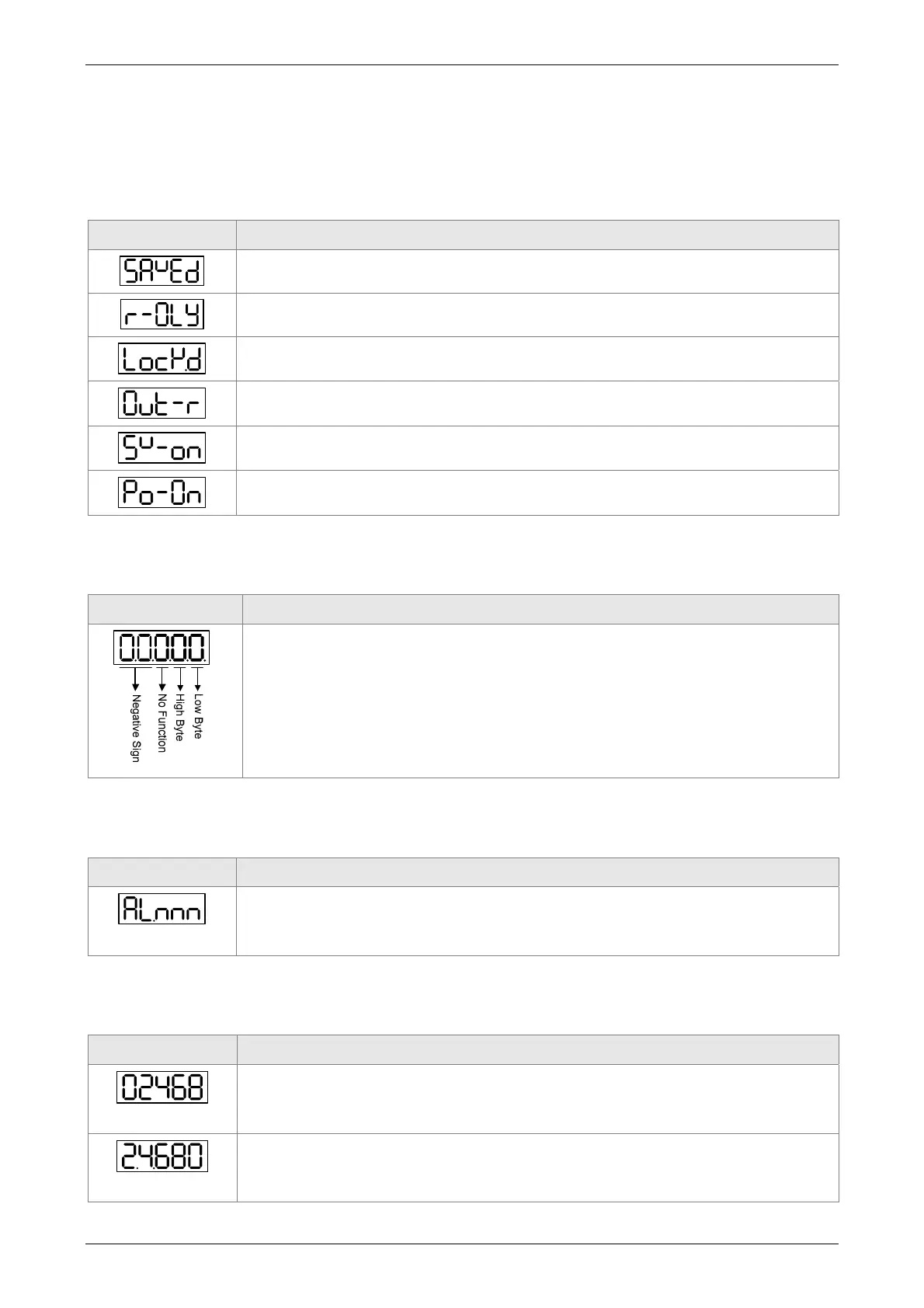

4.3 Status Display
4.3.1 Save Setting Display
When finishing editing parameter, press the SET Key to save the setting. The panel will display the
setting status according to the setting for a second.
Displayed Symbol Description
The setting value is saved correctly. (Saved)
Read-only parameter. Write-protected. (Read-Only)
Enter the wrong password or no password has been entered. (Locked)
Incorrect setting value or enter the reserved setting value. (Out of Range)
No entering is allowed when it is Servo ON. (Servo On)
Parameter will be effective after the servo drive is re-powered on. (Power On)
4.3.2 Decimal Point
Display Symbol Description
High byte / low byte indication: When the data is displayed in decimal 32 bits,
it is for indicating the current high or low byte.
Negative sign: When the data is displayed in decimal format, the two
decimal points in the left represents the negative sign, no matter it is
showed in 16 or 32 bits. When it is showed in hexadecimal format, it only
shows positive sign.
4.3.3 Alarm Message
Displayed Symbol Description
When there is an error of the drive, it will show ‘AL’ as the alarm sign and ‘nnn’
as the alarm code. For further explanation, please refer to Chapter 8, P0-01,
parameter description, or Chapter 10, Troubleshooting.
4.3.4 Positive and Negative Sign Setting
Displayed Symbol Description
When entering into the Editing Setting Mode, pressing UP / DOWN Key can
increase or decrease the displayed content. The SHIFT Key can change the
desired adjusted carry value. (The carry value is blinking at the moment.)
Pressing the SHIFT Key for two seconds can switch the positive (+) and
negative (-) sign. If the parameter is over the range after switching the positive
or negative sign, then it cannot be switched.
