Chapter 4 Panel Display and Operation ASDA-A2
Revision February, 2017 4-7

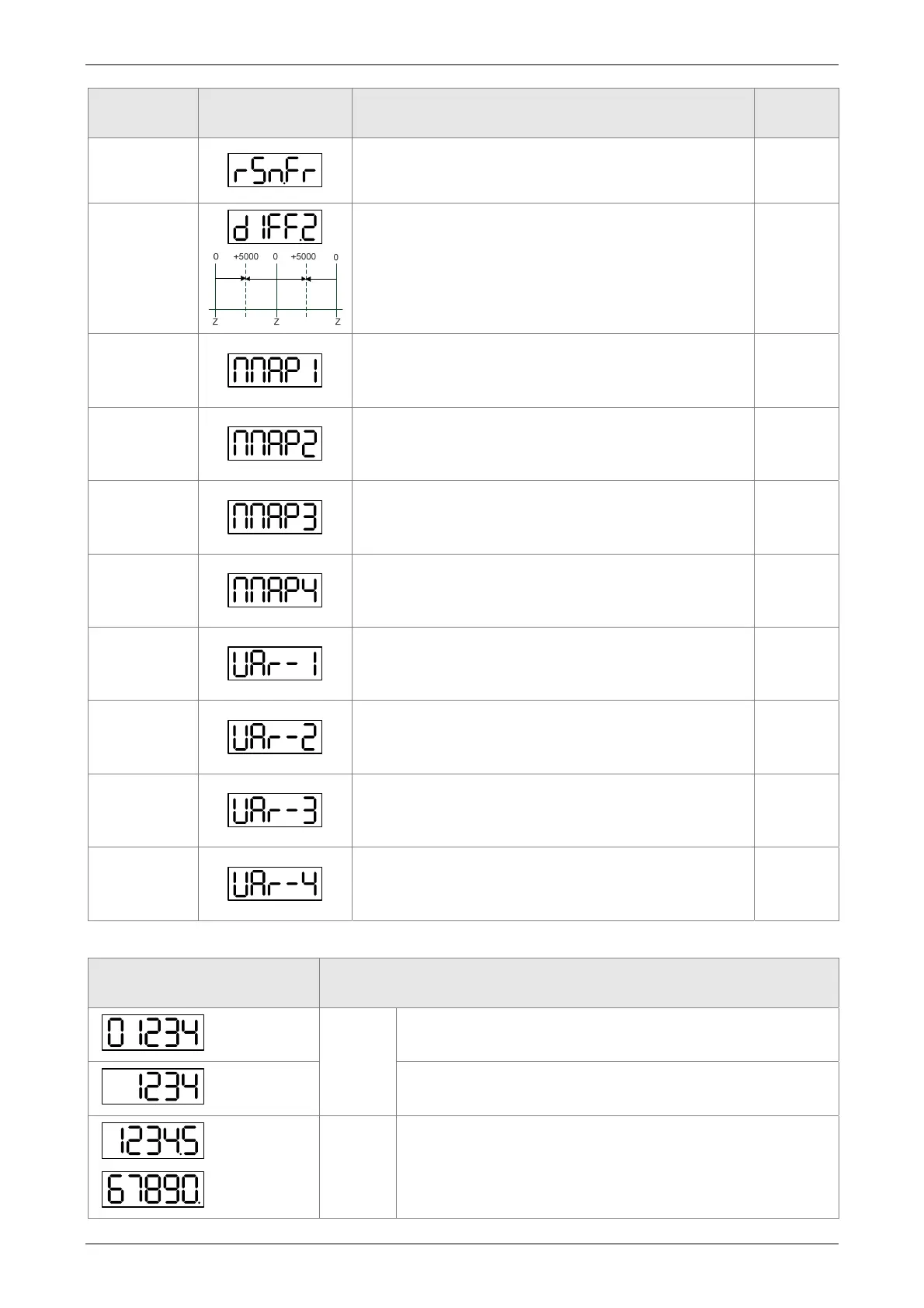

P0-02 Setting
Value
Monitor Displayed
Symbol
Description Unit
17
Resonance frequency (Low byte is the first
resonance and high byte is the second one).
[Hz]
18
The absolute pulse number of encoder Z phase
equals to the homing value, 0. It will be +5000 or -
5000 pulse when rotating in forward or reverse
direction.
-
19
Mapping parameter #1: shows the content of
parameter P0-25
(specify the mapping target by P0-35)
-
20
Mapping parameter #2: shows the content of
parameter P0-26
(specify the mapping target by P0-36)
-
21
Mapping parameter #3: shows the content of
parameter P0-27
(specify the mapping target by P0-37)
-
22
Mapping parameter #4: shows the content of
parameter P0-28
(specify the mapping target by P0-38)
-
23
Monitor variable #1: shows the content of parameter
P0-09
(specify the monitor variable code by P0-17)
-
24
Monitor variable #2: shows the content of parameter
P0-10
(specify the monitor variable code by P0-18)
-
25
Monitor variable #3: shows the content of parameter
P0-11
(specify the monitor variable code by P0-19)
-
26
Monitor variable #4: shows the content of parameter
P0-12
(specify the monitor variable code by P0-20)
-
Example of the displayed
value
Status Description
(Dec)
16 bits
If the value is 1234, it displays 01234 (shows in decimal
format).
(Hex)
If the value is 0x1234, it displays 1234 (shows in
hexadecimal format; the first digit does not show any).
(Dec high)
(Dec low)
32 bits
If the value is 1234567890, the display of the high byte is
1234.5 and displays 67890 as the low byte (shows in
decimal format).
