VFD EtherNet/IP Option Card
Option Card
Application Manual
50

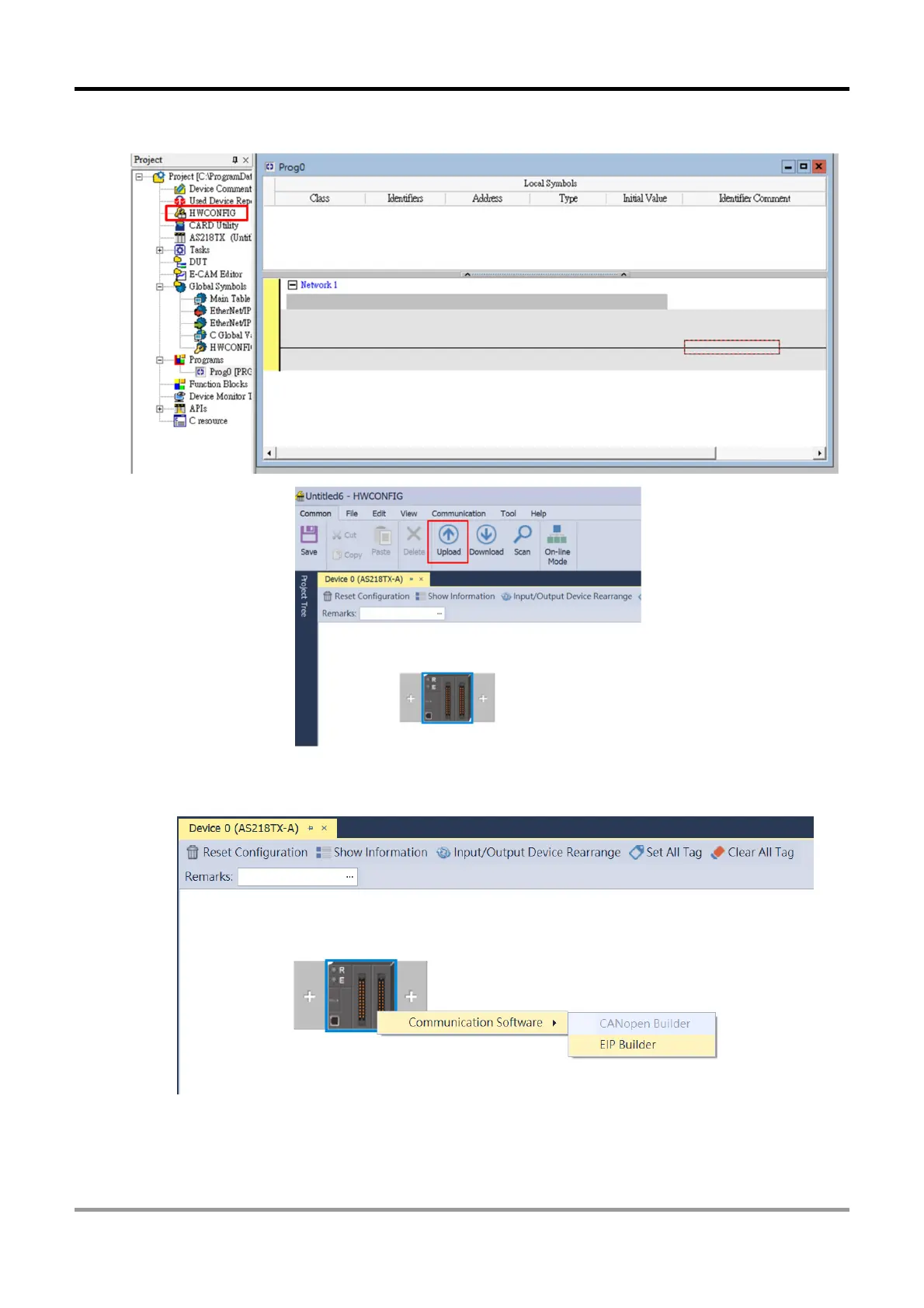

6. In
the
Project
panel, open
HWCONFIG
, and then click
Upload
to upload PLC parameters.
7.
After the upload is finished, right-click the device figure, and click
Communication Software
→
EIP Builder
to open EIP
Builder
.
49
51
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction to Ethernet/Ip
6
2 Communication Specification
6
Supported Object
6
3 Hardware and Installation
7
CMM-Eip02
7
Product Profile
7
Electrical Specifications and Environment
7
CMM-Eip03
8
Product Profile
8
Electrical Specifications and Environment
8
CMC-Eip01
9
Product Profile
9
Electrical Specifications and Environment
9
CMC-Eip02
10
Product Profile
10
Electrical Specifications and Environment
10
Mounting Position of Option Card CMM-EIP
11
Option Card Mounting Position 1
12
Option Card Mounting Position 2 (Frame A-D)
13
Grounding
14
Connections of Option Card CMM-EIP
16
Connection Cable of Option Cards
17
Mounting Position of Option Card CMC-EIP
18
Mounting and Detaching Option Card CMC-EIP
21
Mounting Option Card
21
Detaching Option Card
22
Network Installation
23
Single-Port Communication Device
24
Dual-Port Communication Device
25
PC Software
26
4 Settings before Using
27
Drive Setting
27
Ethernet/Ip Control Method Standard
27
Using Delta-Defined Traditional Standard (20Xx)
28
Using Delta-Defined New Standard (60Xx)
29
Dcisoft Software Setting
31
Network Parameter Setting for Option Card
32
Online Monitoring Drive Parameters
35
IP Filter Protection
36
Password Protection: Setting, Unlocking, and Missing
38
Permission and Stop Setting
42
5 Operation Demonstration of Option Card
47
Ethernet/Ip Implicit Messaging
47
Delta's PLC - a Demonstration of AS300
48
A Demonstration of Rockwell Automation PLC
54
Implicit Messaging Communication Address
56
Ethernet/Ip Explicit Messaging
60
Ring-Based Network Functions
61
6 Troubleshooting
62
LED Indicators
62
Drive Warning / Fault Code
63
Fault Clearing
64
Appendix A. Ethernet/Ip Service and Object
65
Object
65
Supported Object
66
Supported Data Type
66
Identity Object (Class Code: 0X01)
67
Service Code
67
Instance Code: 0X00
67
Instance Code: 0X01
67
Message Router Object (Class Code: 0X02)
68
Service Code
68
Instance Code: 0X00
68
Instance Code: 0X01
68
Assembly Object (Class Code: 0X04)
69
Service Code
69
Instance Code: 0X00
69
Instance Code: 0X69, 0X68, 0X80, 0Xc7
69
Connection Manager Object (Class Code: 0X06)
70
Service Code
70
Instance Code: 0X00
70
Instance Code: 0X01
70
Device Level Ring Object (Class Code: 0X47)
71
Service Code
71
Instance Code: 0X00
71
Instance Code: 0X01
71
Qos Object (Class Code: 0X48)
72
Service Code
72
Instance Code: 0X00
72
Instance Code: 0X01
72
TCP / IP Interface Object (Class Code: 0Xf5)
73
Service Code
73
Instance Code: 0X00
73
Instance Code: 0X01
73
Ethernet Link Object (Class Code: 0Xf6)
74
Service Code
74
Instance Code: 0X00
74
Instance Code: 0Xn (Ethernet Port Number)
74
VFD Data Object (Class Code: 0X300)
75
Service Code
75
Instance Attributes
75
VFD Data Object (Class Code: 0X301)
76
Service Code
76
Instance Code: 0X01
76
4
