Switch OFF the Manual Bypass Switch (Q3).
7

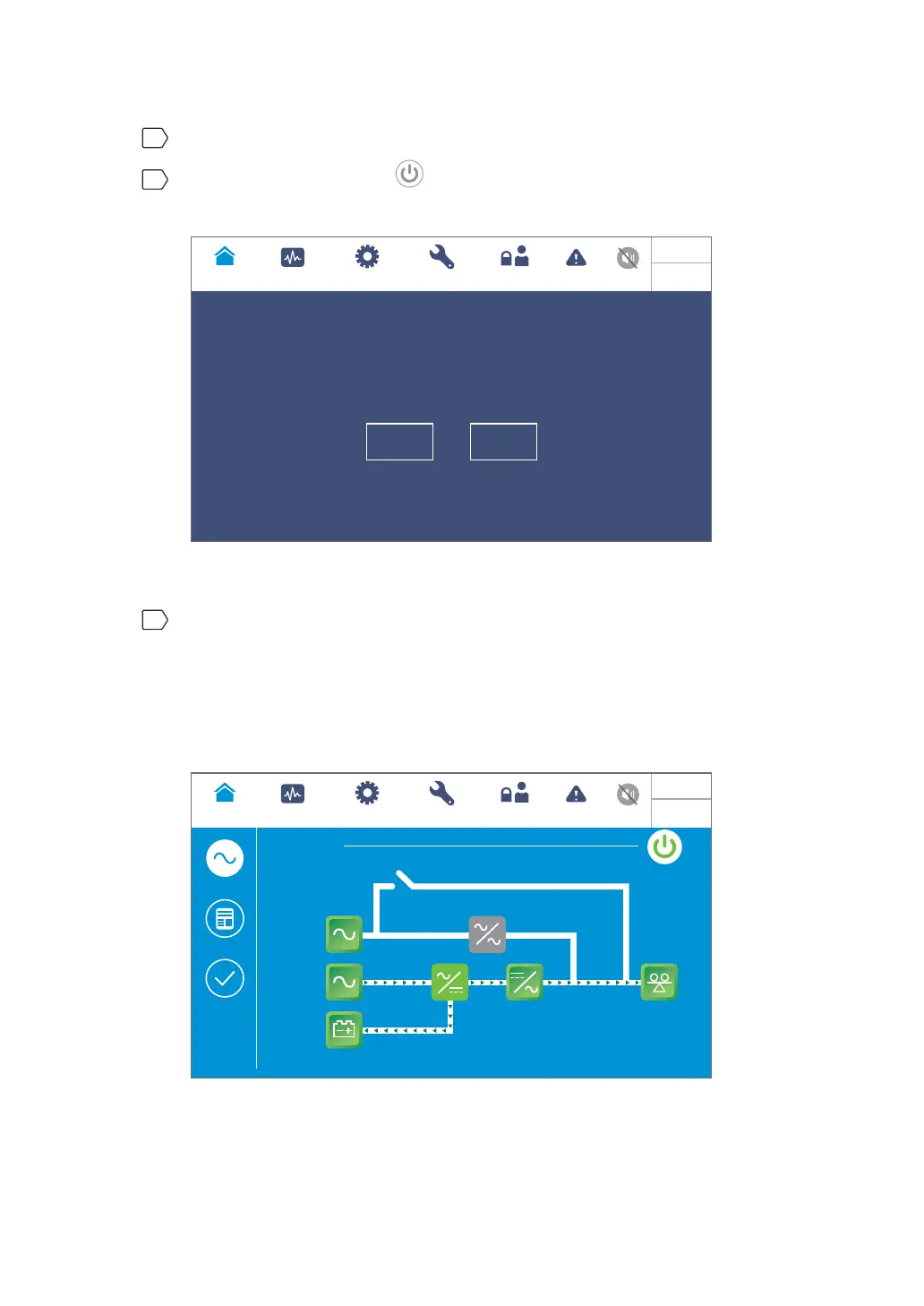

Press the ON/ OFF button ( ) once and the following screen will pop up to ask you
if you want to power on the UPS’s inverter. Please select ‘YES’.
Bypass
MEASUREMENT
Power Flow
UPS-1.1 SETUP
MAINTENANCE EVENT LOG
POWER ON ?
No
Yes
LOG IN
User
09:30
May 10,2018
(Figure 6-19: Power on Reminder Screen)
8
After selection of ‘YES’ to start up the UPS’s inverter, each power module will start
up and perform self-inspection. At the same time, the system begins synchronization
with the bypass AC source. After the self-inspection is completed, the UPS will
automatically transfer to run in online mode, the tri-color LED indicator will illuminate
green and the following screen will appear. For the tri-color LED indicator location,
please refer to Figure 2-12.
On-Line
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
Load
30 %
MEASUREMENT
Power Flow
UPS-1.1 SETUP MAINTENANCE EVENT LOG
Power Flow
Summary
System Status
LOG IN
User
09:30
May 10,2018
(Figure 6-20: Online Mode Screen)
