Delta Ultron HPH series User Manual

7-19
7
LCD Display & Settings
01
02
03
04
On-Line
MEASUREMENT
System Status
UPS-1.1 SETUP MAINTENANCE EVENT LOGLOG IN
Administrator
Power Flow
Summary
System Status
SYSTEM STATUS
09:30
May 10,2018
1
2
4
3
5
2
1
5
3 4 5
STS Module Status
Power Module Status
Parallel Communication Card Status
System Control Card Status
Auxiliary Power Card Status

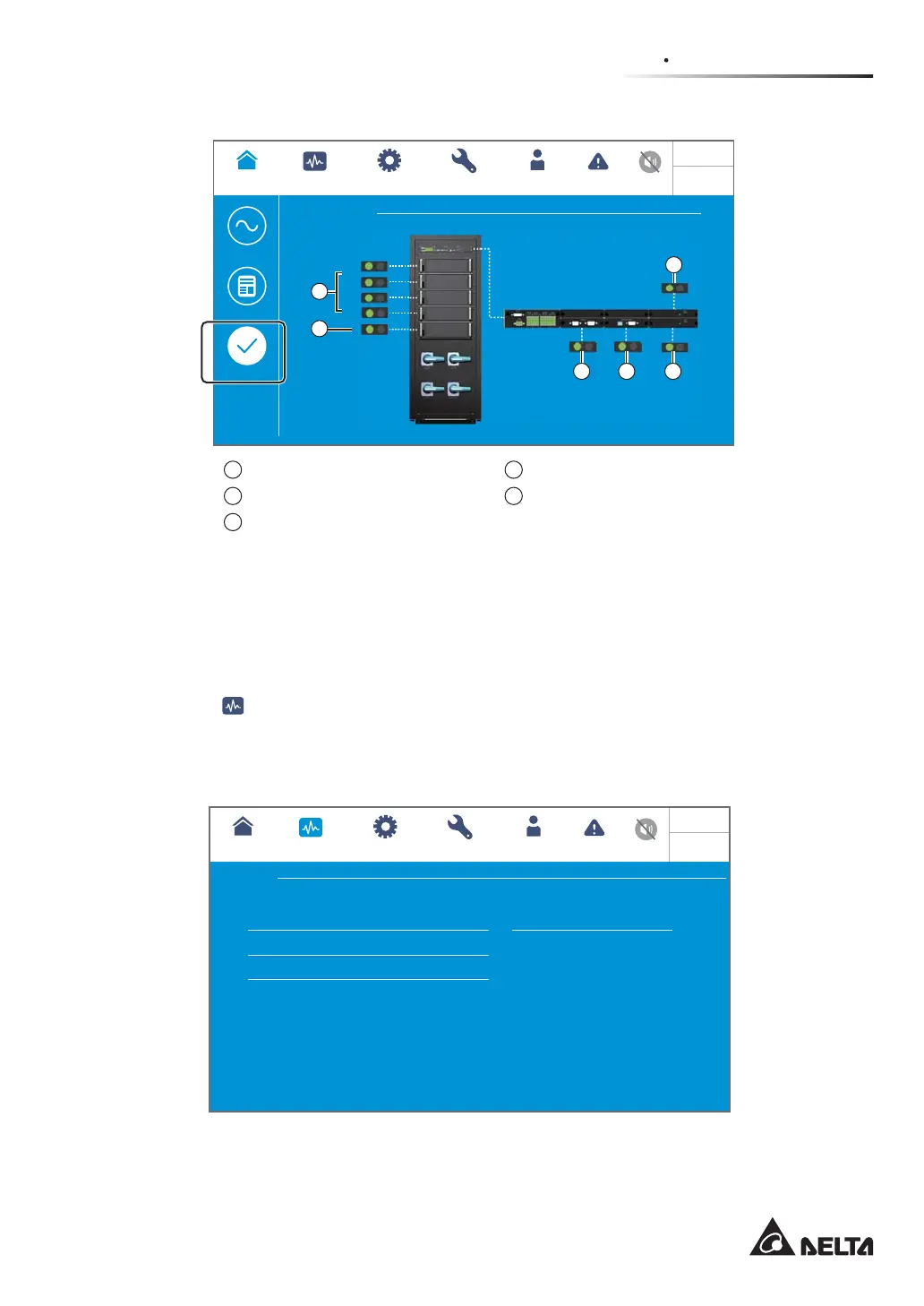

7.9 Check System Readings
7.9.1 Main Input
Path:
MEASUREMENT
ĺ0DLQ,QSXW
After entering the MAIN INPUT VFUHHQVKRZQLQWKH¿JXUHEHORZWKHXVHUFDQLQTXLUH
about the Phase Voltage, Line Voltage, Current and Frequency readings.
UPS-1.1
220.0
380.0
-
220.0
380.0
-
220.0
380.0
-
50.0
On-Line
SETUP MAINTENANCE EVENT LOGLOG IN
Administrator
MEASUREMENT
Main Input
MAIN INPUT
Phase Voltage(V)
Line Voltage(V)
Current(A)
Frequency(Hz)
09:30
May 10,2018
