2-13
2
Introduction
(Rear View after
Rear Panel Removal)
Grounding Terminals
for Top Wiring
( & )
Grounding Terminals
for Bottom Wiring
( & )

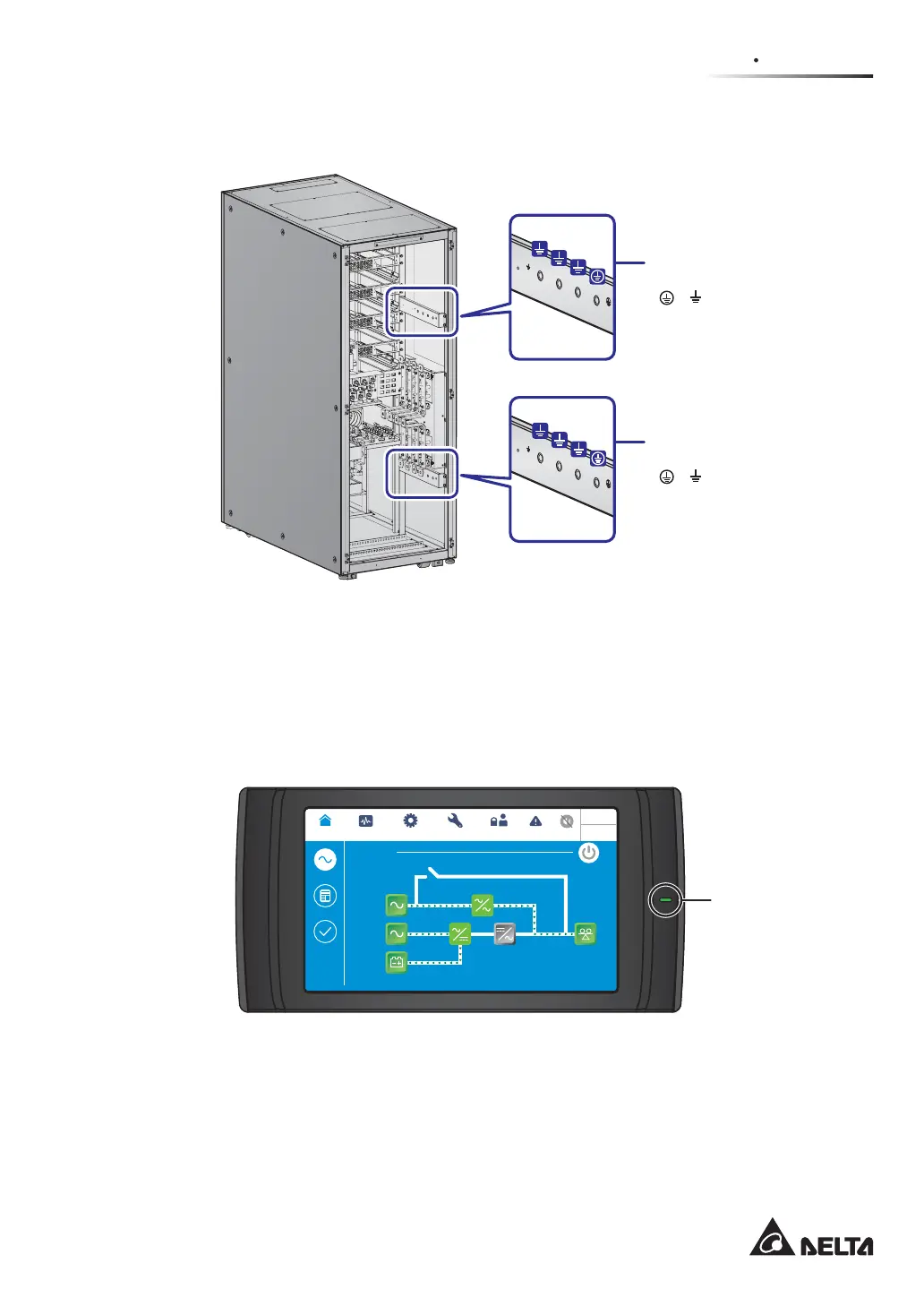

(Figure 2-11: Wiring Terminals_ Grounding )
2.8 Tri-color LED Indicator & Buzzer
Please see Figure 2-12 for the location of the tri-color LED Indicator. For information about
the tri-color LED indicator, please refer to Table 2-1.
Bypass
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
Load
30 %
MEASUREMENT
Power Flow
UPS-1.1 SETUP
MAINTENANCE EVENT LOG
Power Flow
Summary
System Status
LOG IN
User
09:30
May 10,2018
Tri-color LED
Indicator
(Figure 2-12: Tri-color LED Indicator Location )
