Delta Ultron HPH series User Manual

7-18
Ultron HPH Series
On-Line
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
Load
30 %
MEASUREMENT
Power Flow
UPS-1.1 SETUP MAINTENANCE EVENT LOG
Power Flow
Summary
System Status
LOG IN
Administrator
09:30
May 10,2018

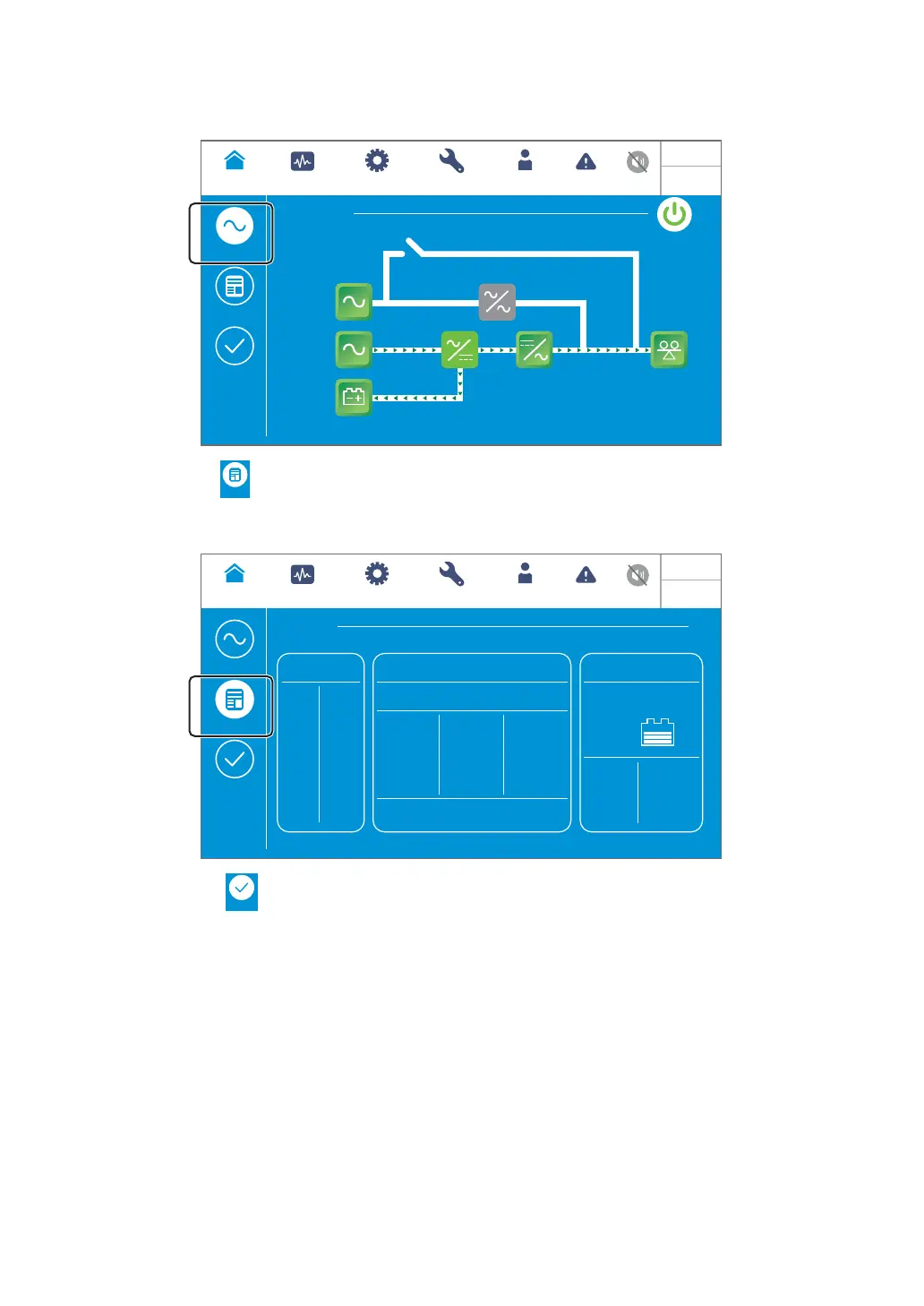

Press the
Summary
button to check information related to input, output and battery. Please refer
WRWKH¿JXUHEHORZ
220.0 V
220.0 V
220.0 V
220.0 V
220.0 V
220.0 V
220.0 V
220.0 V
220.0 V
227 A
227 A
227 A
+272 V
-272 V
30 %
30 %
30 %
05:00
90 %
Frequency 50.0 Hz
+0 A
-0 A
50.0 kVA
50.0 kW
50.0 kVA
50.0 kW
50.0 kVA
50.0 kW
On-Line
MEASUREMENT
Summary
UPS-1.1 SETUP MAINTENANCE EVENT LOGLOG IN
Administrator
Power Flow
Summary
System Status
SUMMARY
Voltage
Output Power
Runtime Remaining
Voltage
Charge
Current
Current Load
Main
Voltage
Bypass
Voltage
Input Output Battery
09:30
May 10,2018
Press the
System Status
button to check the status of the STS module, power modules, parallel
communication card, system control card and auxiliary power cards. Please refer to the
¿JXUHEHORZ
