Delta Ultron HPH series User Manual

6-20
Ultron HPH Series

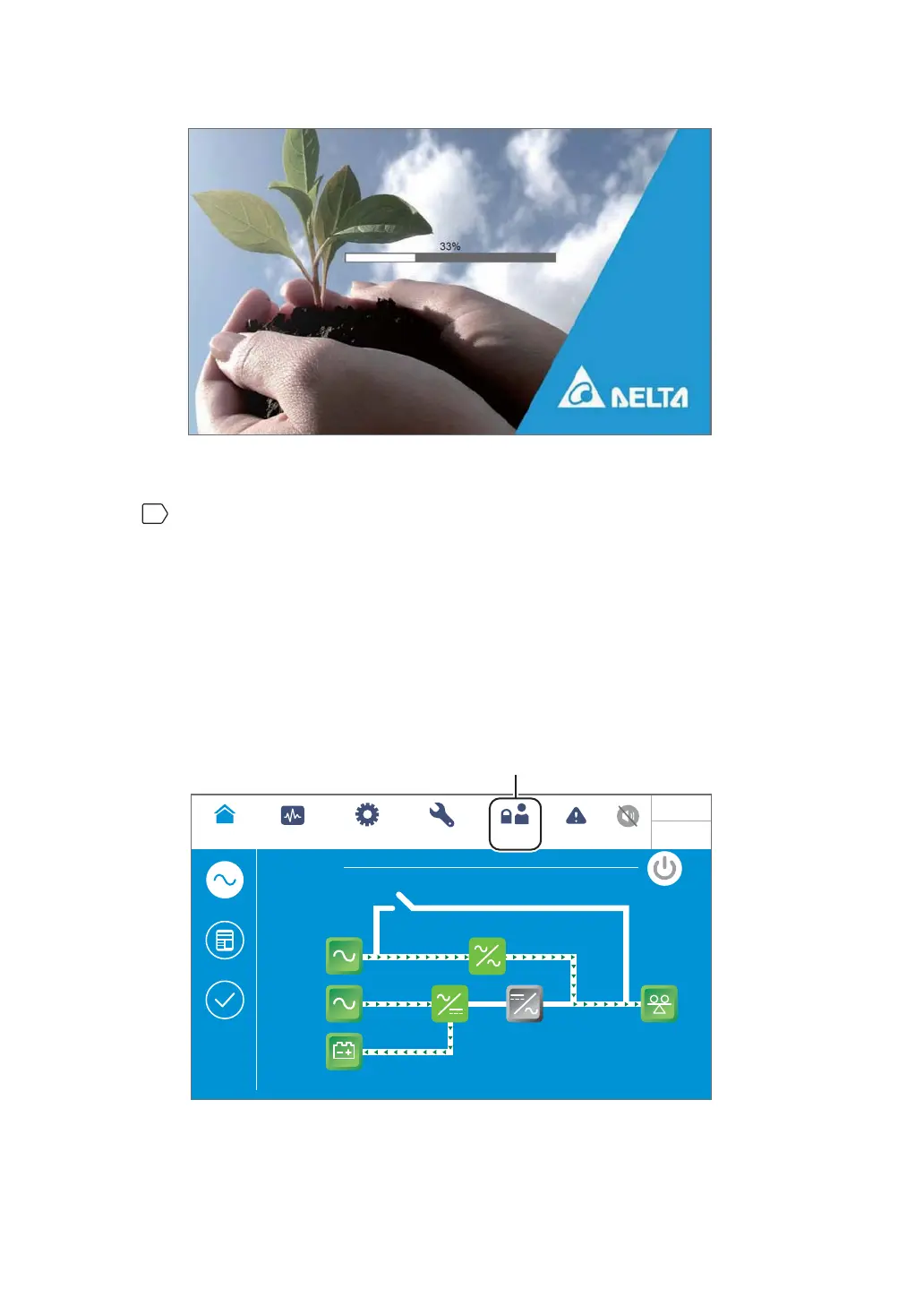

(Figure 6-21: LCD Initial Screen)
6
After 20 seconds of LCD initialization, the LCD will enter the Main Screen. For the
Main Screen information, please refer to 7.6 Main Screen.
Now, each power module keeps running and its LED indicator remains green. After
each power module finishes establishing DC BUS voltage, the charger will start to
charge the batteries.
If the bypass AC source is within the normal range, the UPS will transfer to run in
bypass mode, the LCD screen will show as Figure 6-22 and the tri-color LED indicator
will illuminate yellow. For the location of the tri-color LED indicator, please refer to
Figure 2-12.
Bypass
POWER FLOW
Maintenance
Bypass
Bypass
Mains
90 %
5 mins
Load
30 %
MEASUREMENT
Power Flow
UPS-1.1 SETUP
MAINTENANCE EVENT LOG
Power Flow
Summary
System Status
LOG IN
User
09:30
May 10,2018
User Login
( Figure 6-22: Main Screen_ User Login)
