Cable indications
Signal direction
Audio and Video cable

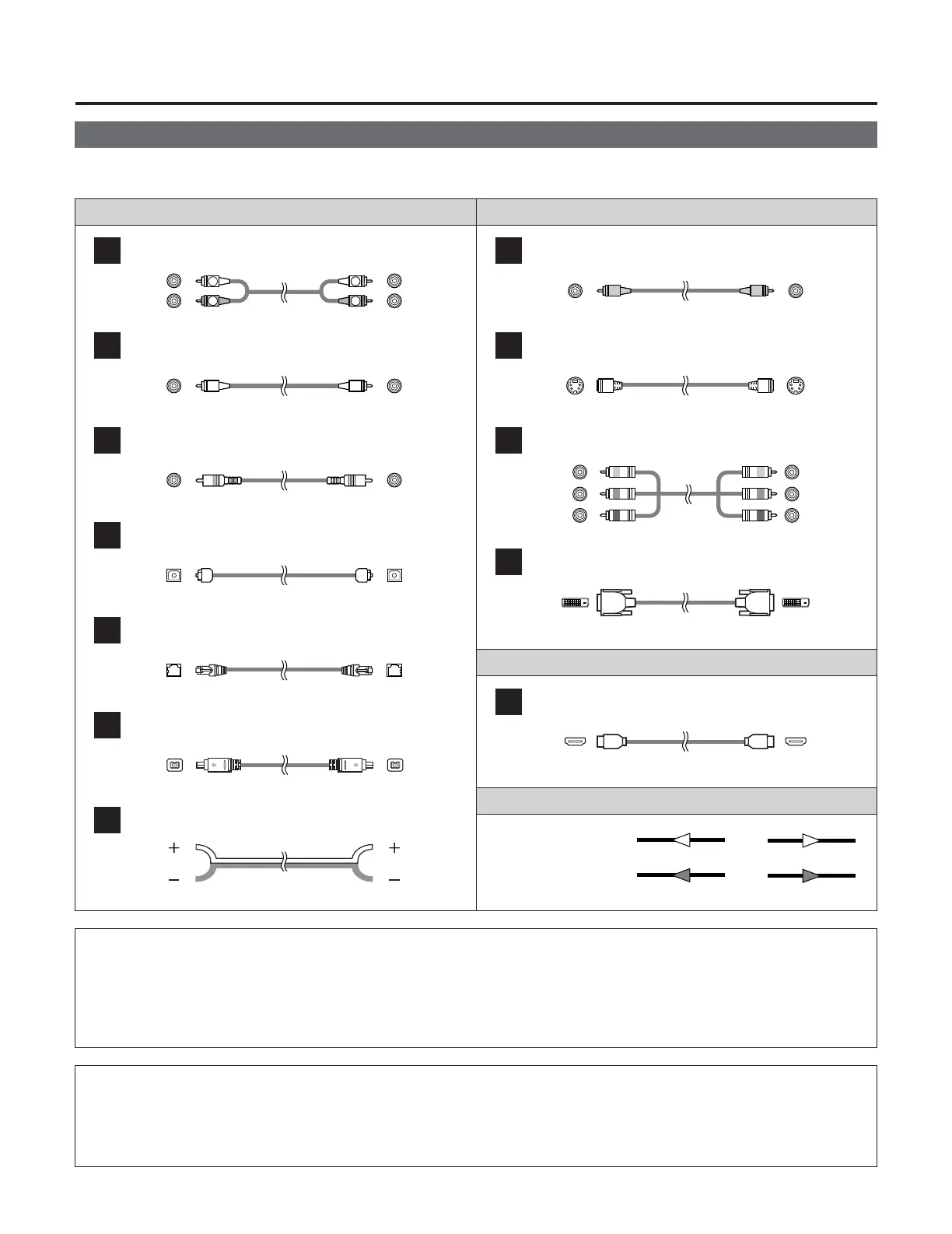

• The hookup diagrams on the subsequent pages assume the use of the following optional connection cables (not supplied).
Video cableAudio cable
NOTE:
• Do not plug in the power supply cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Note that binding pin-plug cables together with power supply cords or placing them near a power transformer will result
in generating hum or other noise.
Analog terminal (Stereo)
A
(Orange)
(Green)
(Blue)
(Red)
Pin-plug cable
Analog terminal (Monaural, for subwoofer)
B
Pin-plug cable
Digital terminal (Coaxial)
C
Coaxial cable (75 Ω/ohms pin-plug cable)
Digital terminal (Optical)
D
Optical cable (Optical fiber cable)
DENON LINK terminal
E
DENON LINK cable
IEEE1394 terminal
F
4-pin, S400 IEEE1394 cable
Speaker terminal
G
Speaker cable
Video terminal
H
Video cable (75 Ω/ohms video pin-plug cable)
S-Video terminal
I
S-Video cable
Component video terminal
J
Component video cable
DVI-D terminal
K
24-pin DVI-D cable
HDMI terminal
L
HDMI cable
(Yellow)
Audio signal
Video signal
(Y)
(P
B
/C
B
)
(P
R
/C
R
)
IN OUT OUT IN
IN OUT OUT IN
(White)
(Red)
NOTE:
• Connecting a LD (laser disc) player with a Dolby Digital RF Output
The AVR-4806 does not have a DD RF demodulator function. Therefore, you need to use a commercially available outboard
DD RF demodulator and connect its digital output to one of the AVR-4806 available digital inputs. Refer to the demodulator’s
owner’s manual for further information.
