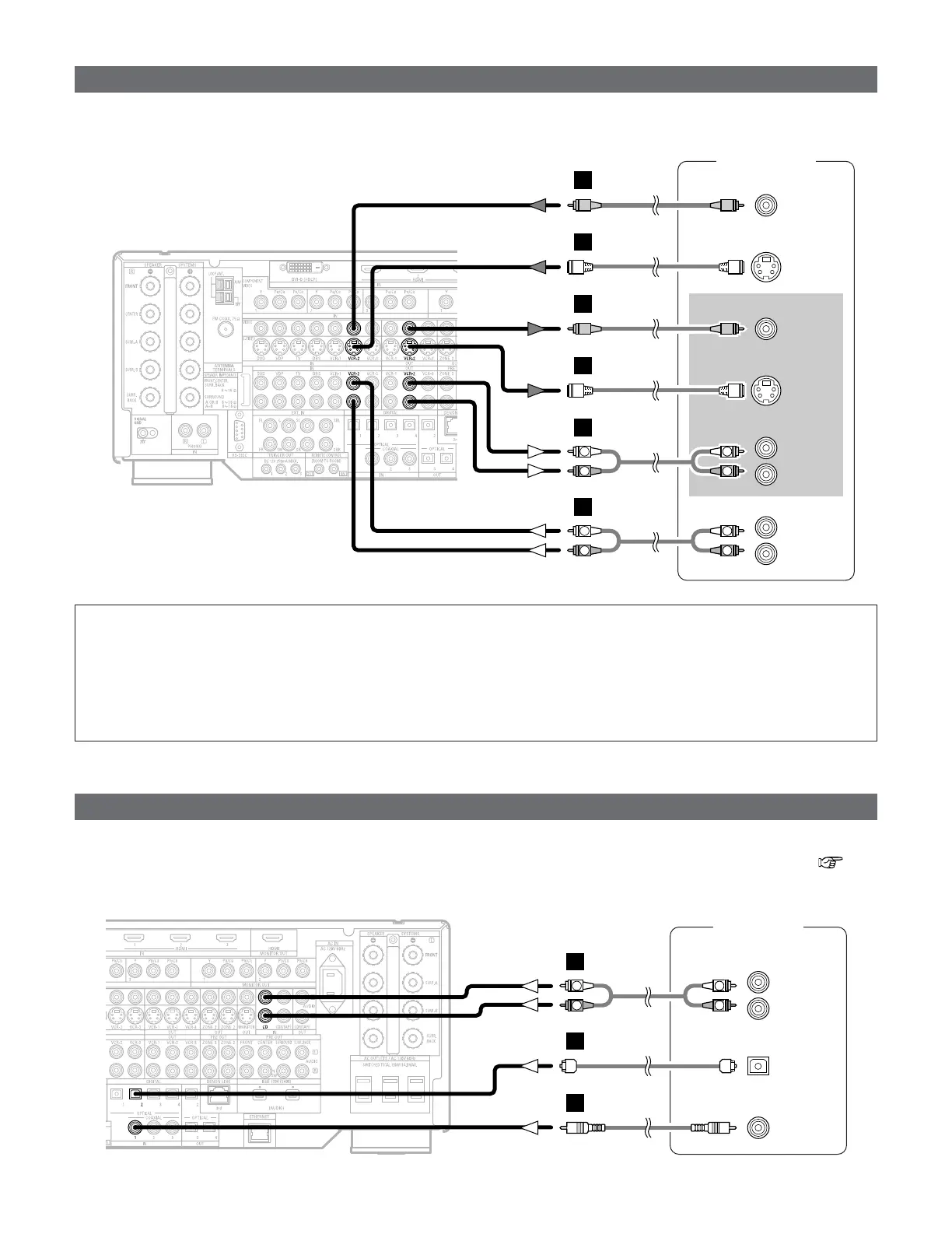

Connecting Other Souces
Connecting a CD player
R
L
AUDIO OUT
CD player
COAXIAL
OUT
OPTICAL
OUT
R
L
R
L
A
C
D
Connecting a VCR
Video deck
S VIDEO
IN
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
IN
S VIDEO
OUT
VIDEO
OUT
R
L
R
L
H
I
H
I
A
R
L
R
L
A
• There are three sets of video deck (VCR) terminals, so three video decks can be connected for simultaneous recording or video
copying.
•To connect the digital audio output from the CD player, you can choose from either the coaxial or optical connections. If you
choose to use the optical connection, it needs to be assigned. For more information about Digital Input Assignment ( page
89).
NOTE:
•When recording to VCR, it is necessary that the type of cable used with the playback source equipment be the same type
that is connected to the AVR-4806 VCR-1 (to 3) OUTPUT terminal.
Example: VCR-2 IN → S-Video cable : VCR-2 OUT→ S-Video cable
VCR-2 IN → Video cable : VCR-2 OUT→ Video cable
• Do not connect the output of the component connected to the OPTICAL 3 OUT terminal on the AVR-4806’s rear panel to
any terminal other than the OPTICAL 3 IN terminal.
