Connecting Other Souces

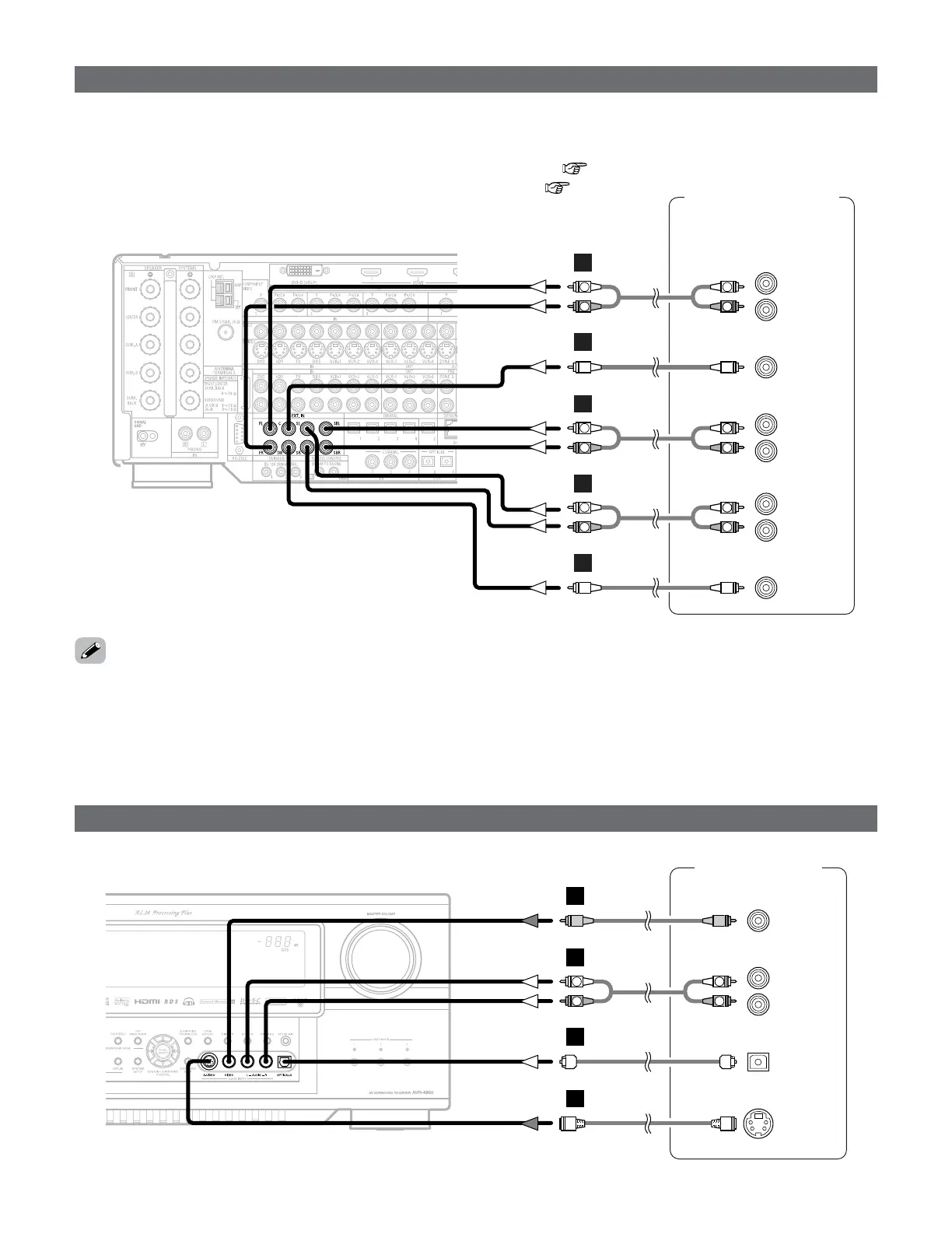

Connecting the external inputs (EXT. IN) terminals
DVD Audio-Video /
Super Audio CD Player /
External decoder
R
SURROUND
BACK
L
R
SURROUND
L
R
FRONT
L
7.1ch AUDIO OUT
CENTER
SUB-
WOOFER
L
R
L
R
R
L
R
L
B
A
B
A
R
L
R
L
A
These terminals are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of
multi-channel decoder, such as a DVD Audio player, or a multi-channel Super Audio CD player, or other future multi-channel
sound format decoder.
The method of video signal connection is the same as that for DVD player ( page 17).
For instructions on playback using the external input (EXT. IN) terminals ( page 44).
Playback using the DENON LINK connector Digital transfer and multi-channel playback of DVD audio discs and other multi-
channel sources is possible by connecting the AVR-4806 to a DENON DVD player equipped with a DENON LINK connector using
the connection cable included with the DVD player.
•With discs on which special copyright protection measures have been taken, however, the digital signals may not be output
from the DVD player. In this case, connect the DVD player’s analog multi-channel output to the AVR-4806’s EXT. IN terminals
for playback. Also refer to your DVD player’s operating instructions.
Connecting a video camera component or video game component
Video camera /
Video game
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
OPTICAL
OUT
R
L
R
L
H
I
A
D
