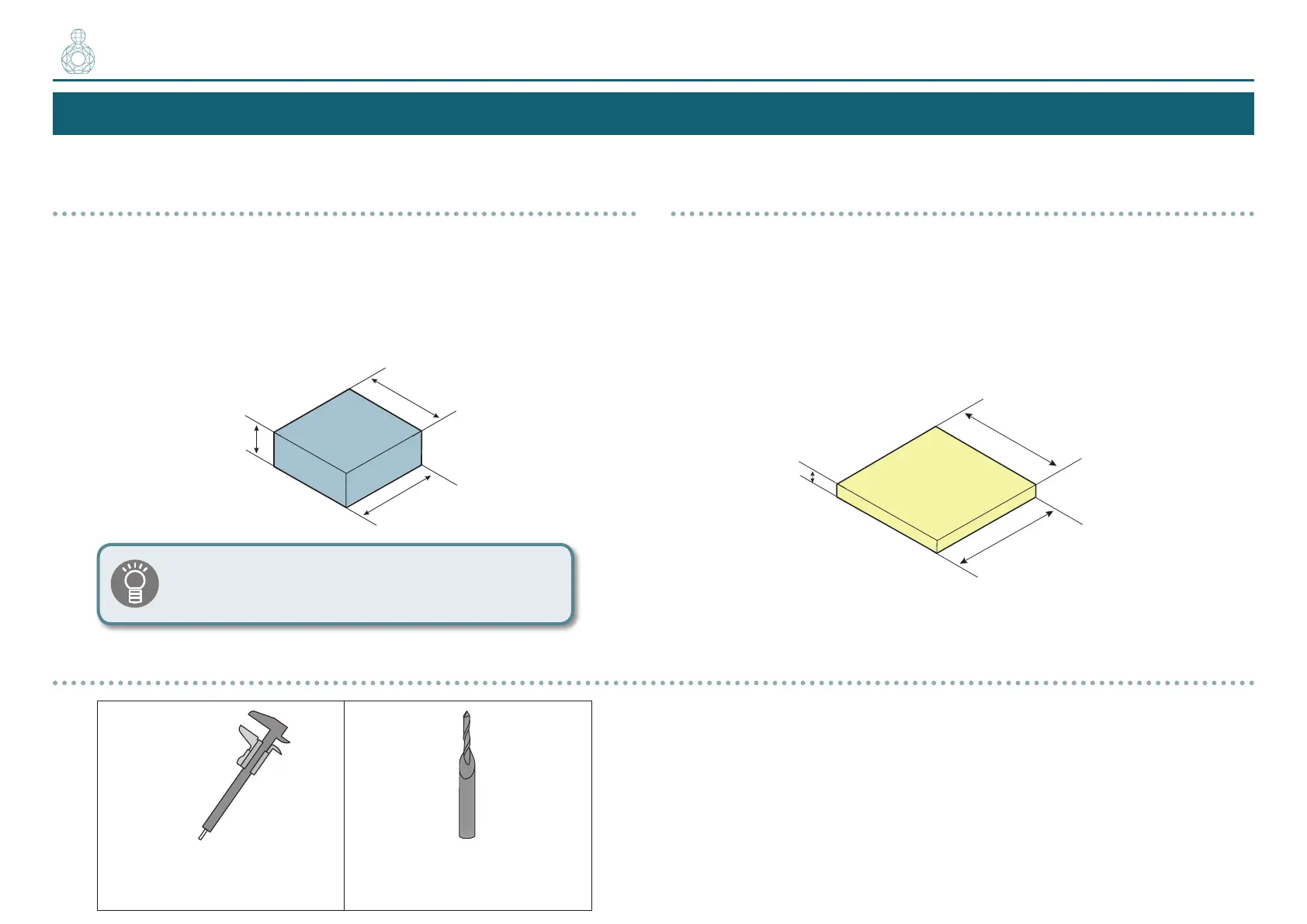

Items Necessary for Cutting
18
Items to Prepare Yourself
*The dimensions below are a reference size for the sample. This manual lists the values when a material and a scrap board with the following dimensions have been prepared.
Material
Make sure that the material is larger than the size specied in the data. At
the same time, taking into account the size of the scrap board that will be
used, make sure that the material is small enough to fall within the cutting
range of this machine. Too large a size could result in collision with moving
parts, possibly leading to the breakage of the material or jig or other failure.
"User’s Manual “Cutting Area”
100 mm
100 mm
30 mm
The data size can be set for the size of the material.
"“Set the Size of Cutting Data” (p. 71)
Scrap Board
A scrap board is a board that is placed under the material when cutting it so
that the table is not cut.
Ensure that the scrap board is larger than the material and is of a size that
can be axed to the table (150 x 200 mm). When performing double-sided
cutting using the positioning pins, the thickness of the scrap board must be
at least 6 mm.
"“Reversal process using positioning pins” (p. 52)
120 mm
10 mm
Others
Slide calipers
Cutting tool with a shank diameter
of 6 mm and with a tip diameter of
2 mm
To Next Page
