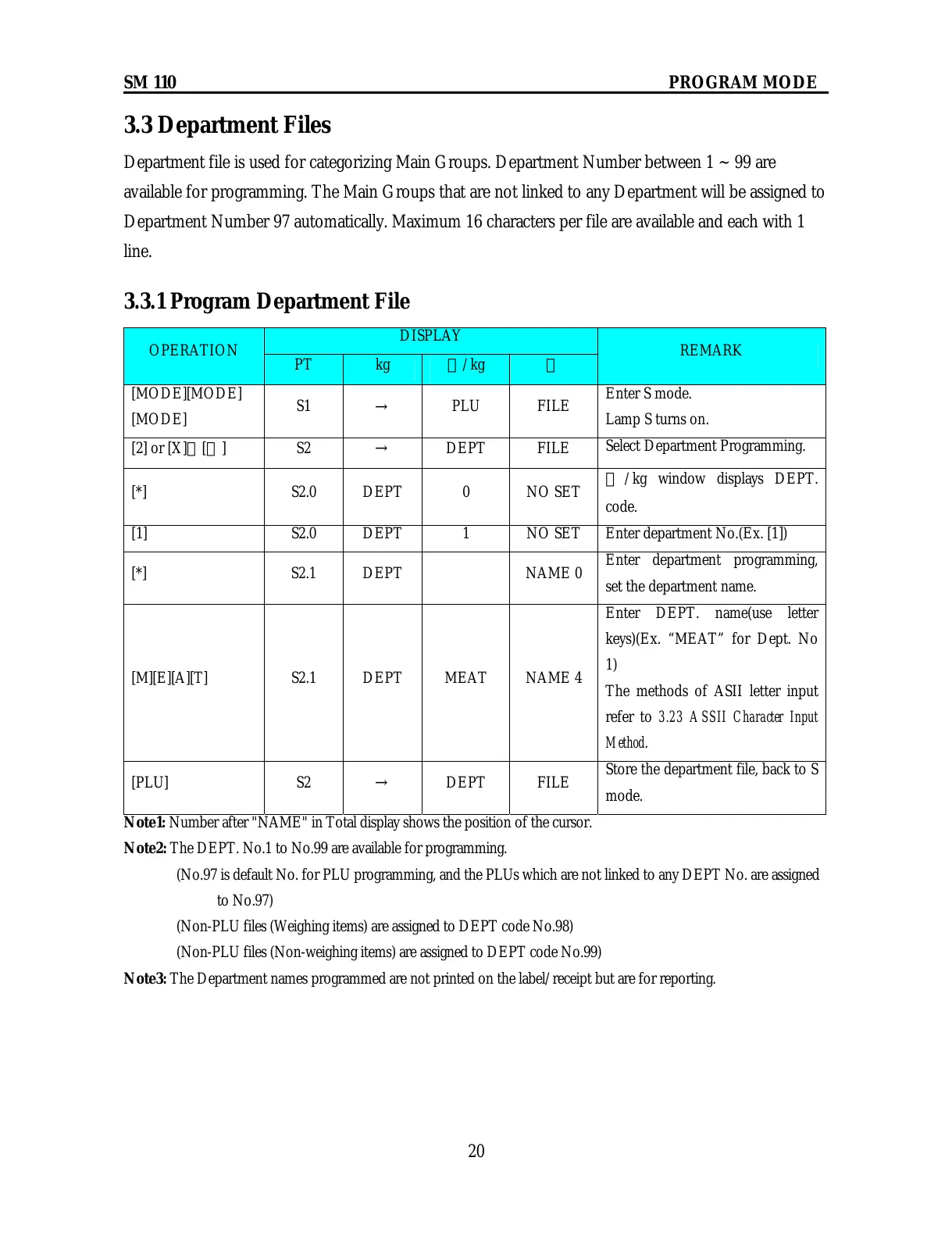

SM 110 PROGRAM MODE
20
3.3 Department Files
Department file is used for categorizing Main Groups. Department Number between 1 ~ 99 are
available for programming. The Main Groups that are not linked to any Department will be assigned to
Department Number 97 automatically. Maximum 16 characters per file are available and each with 1
line.
3.3.1 Program Department File
DISPLAY
OPERATION
PT kg
＄/kg ＄
REMARK
[MODE][MODE]
[MODE]
S1
→
PLU FILE
Enter S mode.
Lamp S turns on.
[2] or [X]、[︾]
S2
→
DEPT FILE
Select Department Programming.
[*] S2.0 DEPT 0 NO SET
＄ /kg window displays DEPT.
code.
[1] S2.0 DEPT 1 NO SET Enter department No.(Ex. [1])
[*] S2.1 DEPT NAME 0
Enter department programming,
set the department name.
[M][E][A][T] S2.1 DEPT MEAT NAME 4
Enter DEPT. name(use letter
keys)(Ex. “MEAT” for Dept. No
1)
The methods of ASII letter input
refer to 3.23 ASSII Character Input
Method.
[PLU] S2
→
DEPT FILE
Store the department file, back to S
mode.
Note1: Number after "NAME" in Total display shows the position of the cursor.
Note2: The DEPT. No.1 to No.99 are available for programming.
(No.97 is default No. for PLU programming, and the PLUs which are not linked to any DEPT No. are assigned
to No.97)
(Non-PLU files (Weighing items) are assigned to DEPT code No.98)
(Non-PLU files (Non-weighing items) are assigned to DEPT code No.99)
Note3: The Department names programmed are not printed on the label/receipt but are for reporting.
